Installation Procedure
- Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
- Install the window side reveal moldings to the vehicle. Refer to Windshield Side Reveal Molding Replacement .

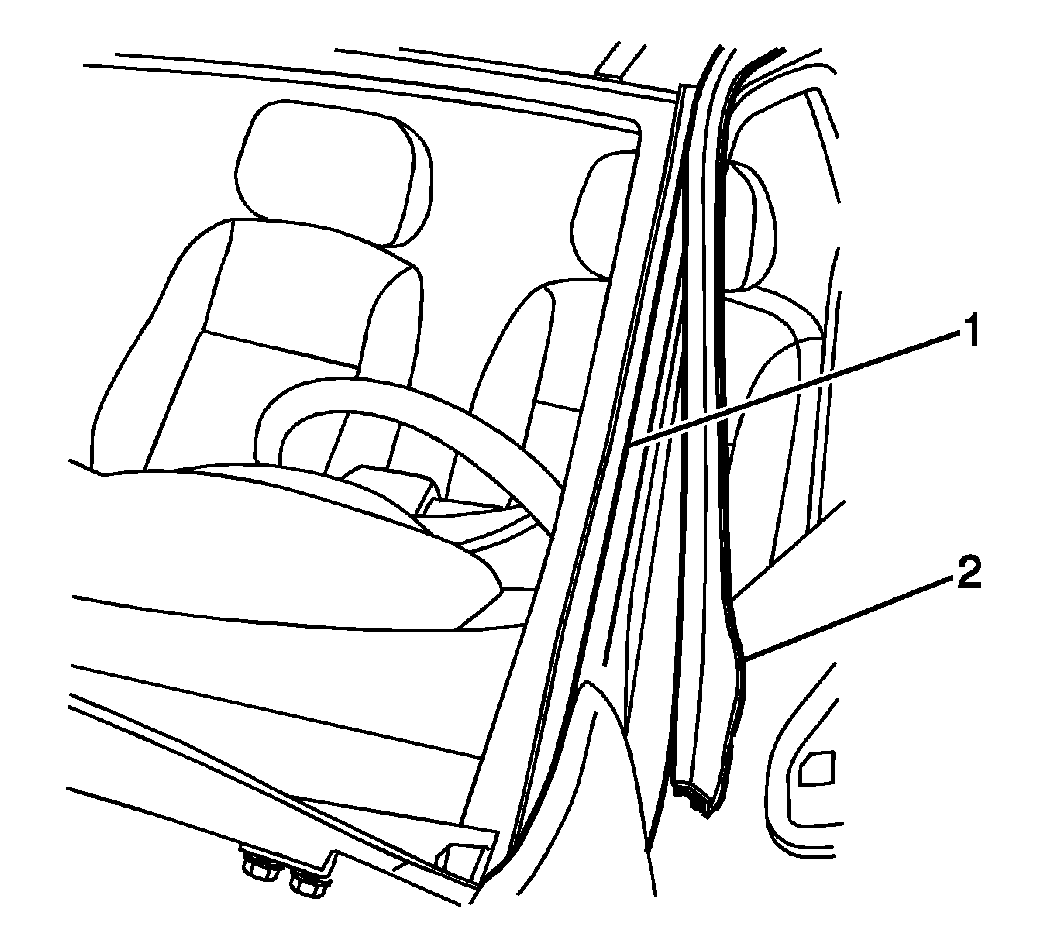

- Reposition the auxiliary weatherstrip (2) to the pinch-weld flange.
- Install the cowl air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
- Install the window wiper arms. Refer to Wiper Arm Replacement in Wipers/Washer Systems.
- Install the antenna mast. Refer to Fixed Antenna Mast Replacement in Entertainment.
- Install the inside rear view mirror. Refer to Rearview Mirror Replacement .
- Close the hood.
- Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
