Ascender LS, 4.2 S, RWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Power Window Schematics
Power Window Schematics

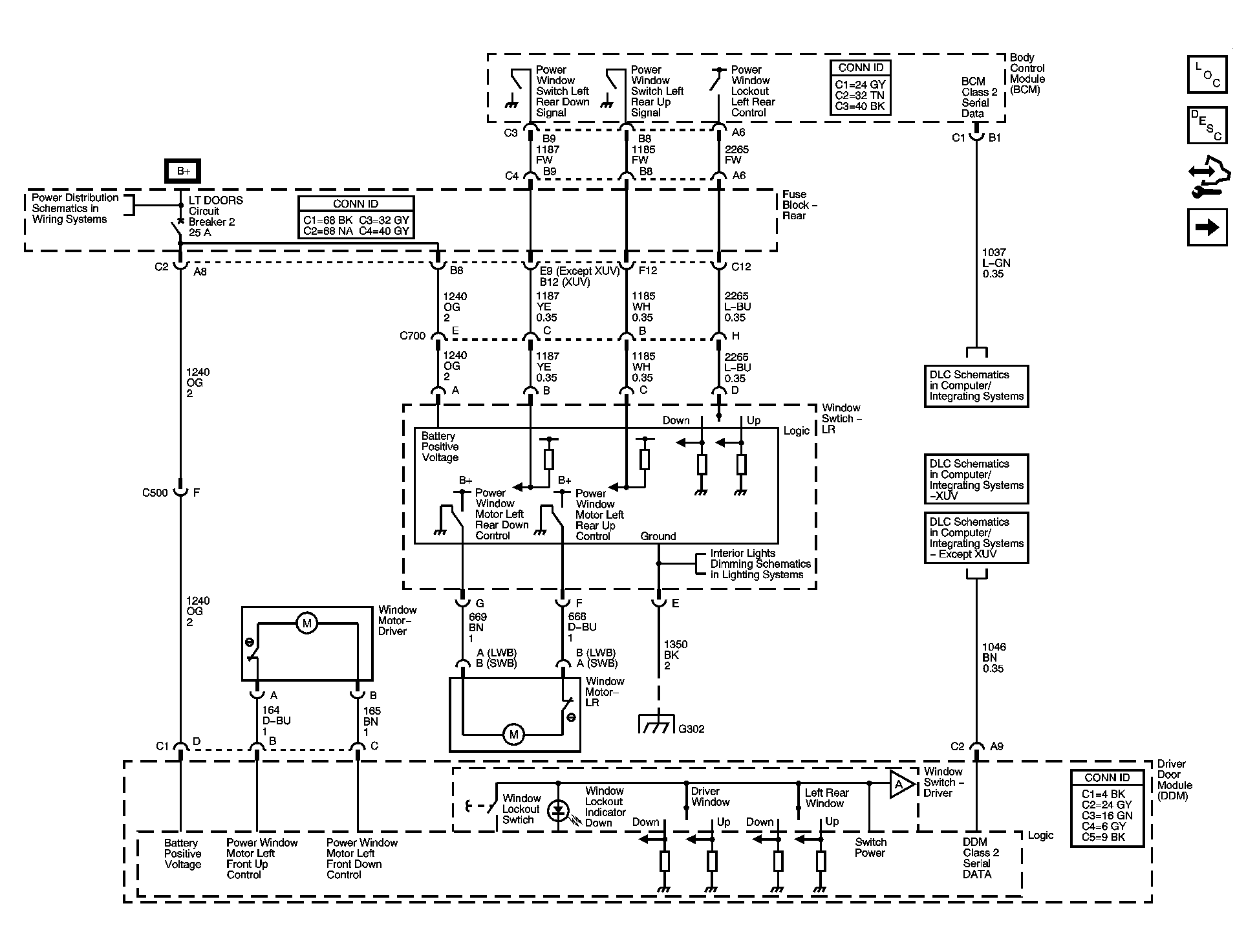

Fig 1: Power Windows - Left Schematics
Courtesy of GENERAL MOTORS CORP.

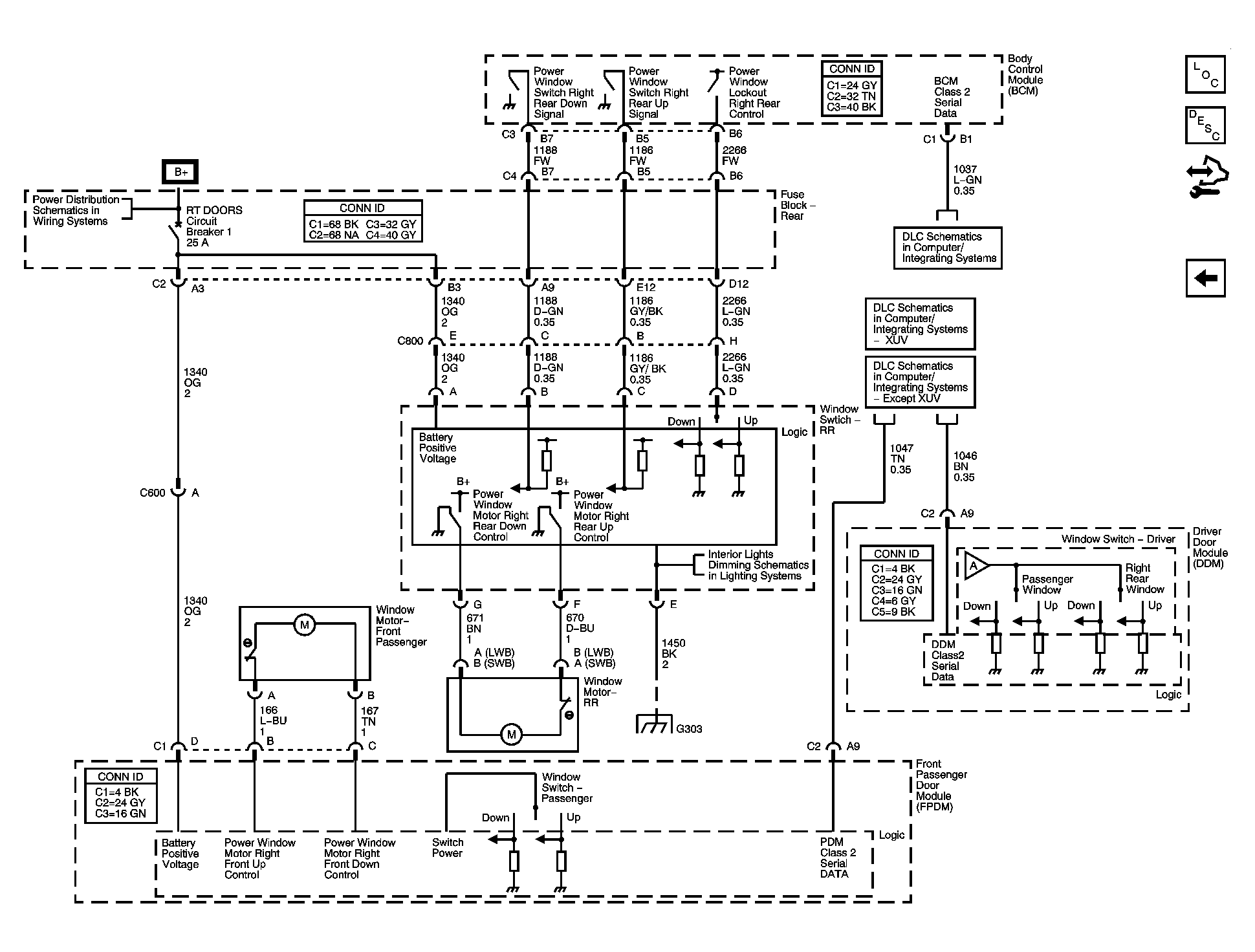

Fig 2: Power Windows - Right Schematics
Courtesy of GENERAL MOTORS CORP.
