Transmission Valve Body Assembly: Reassembly

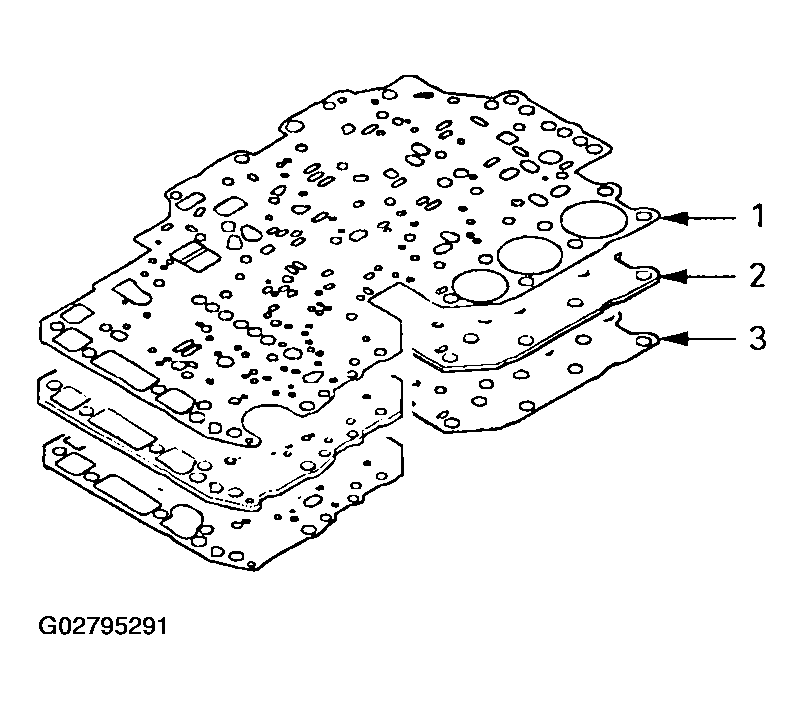

Position a new No. 1 gasket (1) on upper valve body.
Align the No. 1 gasket at each bolt hole.
Position valve body plate (2) on No. 1 gasket (1).
Align the plate at each bolt hole.
Position a new No. 2 gasket (3) on valve body plate (2).
Align the No. 2 gasket at each bolt hole.

Fig 1: Positioning Gaskets On Body Plate
Courtesy of ISUZU MOTOR CO.

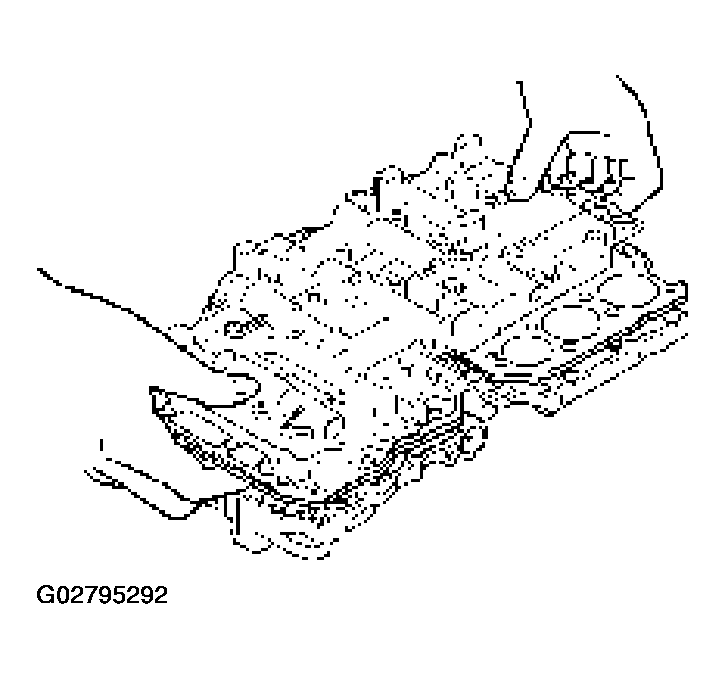

Place upper valve body with plate and gaskets on top of lower valve body.
Align each bolt hole and gasket in the valve body.

Fig 2: Placing Upper Valve Body With Plate And Gaskets On Top Of Lower Valve Body
Courtesy of ISUZU MOTOR CO.
Install the pressure control solenoid and clamp.

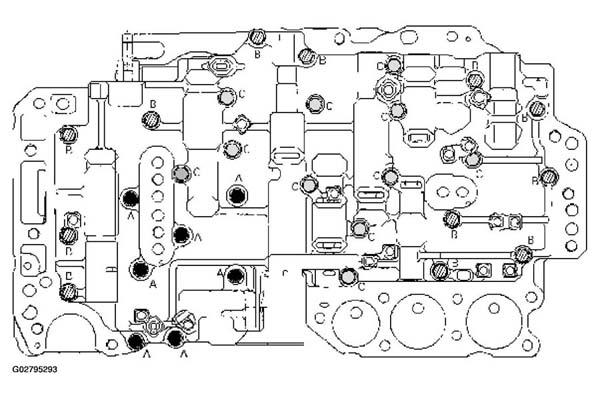

Install thirty bolts to upper valve body. Each bolt is indicated in the figure.

LENGTH QUANTITY

Torque: 6.4 N.m (57 lb in)

Fig 3: Installing Bolts To Upper Valve Body

Courtesy of ISUZU MOTOR CO.

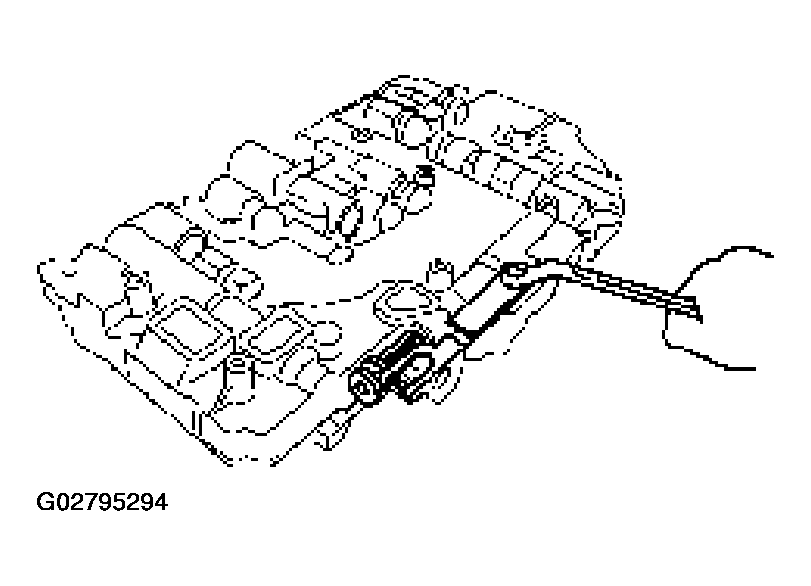

Install manual shift valve.
Install detent spring.
Torque: 10 N.m (87 lb in)

Fig 4: Installing Detent Spring
Courtesy of ISUZU MOTOR CO.
