Oil Pump: Reassembly

Place the oil pump body on the torque converter.
Coat the driven gear and drive gear with ATF.
Install the driven gear and drive gear.

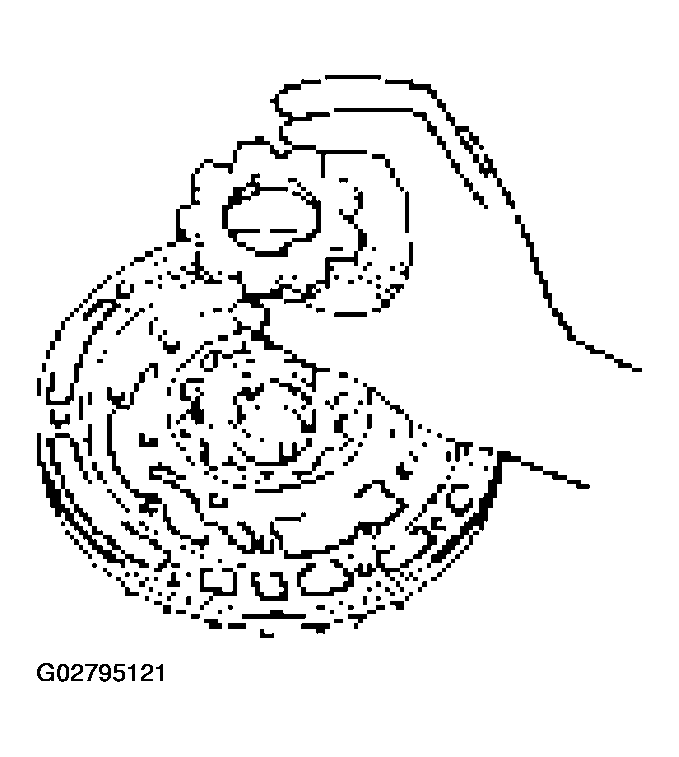

Fig 1: Installing Driven Gear And Drive Gear
Courtesy of ISUZU MOTOR CO.
Align the stator shaft with the bolt holes.
Tighten the thirteen bolts.

Torque: 10 N.m (87 lb in)

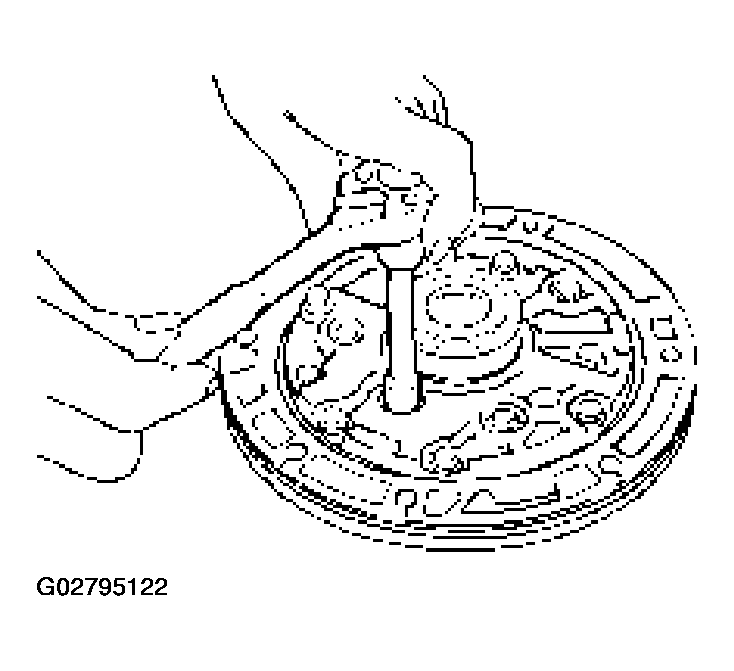

Fig 2: Tightening Bolts
Courtesy of ISUZU MOTOR CO.
Install the oil seal ring.
- Coat the oil seal rings with ATF.
- Contract the oil seal rings as shown, and install them onto the stator shaft.
NOTE: Do not spread the ring ends too much.

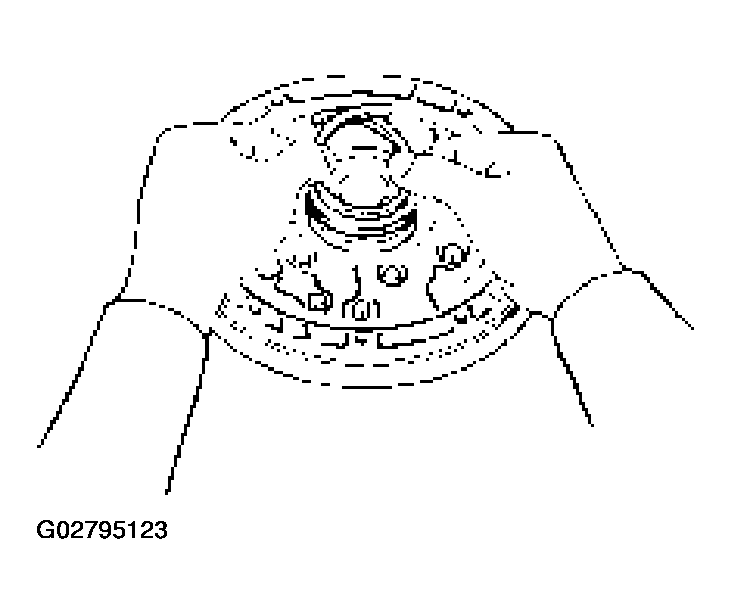

Fig 3: Installing Oil Seal Rings
Courtesy of ISUZU MOTOR CO.

Coat a new o-ring with ATF and install it to the oil pump body.

O-ring size (Reference)

O-RING SIZE

Inside diameter	204.9 mm (8.067 in)
Thickness	3.5 mm (0.138 in)

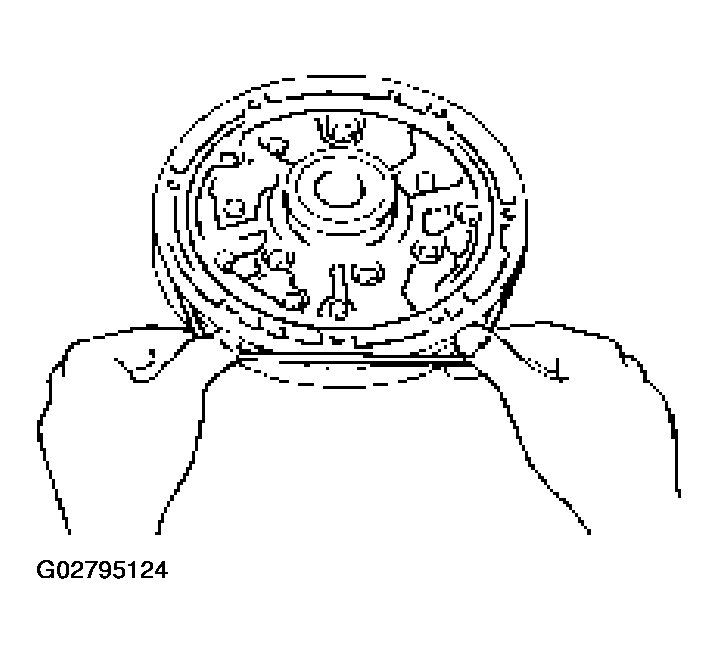

Fig 4: Installing O-Ring To Oil Pump Body

Courtesy of ISUZU MOTOR CO.

check oil pump drive gear rotation.
Make sure the drive gear rotates smoothly when installed to the torque converter.

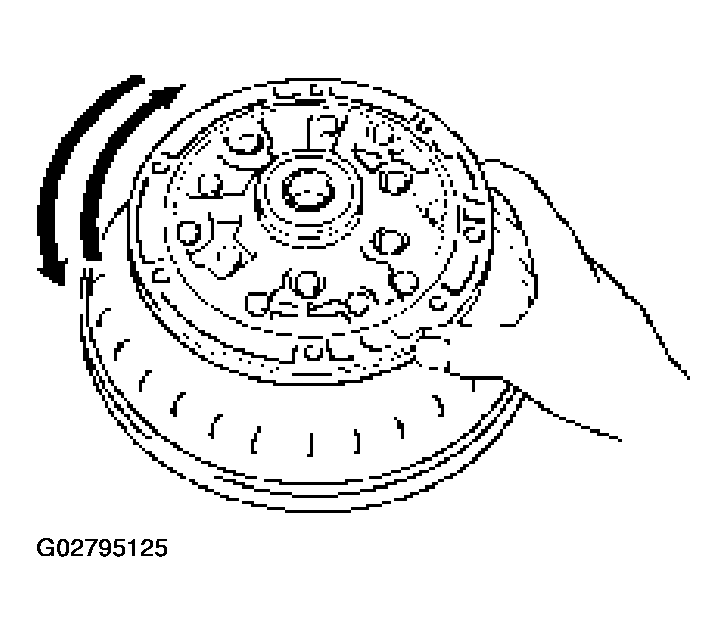

Fig 5: Checking Oil Pump Drive Gear Rotation
Courtesy of ISUZU MOTOR CO.
