Neutral Start Switch (Mode Switch): Installation

To install, follow the removal steps in the reverse order, noting the following points;

If a engine starts at any selector position except "N" or "P", the neutral start switch (mode switch) should be adjusted.

1. Loosen the neutral start switch bolt and set the shift selector to the "N" range.
2. Align the groove and neutral basic line.
3. Hold in position and tighten the bolt and nut.

   Torque:

   Nut - 7 N.m (61 lb in)

   Bolt - 13 N.m (113 lb in)

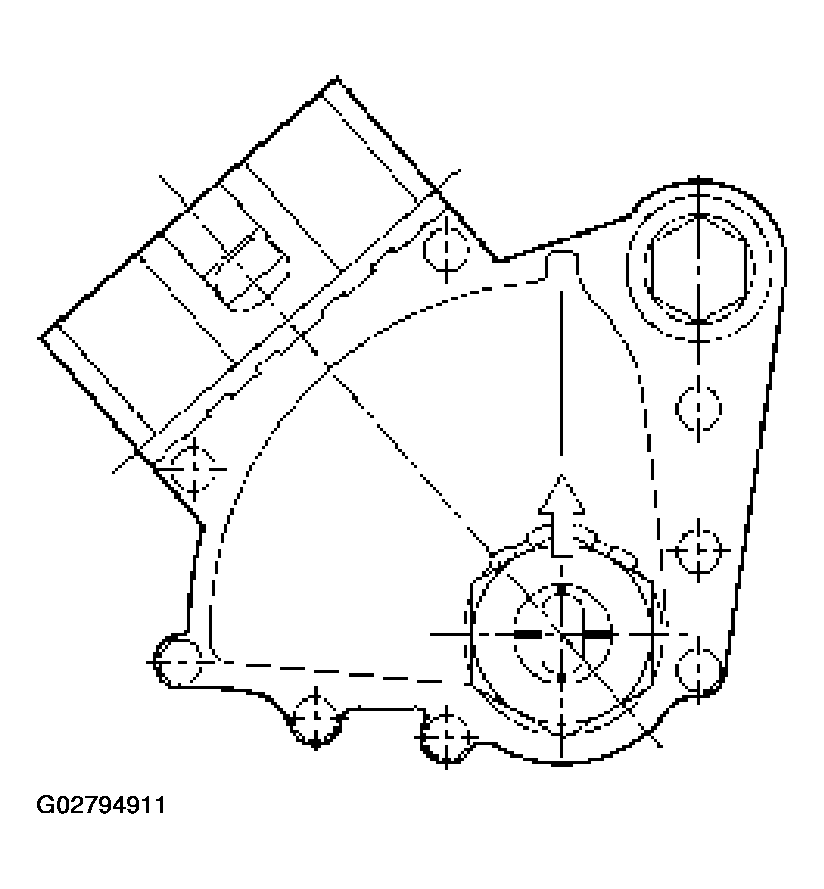

4. Lock the nut with the lock washer tubs at two points.
   Fig 1: Locking Nut With Lock Washer Tubs

   Courtesy of ISUZU MOTOR CO.
