Torque Specifications

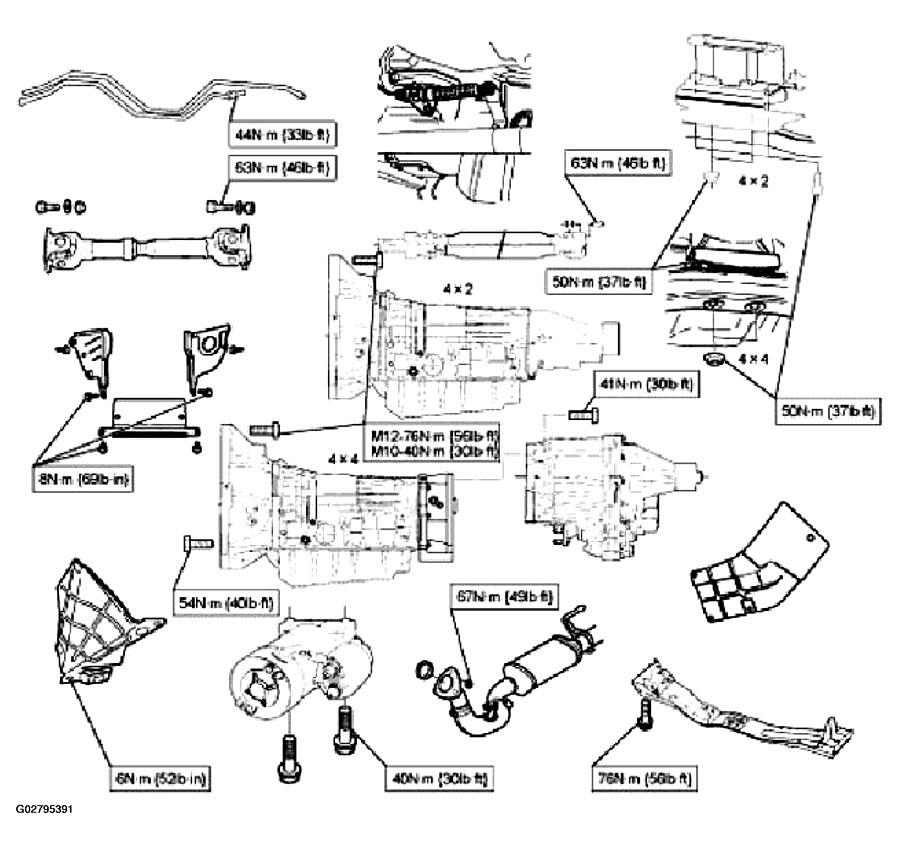

Fig 1: Torque Specifications Table (1 Of 3)

G02795391

Courtesy of ISUZU MOTOR CO.

N.m (lb ft)

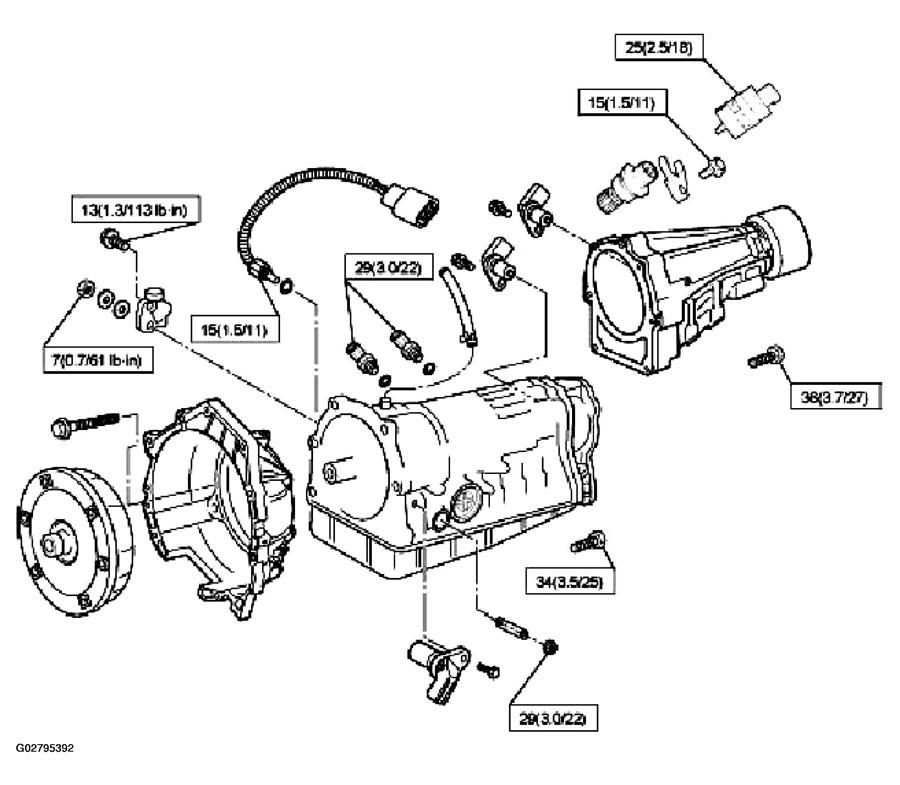

Fig 2: Torque Specifications Table (2 Of 3)

G02795392

Courtesy of ISUZU MOTOR CO.

N.m (lb ft)

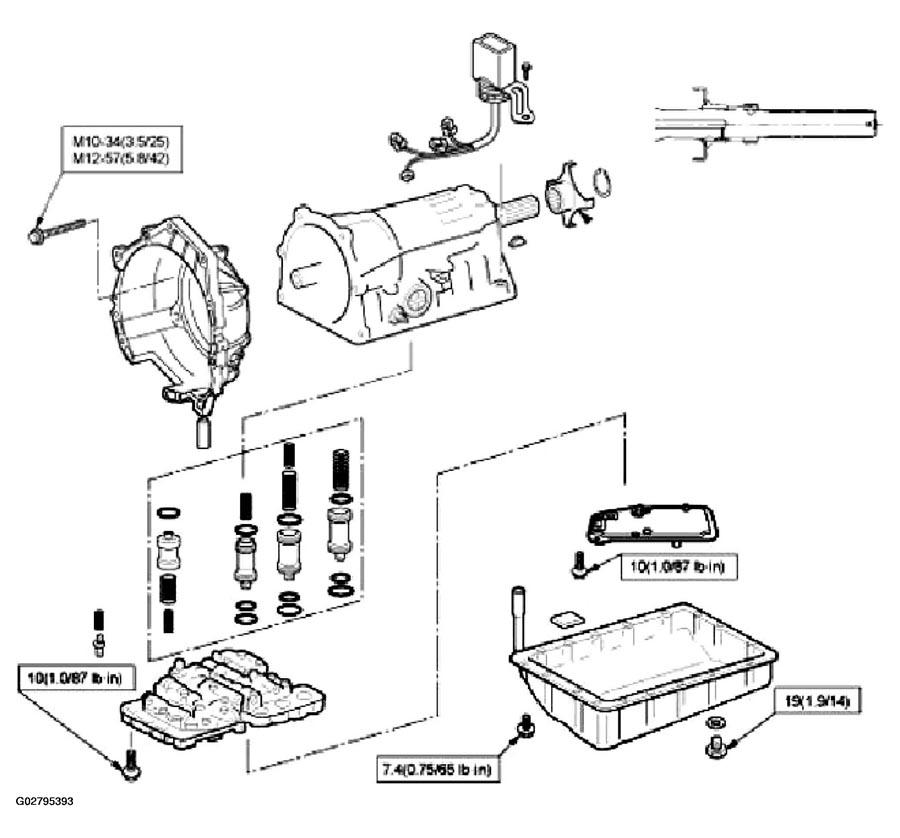

Fig 3: Torque Specifications Table (3 Of 3)

G02795393

Courtesy of ISUZU MOTOR CO.
