Front Planetary Gear: Reassembly

Coat the race and thrust bearing with petroleum jelly.

Install the race and bearing to the rear side of the front planetary gear.

Race and bearing diameter (Reference)

BEARING RACE DIAMETER

Inside		Outside
Bearing	35.5 mm (1.40 in)	47.7 mm (1.88 in)
Race	33.7 mm (1.33 in)	47.6 mm (1.87 in)

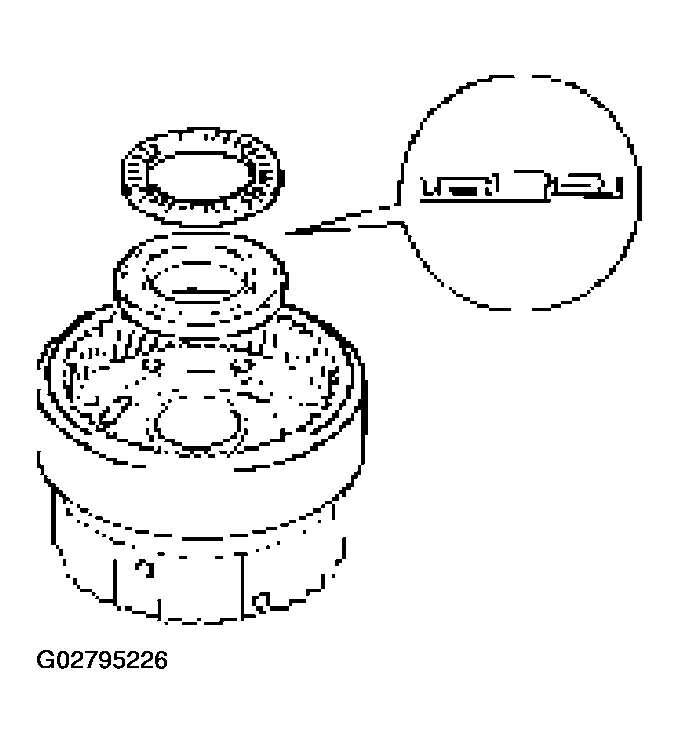

Fig 1: Installing Race And Thrust Bearing To Rear Side Of Front Planetary Gear

Courtesy of ISUZU MOTOR CO.

Turn over the planetary gear and install the race (metal).

Make sure that the lugs fit into the holes on the front planetary gear.

Race diameter (Reference)

RACE DIAMETER

Inside		Outside
Race	34.3 mm (1.35 in)	47.8 mm (1.88 in)

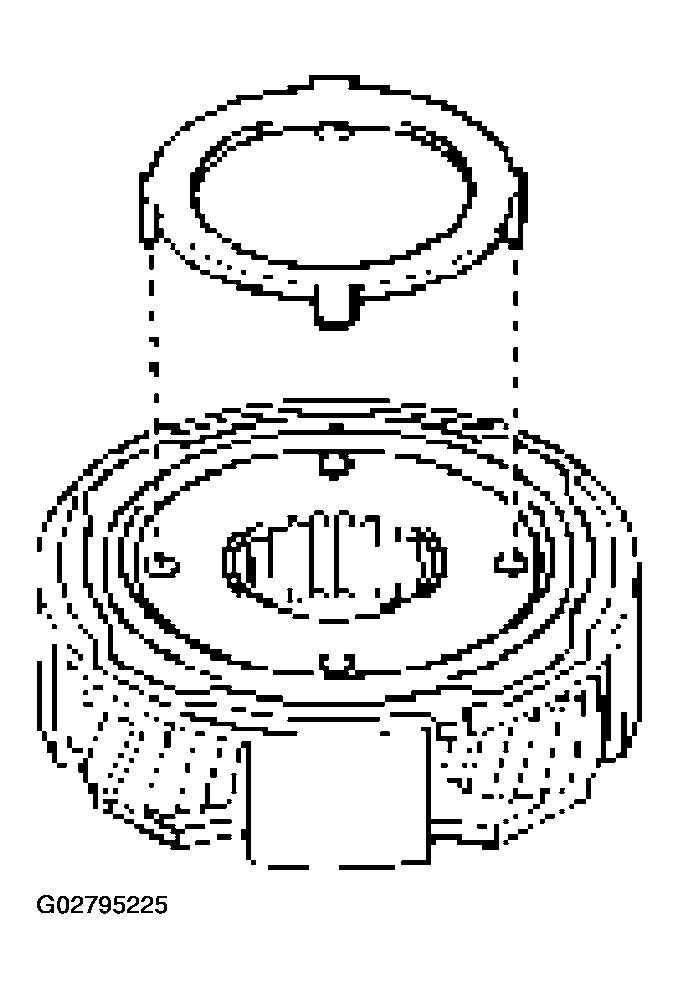

Fig 2: Installing Race (Metal)

Courtesy of ISUZU MOTOR CO.

Coat the race and thrust bearing with petroleum jelly.

Install the race and bearing onto the rear side of the front planetary ring gear.

Race and bearing diameter (Reference)

RACE DIAMETER

Inside		Outside
Race	35.2 mm (1.39 in)	53.63 mm (2.11 in)
Bearing	35.2 mm (1.39 in)	53.63 mm (2.11 in)

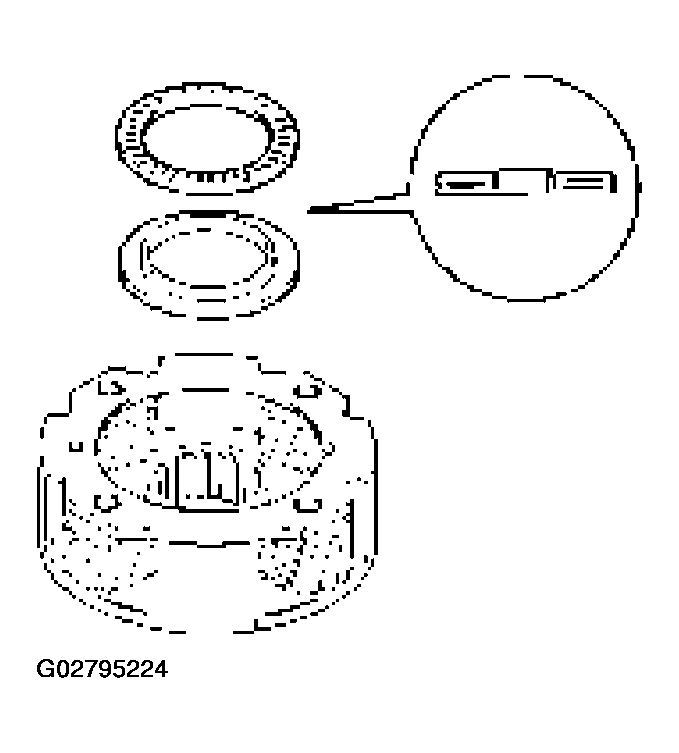

Fig 3: Installing Race And Bearing Onto Rear Side Of Front Planetary Ring Gear

Courtesy of ISUZU MOTOR CO.

Turn over the planetary ring gear and install the race onto the front side of the front planetary ring gear.

Race diameter (Reference)

RACE DIAMETER

Inside		Outside
Race	26.8 mm (1.06 in)	47.0 mm (1.85 in)

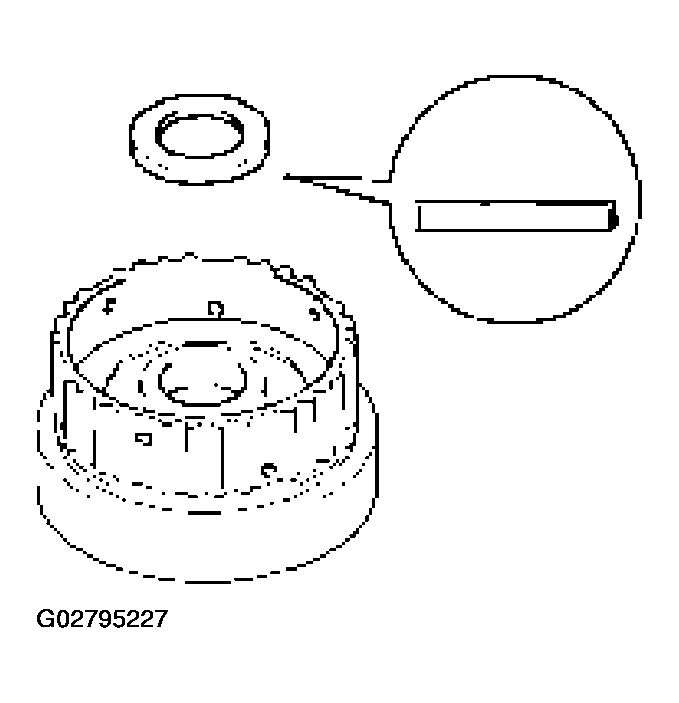

Fig 4: Installing Race Onto Front Side Of Front Planetary Ring Gear

Courtesy of ISUZU MOTOR CO.
