Map Light Bulb: Removal

WARNING: This page is about a different car, the 2004 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the lens (2).
  3. Remove the bulb (1).
    • Pull out the bulb.

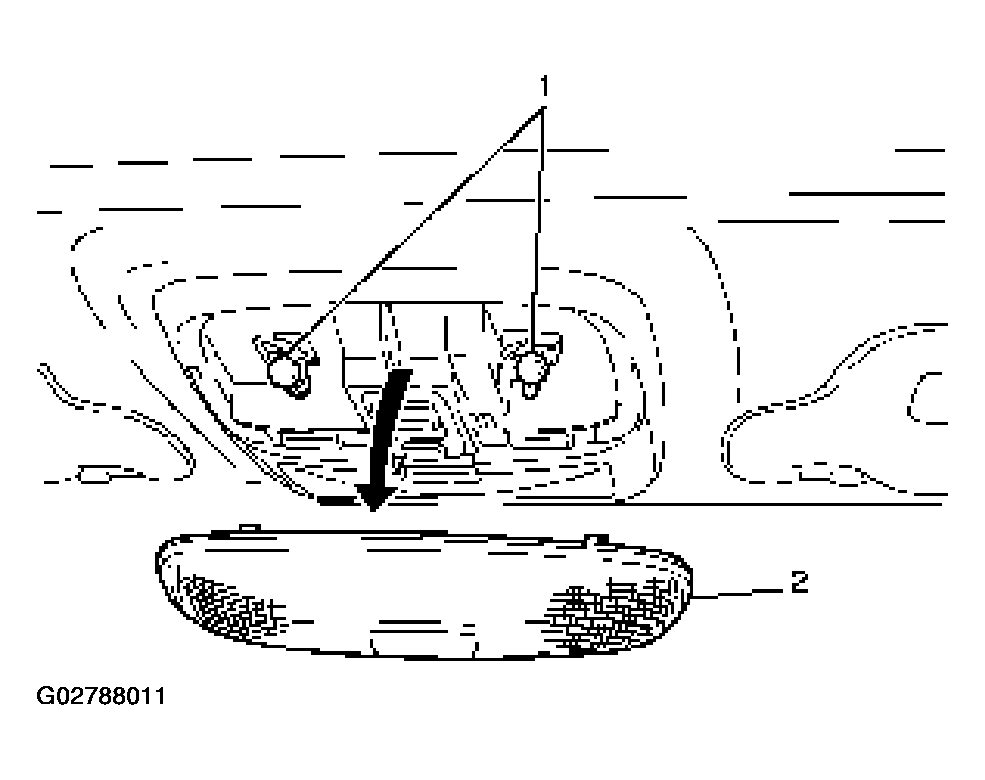

    Fig 1: Removing Map Light Bulb
    G02788011Courtesy of ISUZU MOTOR CO.
