High Mounted Stoplight Assembly: Removal

WARNING: This page is about a different car, the 2004 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the high mounted stoplight assembly (1).
    • Remove the cover (2).
    • Remove two screws.
    • Disconnect the connector.

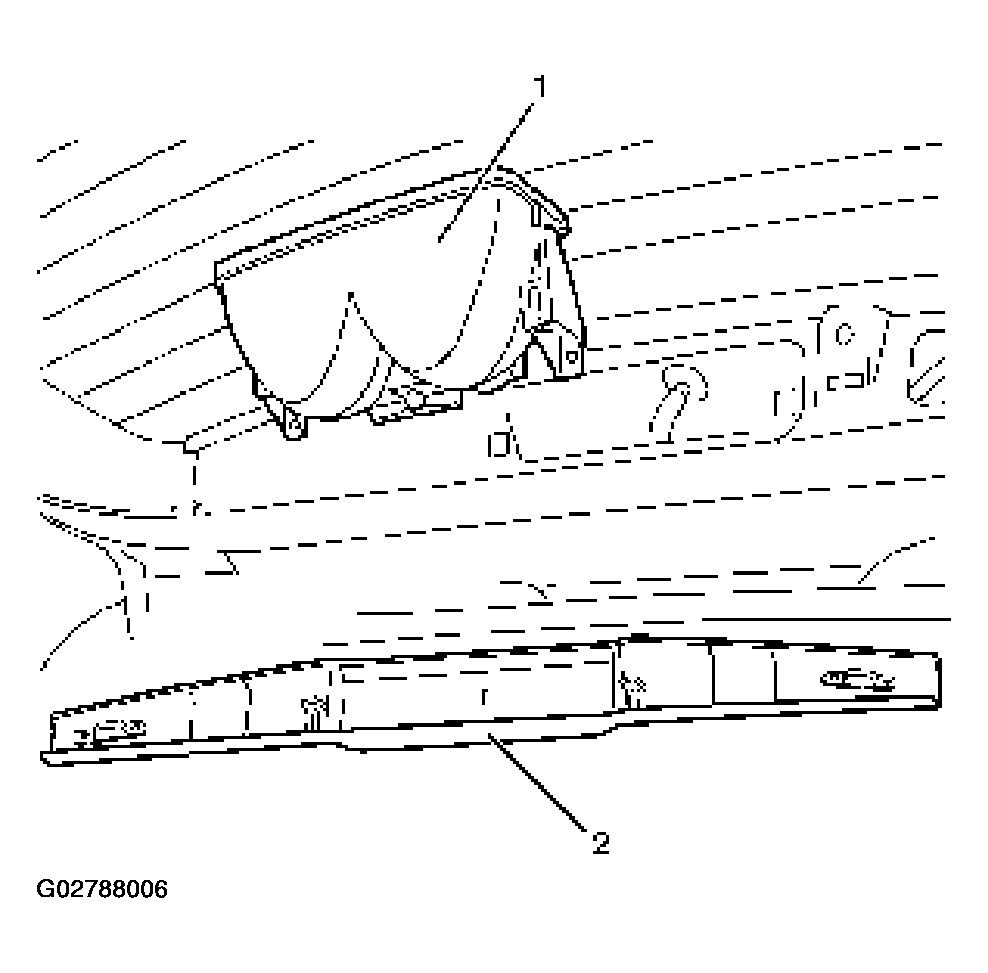

    Fig 1: Removing High Mounted Stoplight Assembly
    G02788006Courtesy of ISUZU MOTOR CO.
