Headlight Assembly: Removal

WARNING: This page is about a different car, the 2004 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the front combination light (2).
    • Remove the screw.
    • Disconnect the connector.
  3. Remove the headlight assembly (1).
    • Disconnect the connector.
    • Remove four screws.

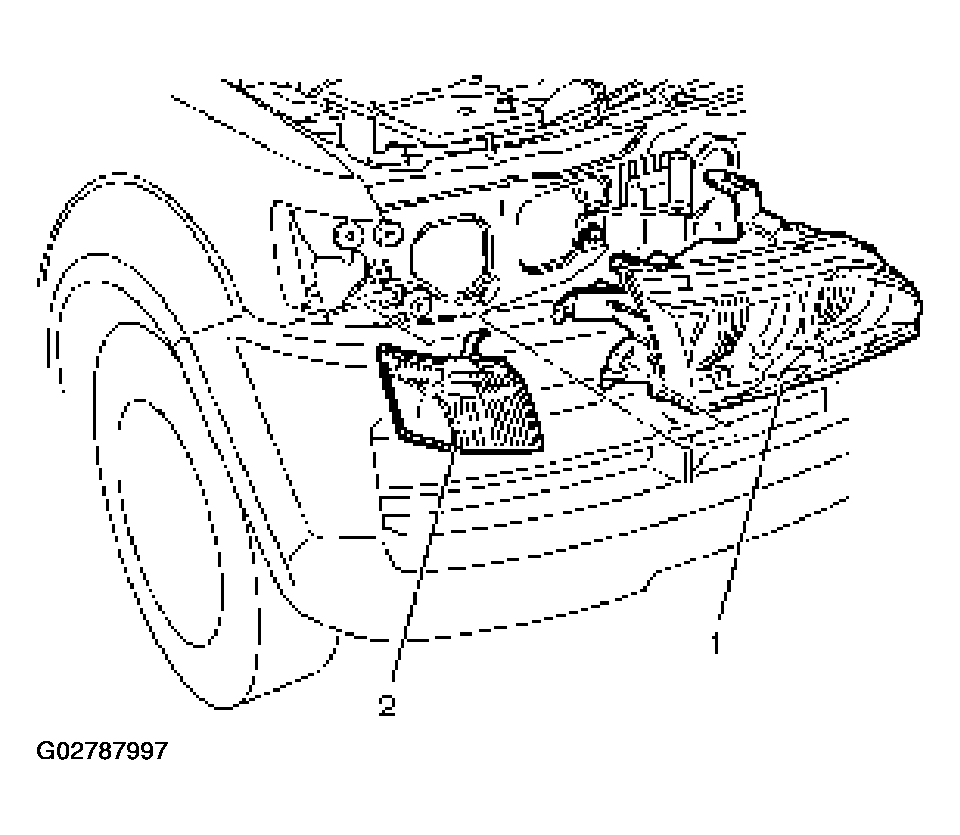

    Fig 1: Removing Headlight Assembly
    G02787997Courtesy of ISUZU MOTOR CO.
