Backup Light Bulb: Removal

WARNING: This page is about a different car, the 2004 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the rear combination light assembly.
  3. Remove the bulb (1).
    • Remove the backup light socket by turning it counterclockwise.
    • Pull out the bulb from the socket.

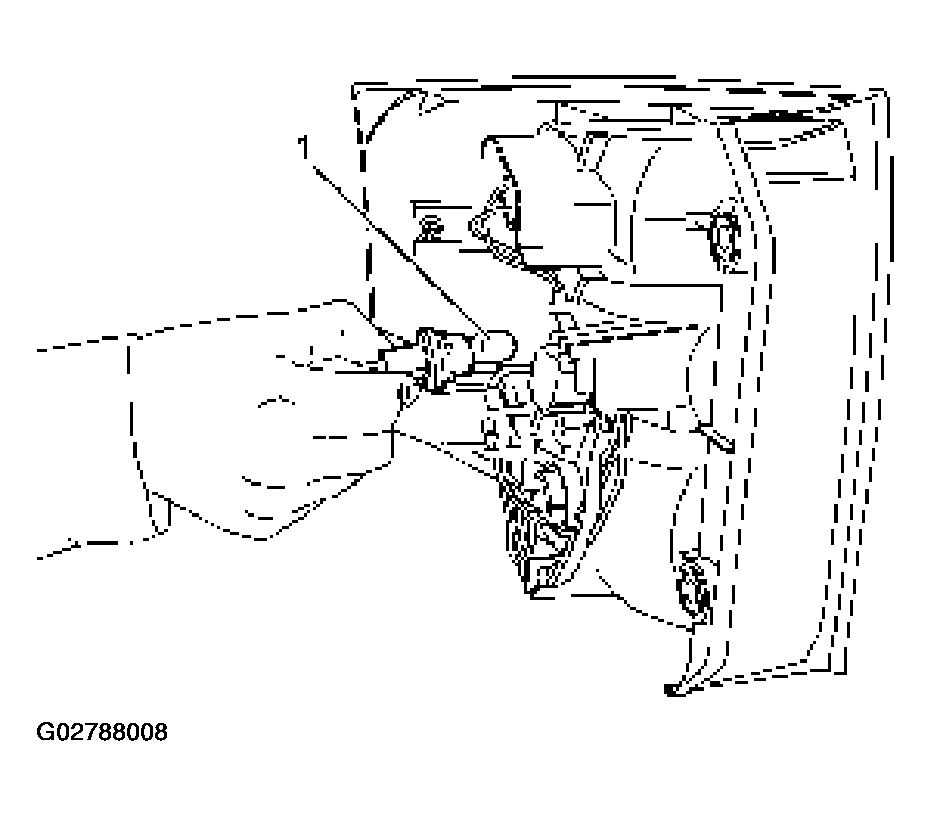

    Fig 1: Removing Backup Light Bulb
    G02788008Courtesy of ISUZU MOTOR CO.
