Illumination Controller: Removal

WARNING: This page is about a different car, the 2003 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the meter cluster panel cover assembly (2).
  3. Remove the illumination controller (1).
    • Disconnect the controller connector.
    • Remove the controller knob (4).
    • Remove the nut (3).
    • Remove the controller from the back side of the meter cluster panel assembly.

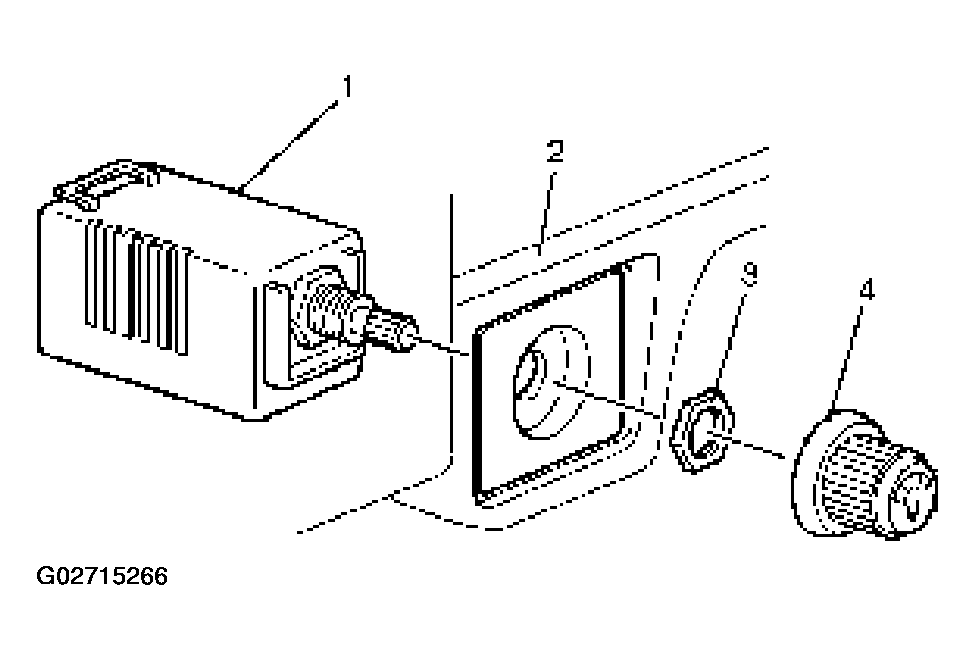

    Fig 1: Removing Illumination Controller
    G02715266Courtesy of ISUZU MOTOR CO.
