Headlight Assembly: Removal
WARNING: This page is about a different car, the 2003 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable.

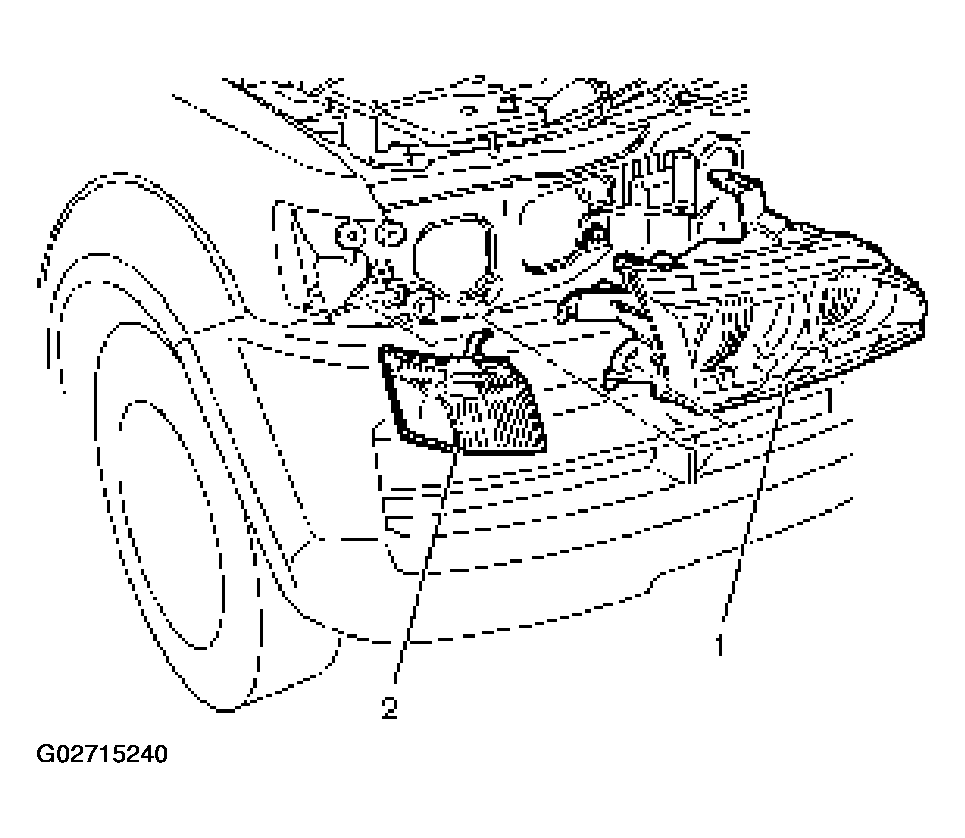

- Remove the front combination light (2).
- Remove the screw.
- Disconnect the connector.
- Remove the headlight assembly (1).
- Disconnect the connector.
- Remove four screws.
Courtesy of ISUZU MOTOR CO.
