Front Door Switch: Removal

WARNING: This page is about a different car, the 2003 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the door switch (2).
    • Remove the screw (3).
    • Disconnect the connector (1).

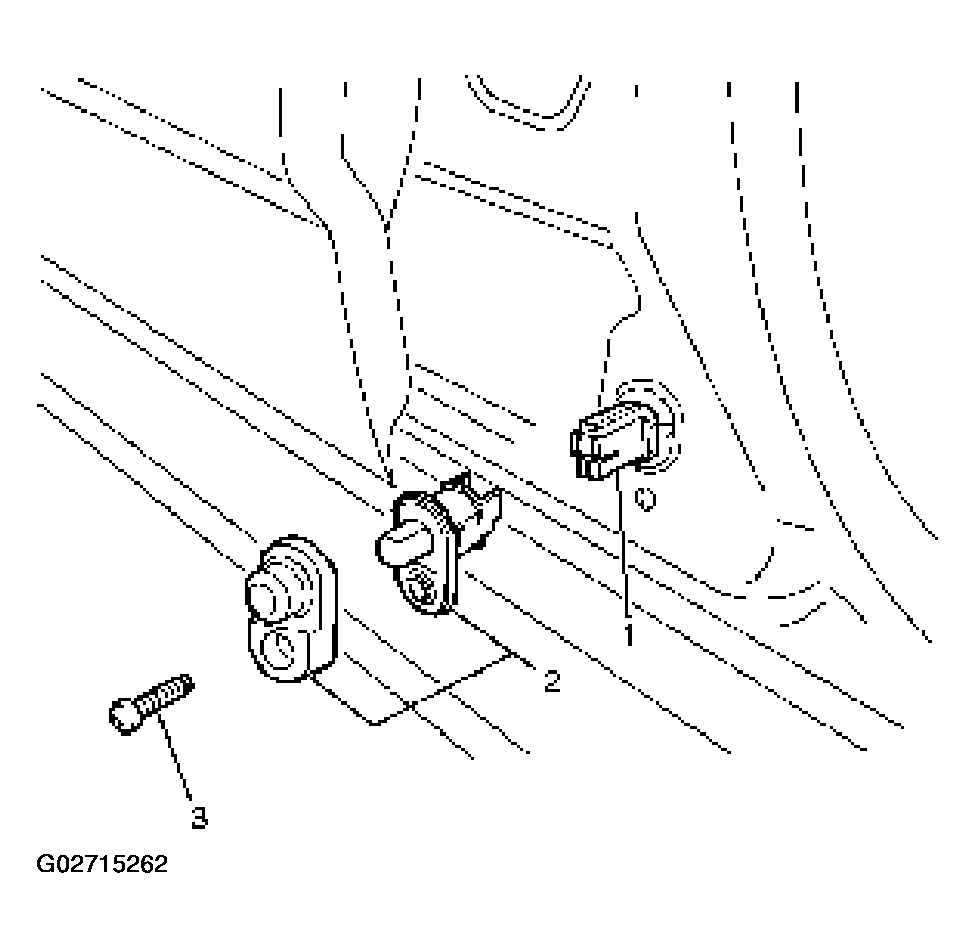

    Fig 1: Removing Front Door Switch
    G02715262Courtesy of ISUZU MOTOR CO.
