Isuzu
>>
2004
>>
Rodeo 3.5 Y, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System (6VE1-Di 3.5L)
>>
Main Data and Specifications
>>
Torque Specifications
Torque Specifications

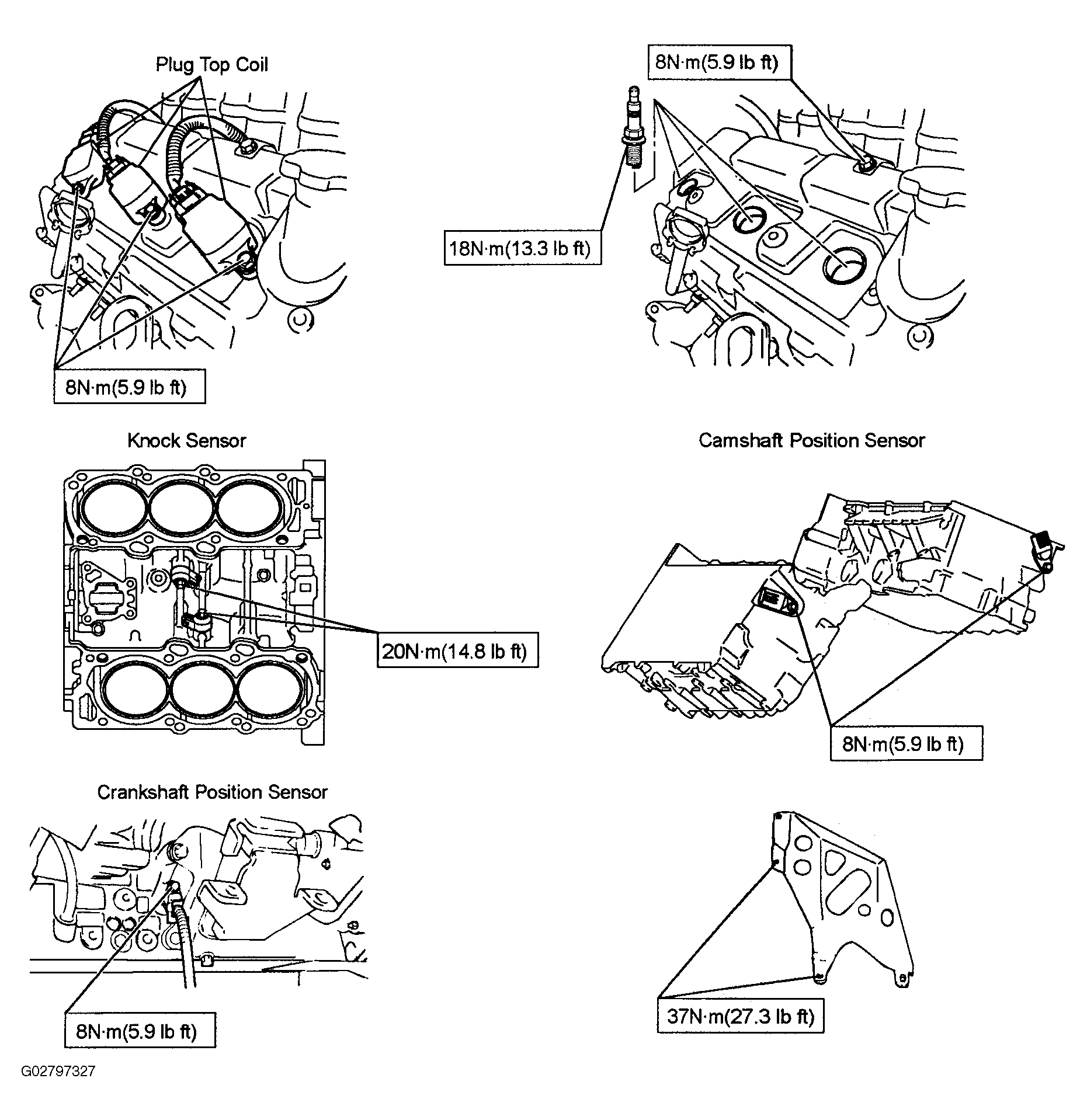

Fig 1: Ignition System Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
