Power Steering Unit Disassembled View

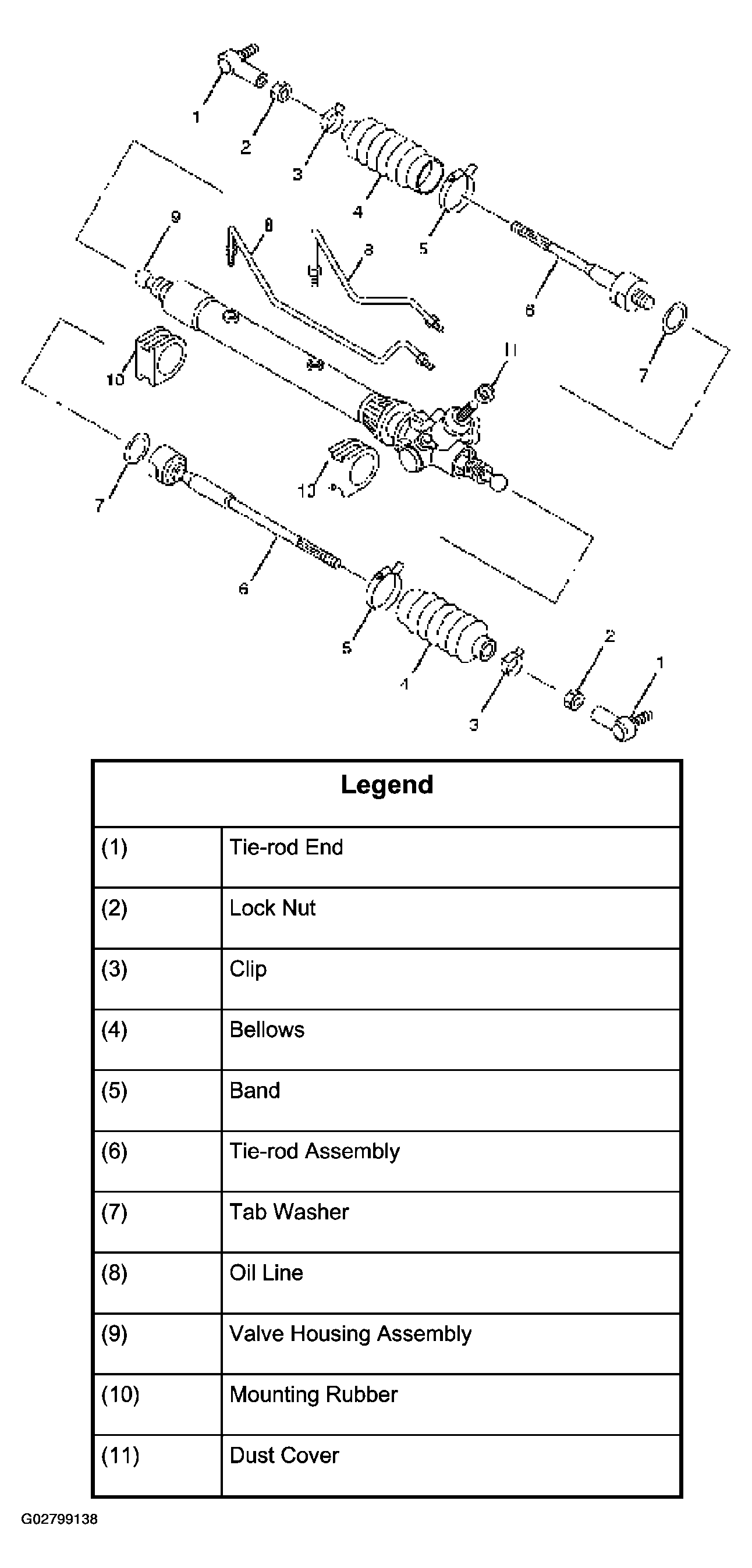

Fig 1: Disassembled View Of Power Steering Unit

G02799138

Courtesy of ISUZU MOTOR CO.
