4X4 model:

  1. Remove the torsion bar. Refer to FRONT SUSPENSION .
  2. Remove the lower control arm bolt (Frame side). Refer to FRONT SUSPENSION .
  3. Apply a setting mark across the crossmember and frame so parts can be reassembled in their original position.

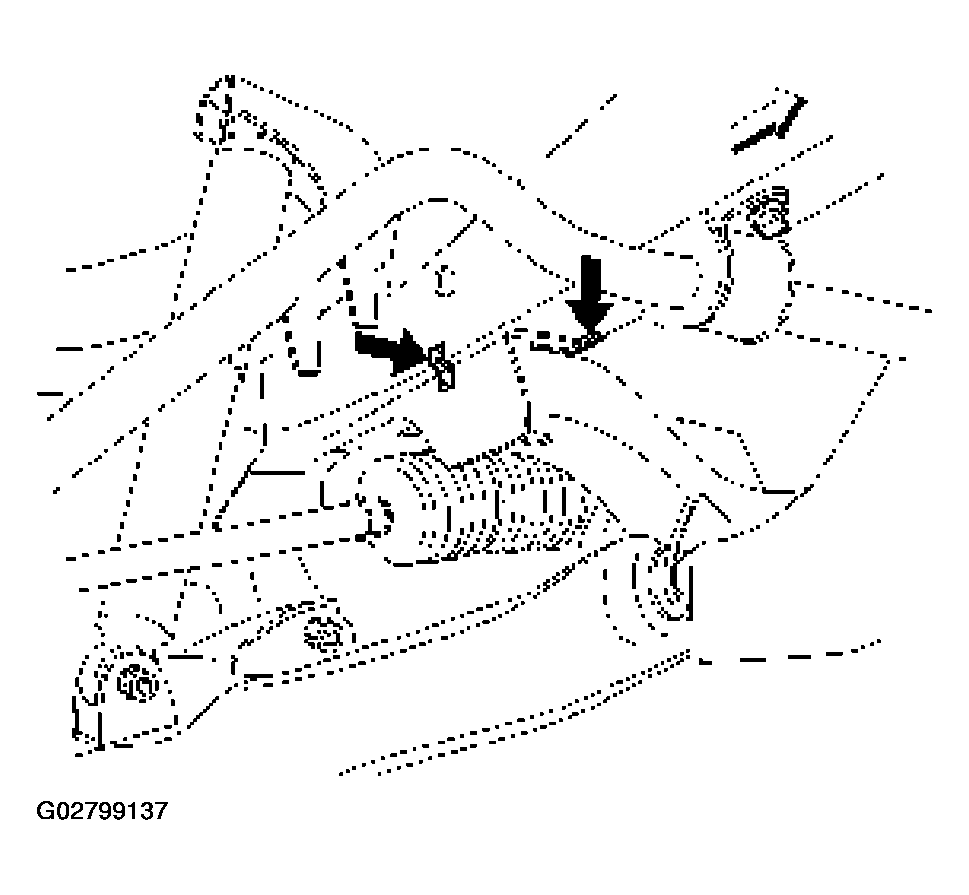

    Fig 1: Applying Setting Mark Across Crossmember & Frame
    G02799137Courtesy of ISUZU MOTOR CO.
  4. Remove the crossmember fixing bolt.
  5. Remove the power steering unit with the crossmember.
  6. Remove the power steering unit.
