Tailgate Lock Switch: Removal

WARNING: This page is about a different car, the 2003 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the tailgate outside handle.
- Refer to TAILGATE LOCK, OUTSIDE HANDLE .
Remove the tail gate lock switch (1).
- Disconnect the switch connector (2) and lock actuator connectors (3).

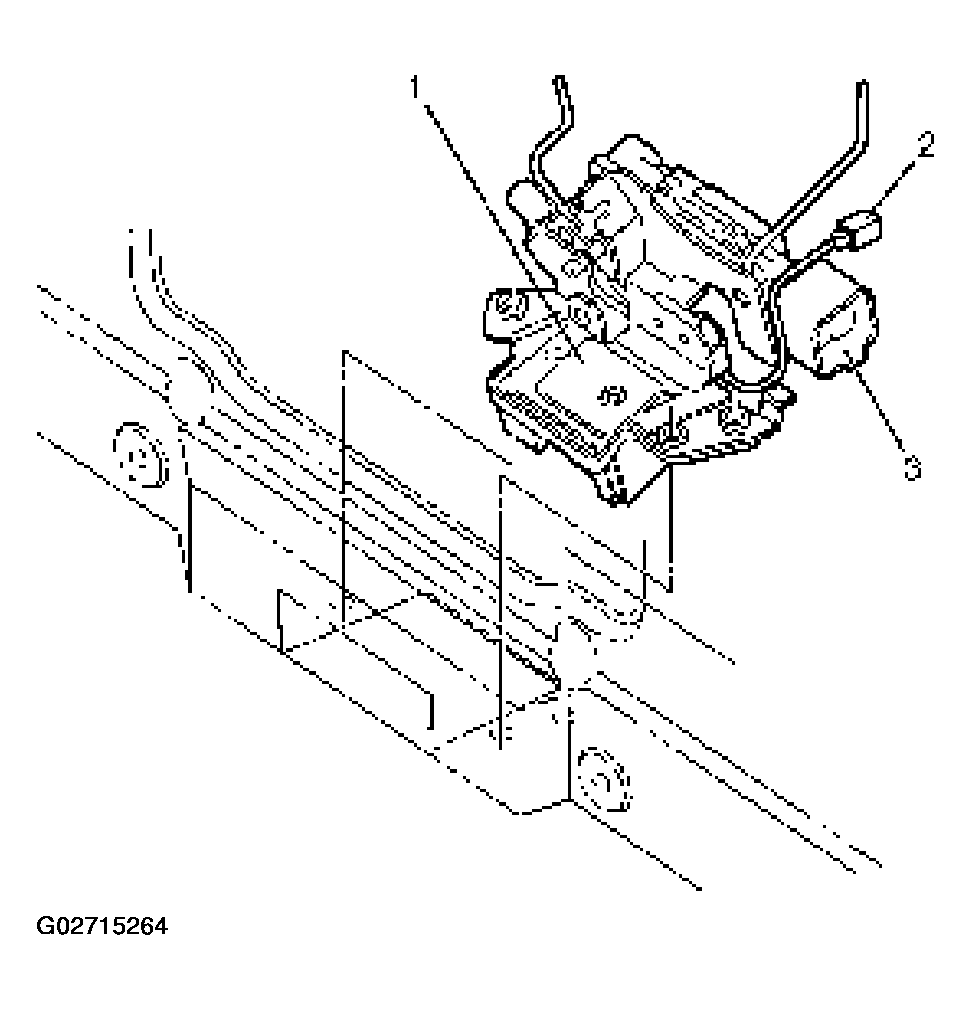

Fig 1: Removing Switch Connector And Lock Actuator Connectors
Courtesy of ISUZU MOTOR CO.
