Headlight Adjustment

Preparation

Place the vehicle with 1 person in driver seat on a level surface and check to see if the inflation pressure of the tires is correct, the lenses are clean, the battery is sufficiently charged, and adjust to place vehicle by using the screen.

1. Set a vertical screen on a level surface.
2. Toward the screen (1) from the bulb center mark of the headlight, extend parallel lines to the floor. Mark point (A) and (B) on the screen at the intersection of parallel line and the screen.
3. Draw vertical lines through point (A) and (B) on the screen.

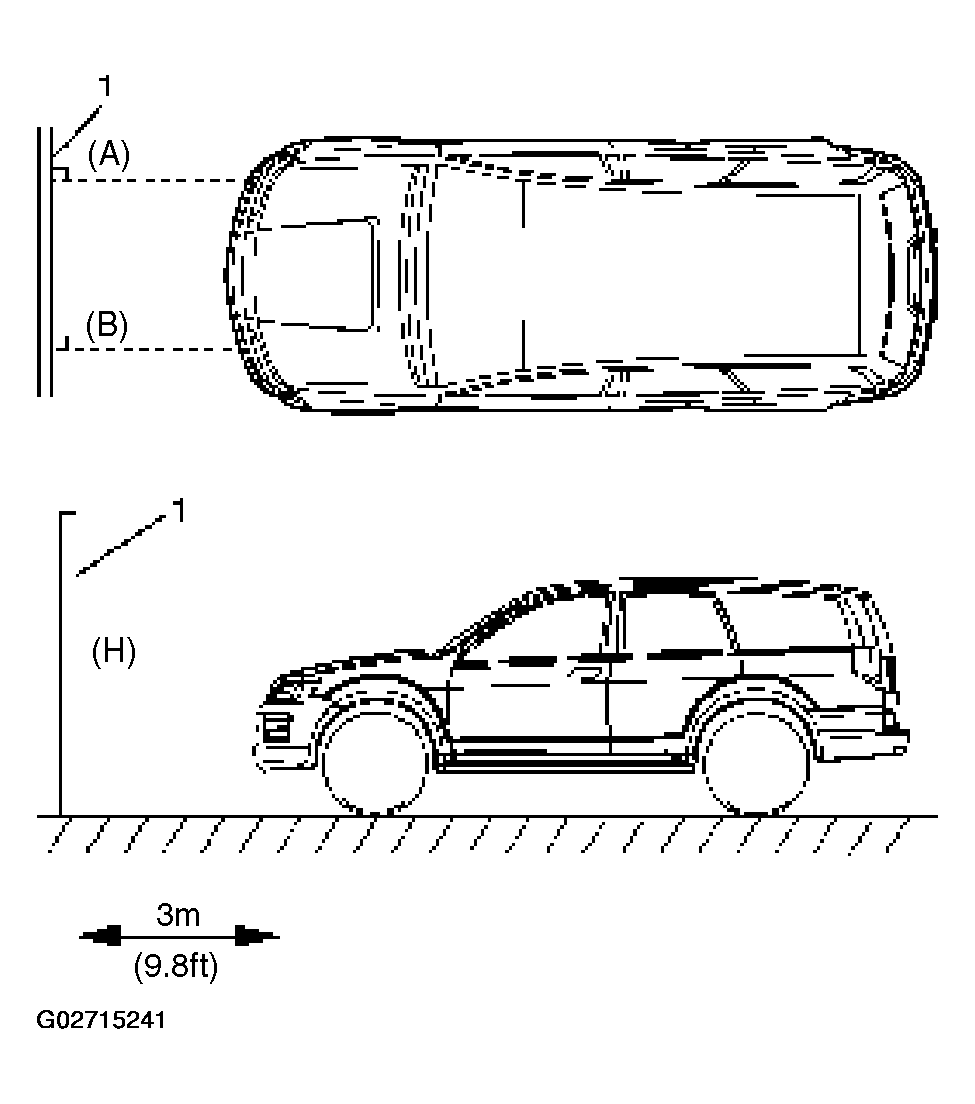

   Fig 1: Adjusting Headlights

   Courtesy of ISUZU MOTOR CO.
4. Turn the headlight low beam on.
5. Adjust the CUTLINE 30 mm (1.18 in) below the horizontal line (H).

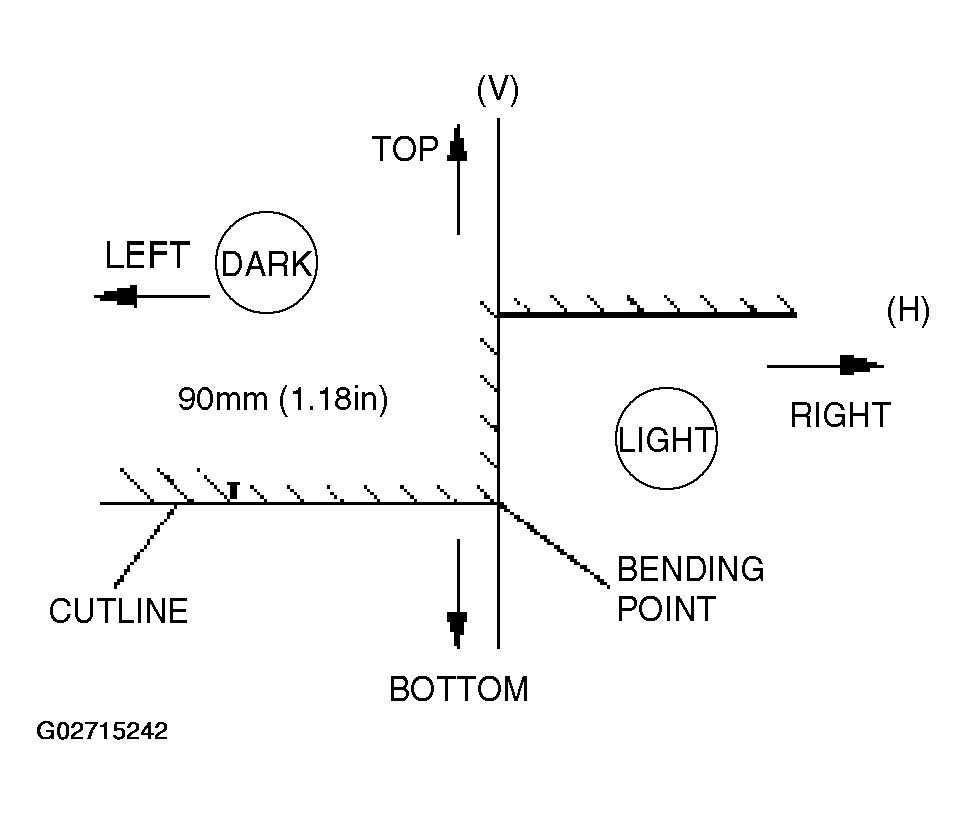

Fig 2: Adjusting Horizontal Line

Courtesy of ISUZU MOTOR CO.

Vertical Adjustment

Use a screwdriver for vertical adjustment.

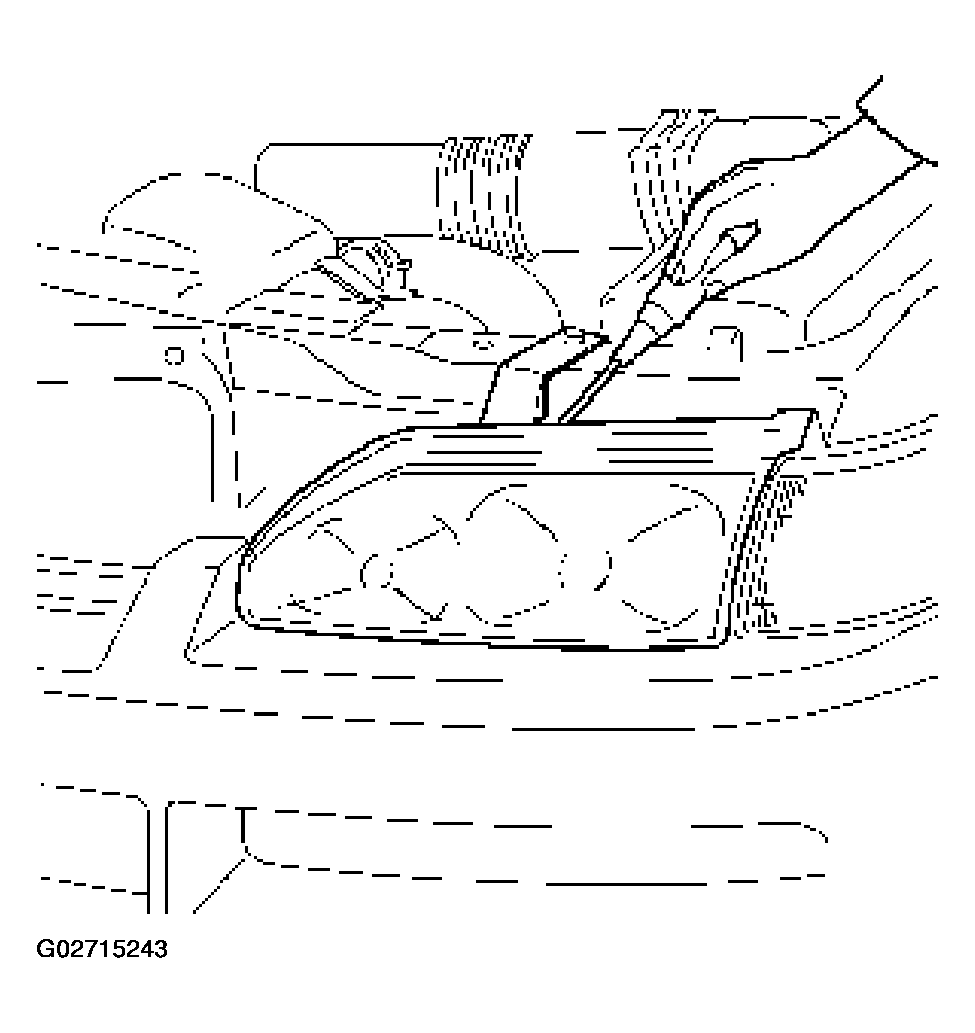

Fig 3: Adjusting Vertical Line

Courtesy of ISUZU MOTOR CO.
