Chart TC-1 Sensor Output Inspection Procedure

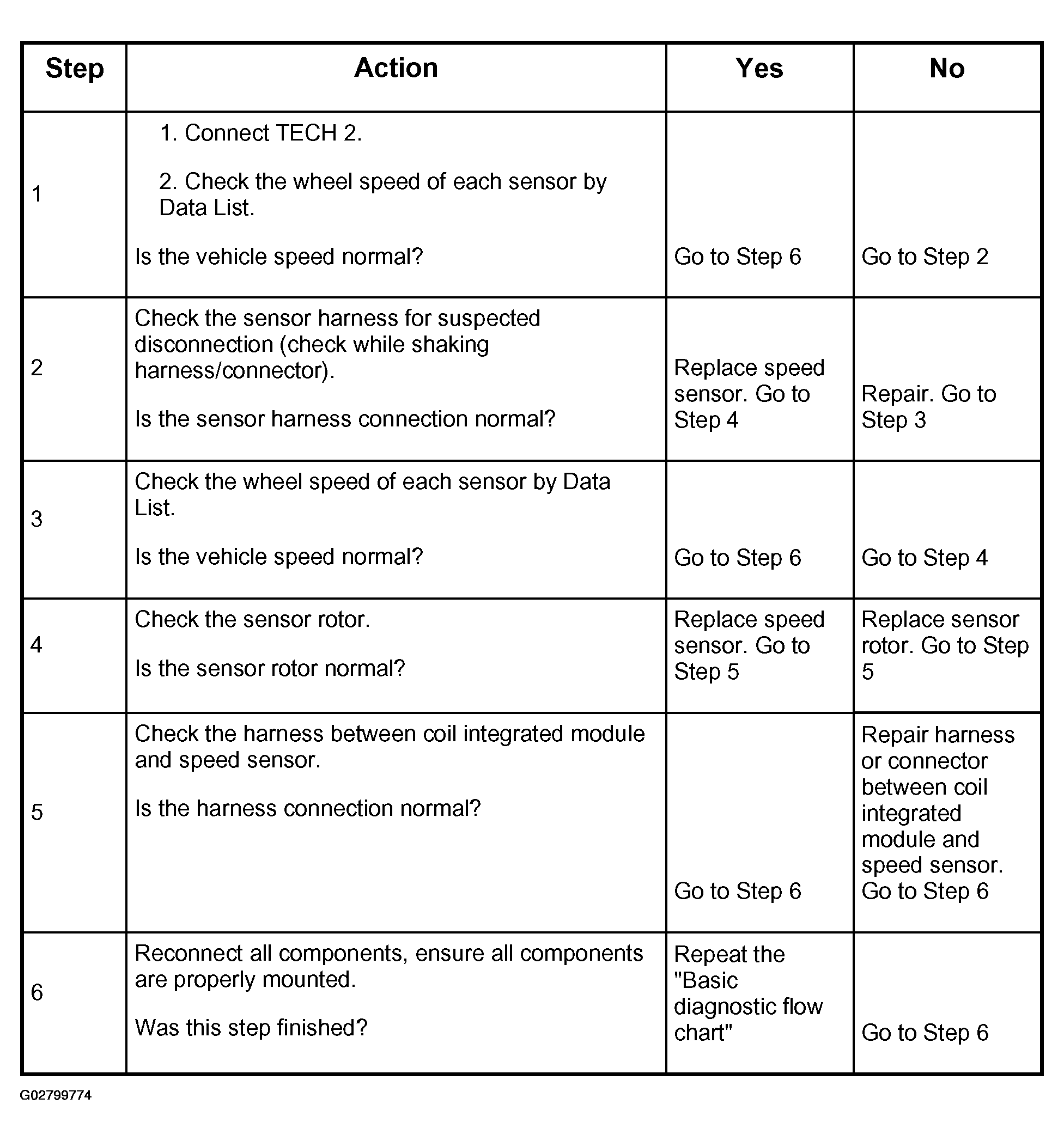

Fig 1: Chart TC-1 Sensor Output Inspection Procedure

G02799774

Courtesy of ISUZU MOTOR CO.
