Main Data and Specifications
>>
Torque Specifications
Torque Specifications

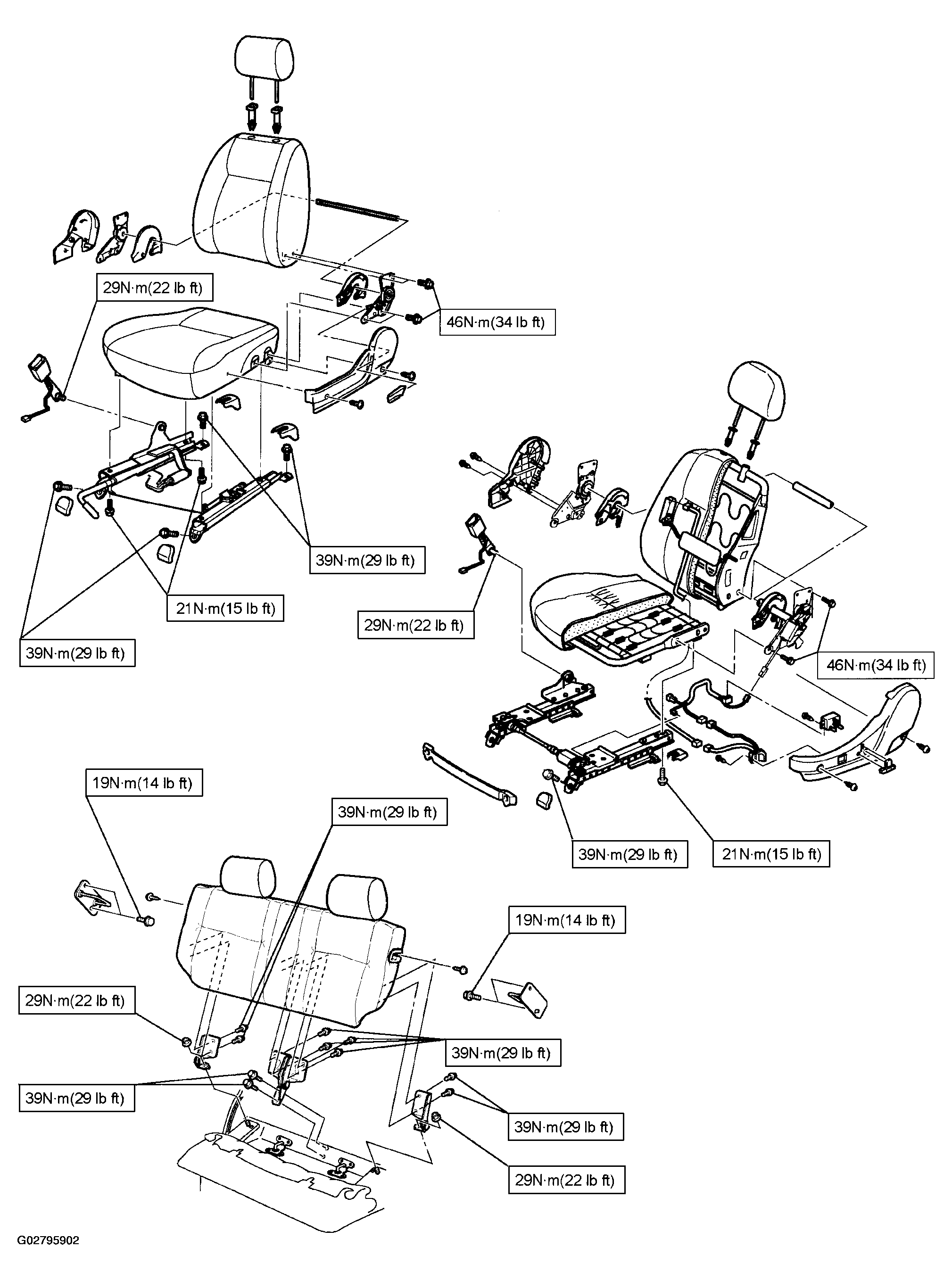

Fig 1: Tightening Bolt With Torque Specifications (1 Of 2)
Courtesy of ISUZU MOTOR CO.

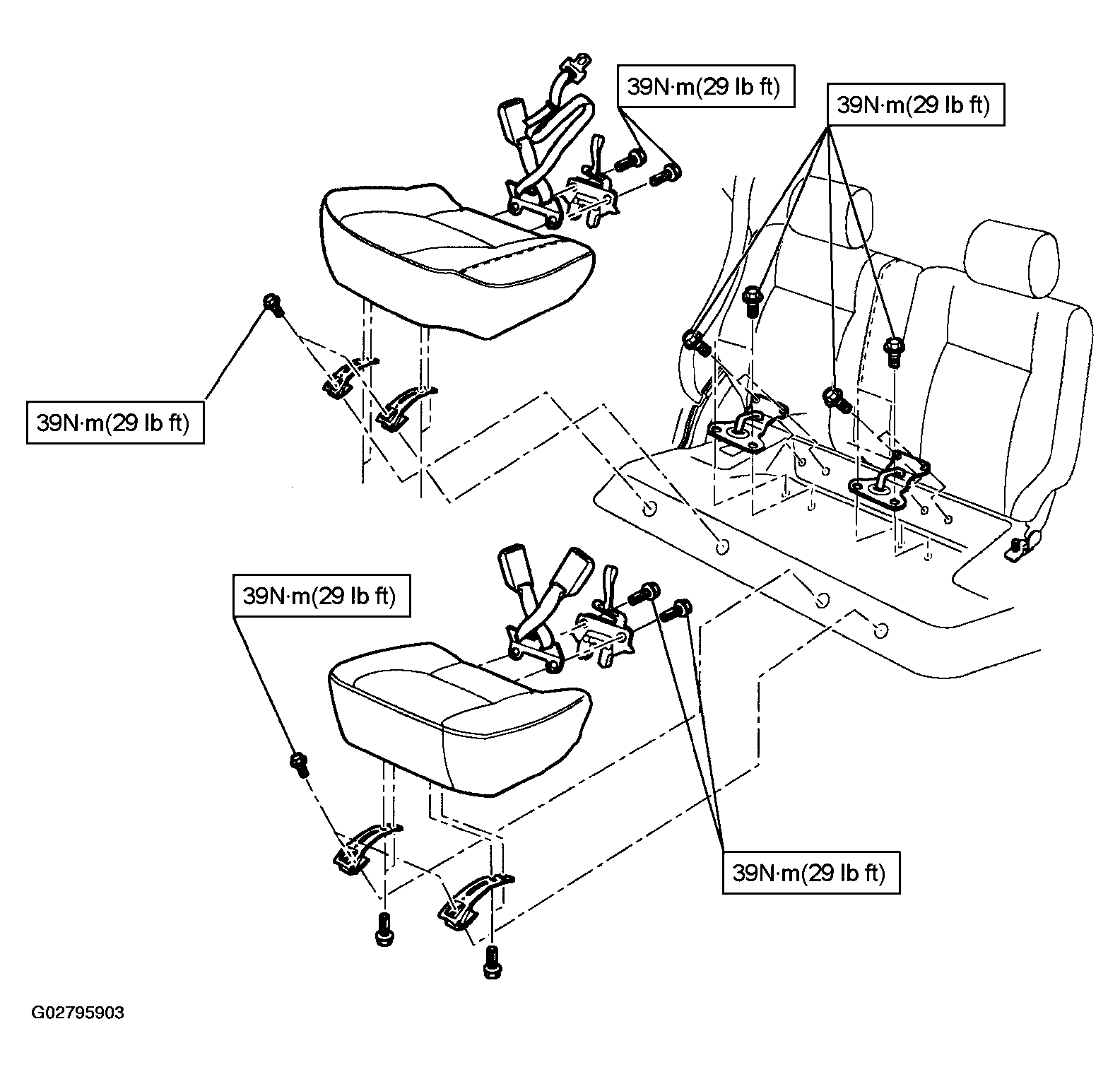

Fig 2: Tightening Bolt With Torque Specifications (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
