Torque Specifications

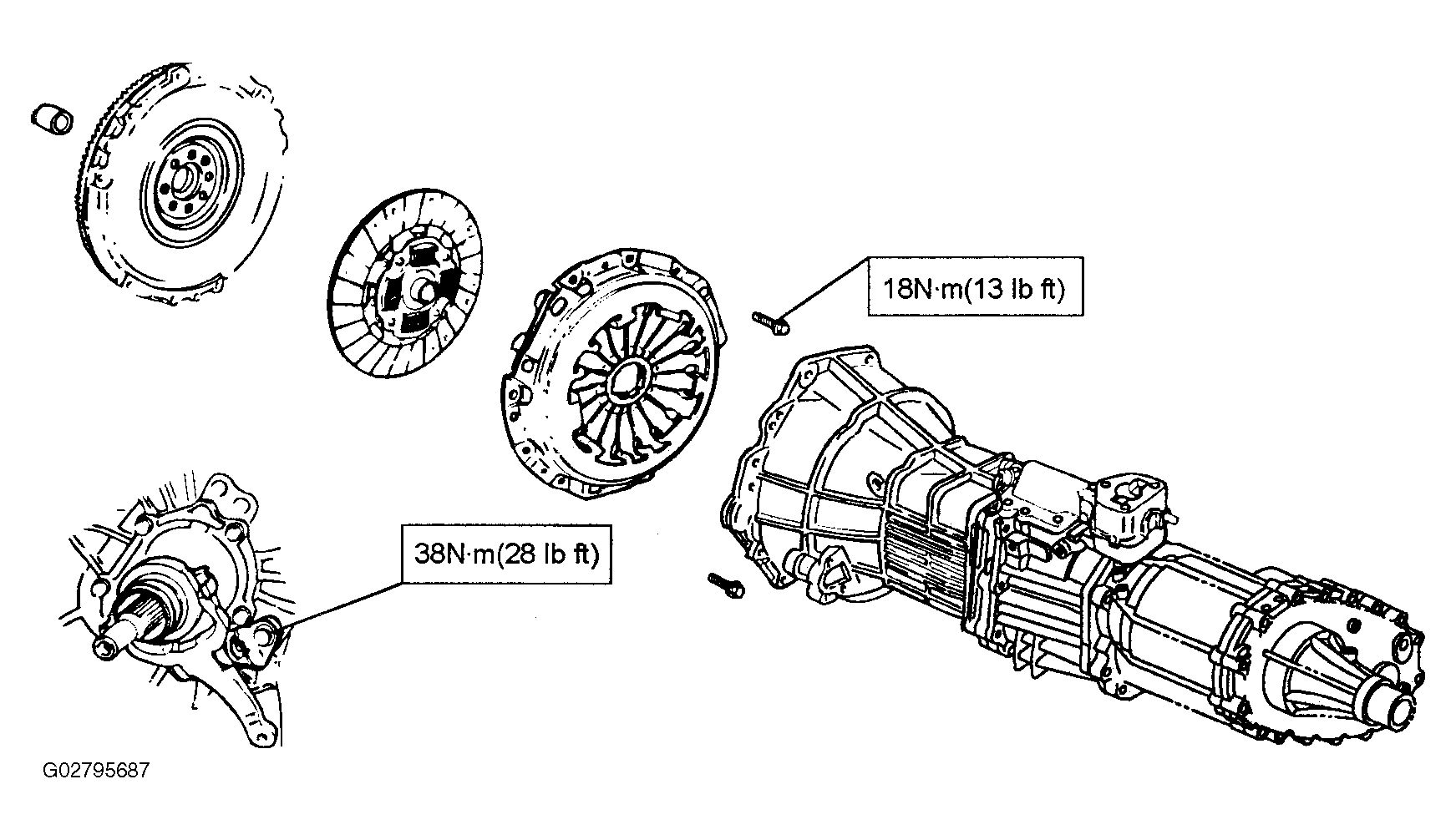

Fig 1: Torque Specifications Table (1 Of 2)

G02795687

Courtesy of ISUZU MOTOR CO.

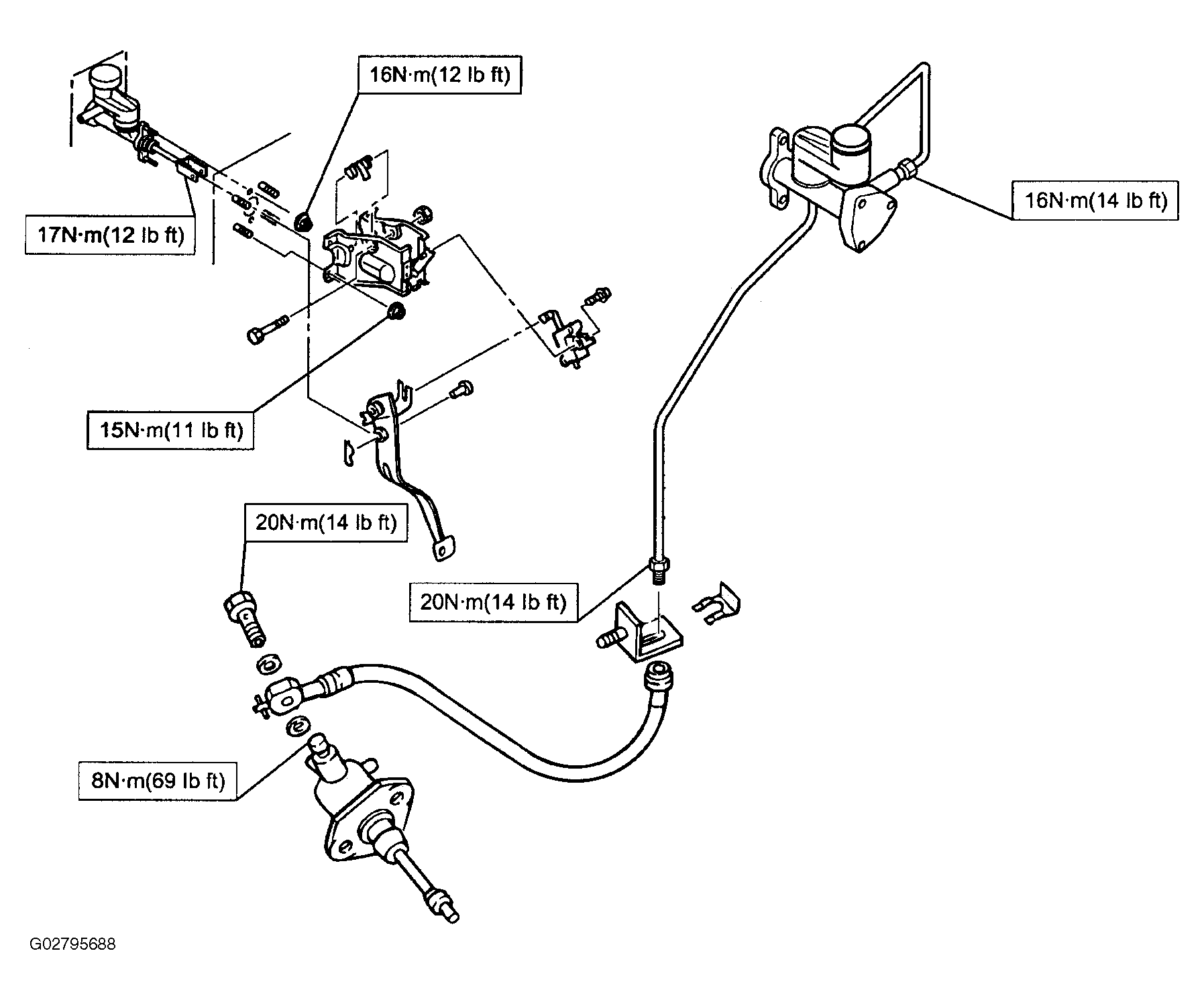

Fig 2: Torque Specifications Table (2 Of 2)

G02795688

Courtesy of ISUZU MOTOR CO.
