Front Wheel Speed Sensor (2WD Model): Installation

  1. Clean the area of the hub that contacts the speed sensor.
  2. Apply silicone gasket sealer (Isuzu P/N 2-90067-800-0) around the flange surface.
    NOTE: Do not allow excess silicone and/or debris to enter the sensor housing.
    Fig 1: Applying Silicone Gasket Sealer Around Flange Surface
    G02799781Courtesy of ISUZU MOTOR CO.
  3. Alignment of the speed sensor connector and hub unit is required.

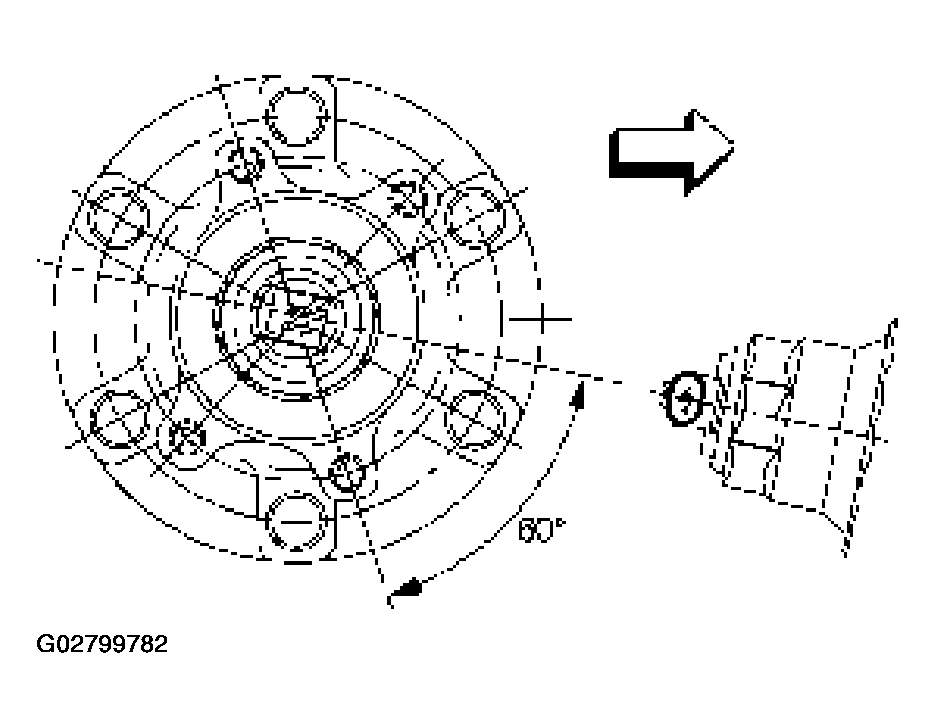

    Fig 2: Aligning Speed Sensor Connector & Hub Unit
    G02799782Courtesy of ISUZU MOTOR CO.
  4. Place the hub assembly (1) and speed sensor (2) face down on Bearing Remover (J-39825). Using a hydraulic press, press until the hub and speed sensor are fully mated, applying pressure no more than 3 lbs (1500 kgf).
    NOTE: To avoid speed sensor breakage Do not use excessive force when pressing the sensor into place.

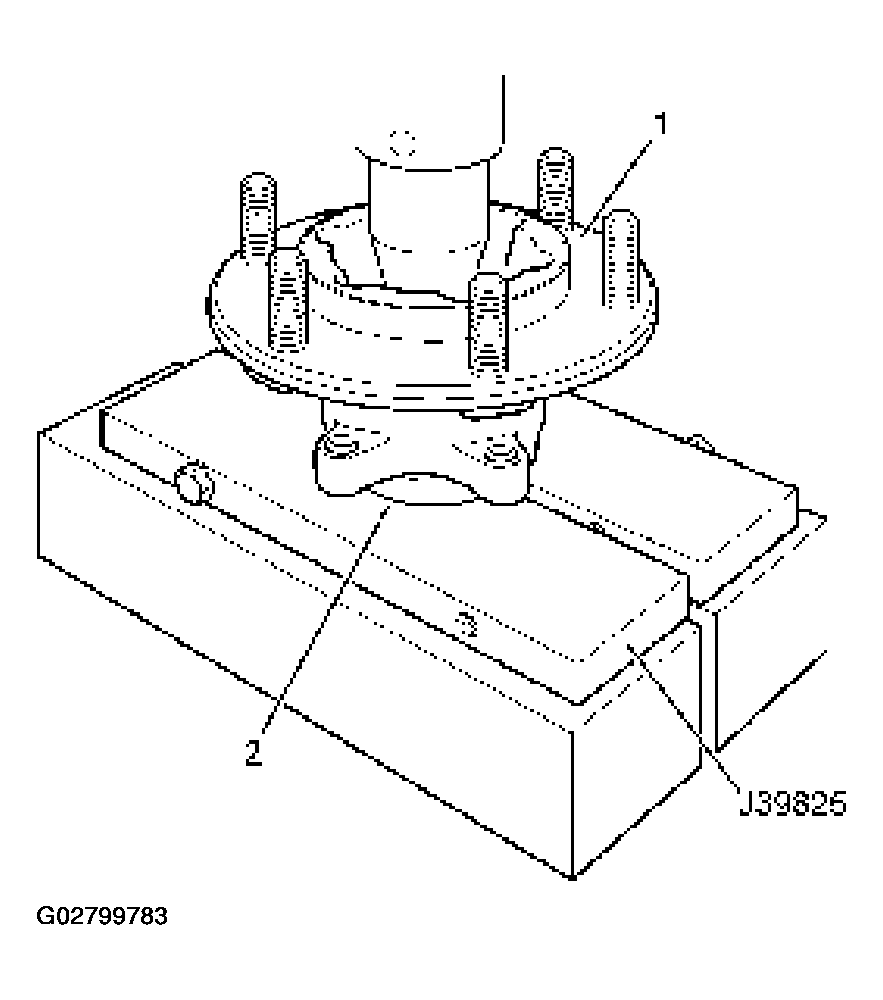

    Fig 3: Placing Hub Assembly & Speed Sensor Face Down On Bearing Remover
    G02799783Courtesy of ISUZU MOTOR CO.
  5. Install the front hub unit assembly to the knuckle. Refer to DISC & DRUM .
