Neutral Start Switch (Mode Switch): Inspection

With a circuit tester, make a continuity test on the neutral start switch with the moving piece set in each position.

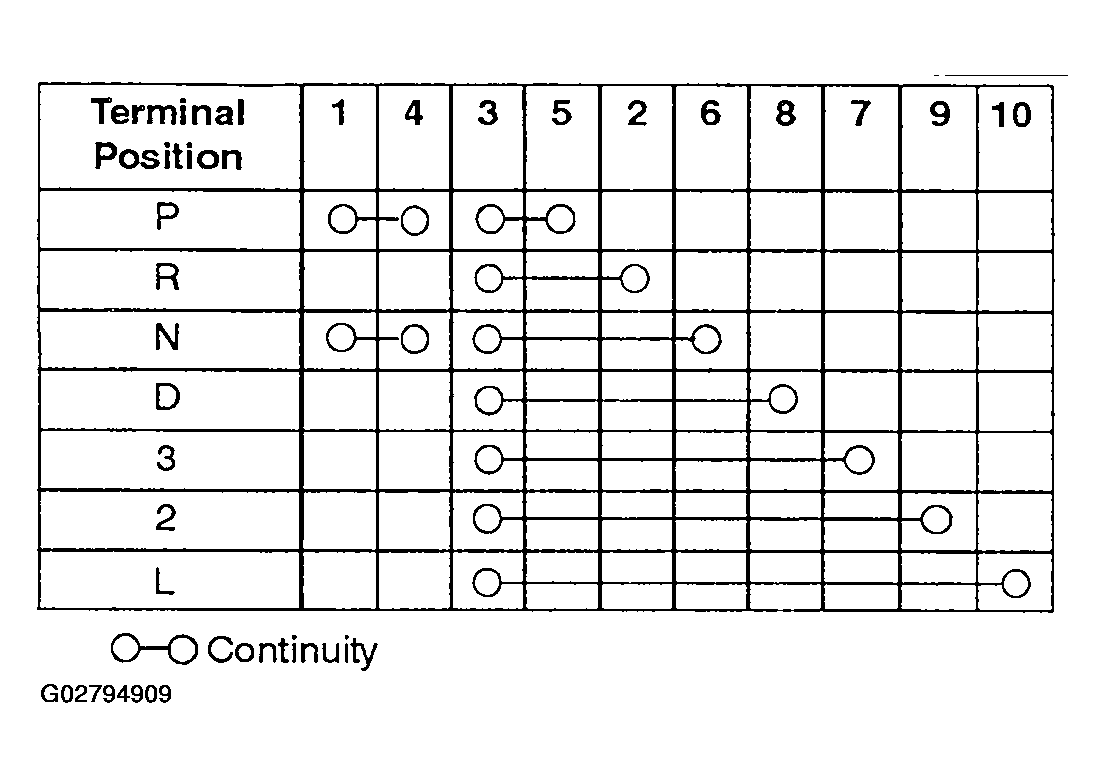

Fig 1: Neutral Start Switch Terminal Position Chart

Courtesy of ISUZU MOTOR CO.

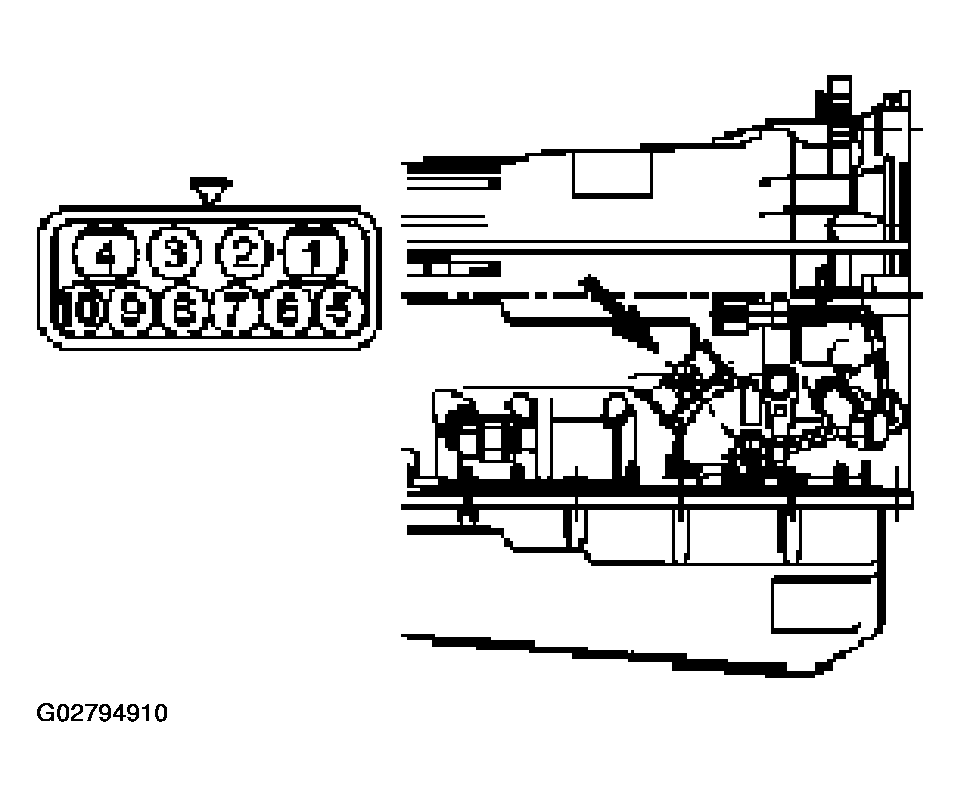

Fig 2: Identifying Neutral Start Switch

Courtesy of ISUZU MOTOR CO.
