Transmission Assembly: Installation

  1. Install rear mounting rubber and bracket on the transmission. (4x2)

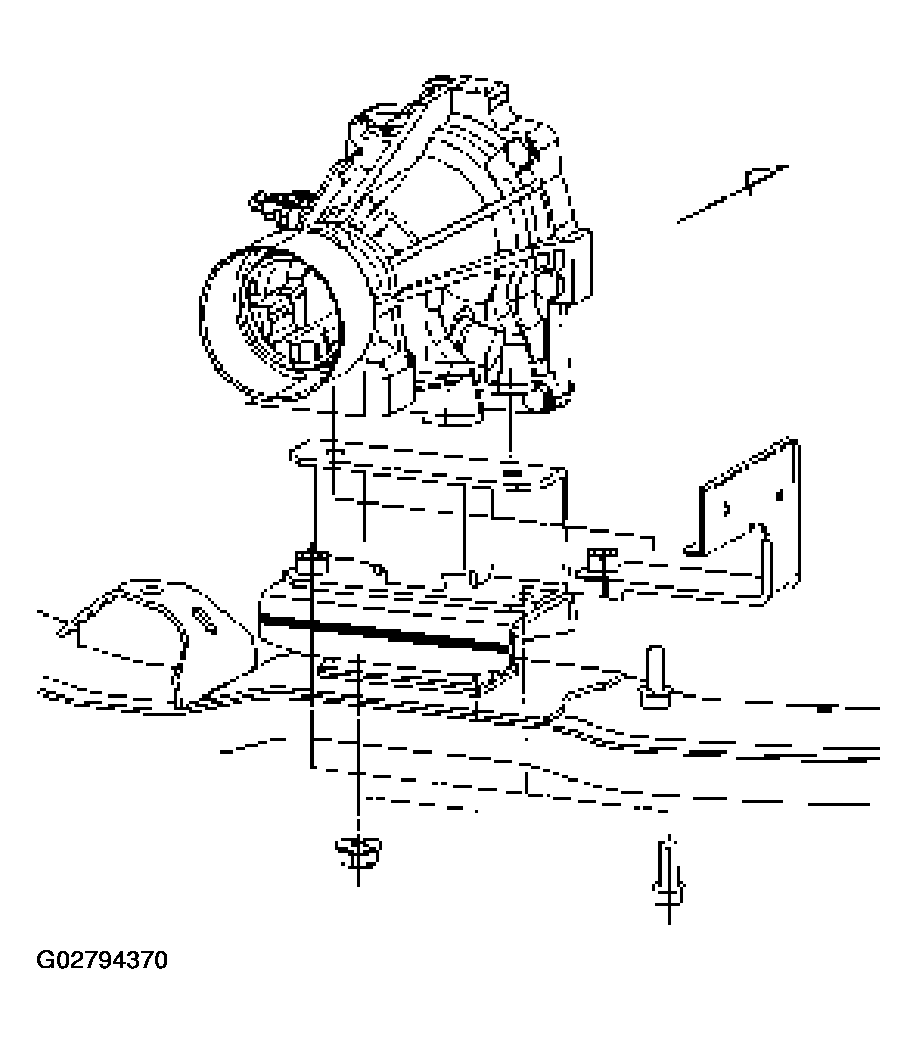

    Fig 1: Installing Rear Mounting Rubber & Bracket On Transmission
    G02794370Courtesy of ISUZU MOTOR CO.
  2. Install rear mounting rubber on the transmission. (4x4)
  3. Slowly raise transmission jack until front of the transmission is aligned with rear of the engine. Attach the transmission to the engine.
  4. Tighten engine transmission bolts as shown in Fig 2 .

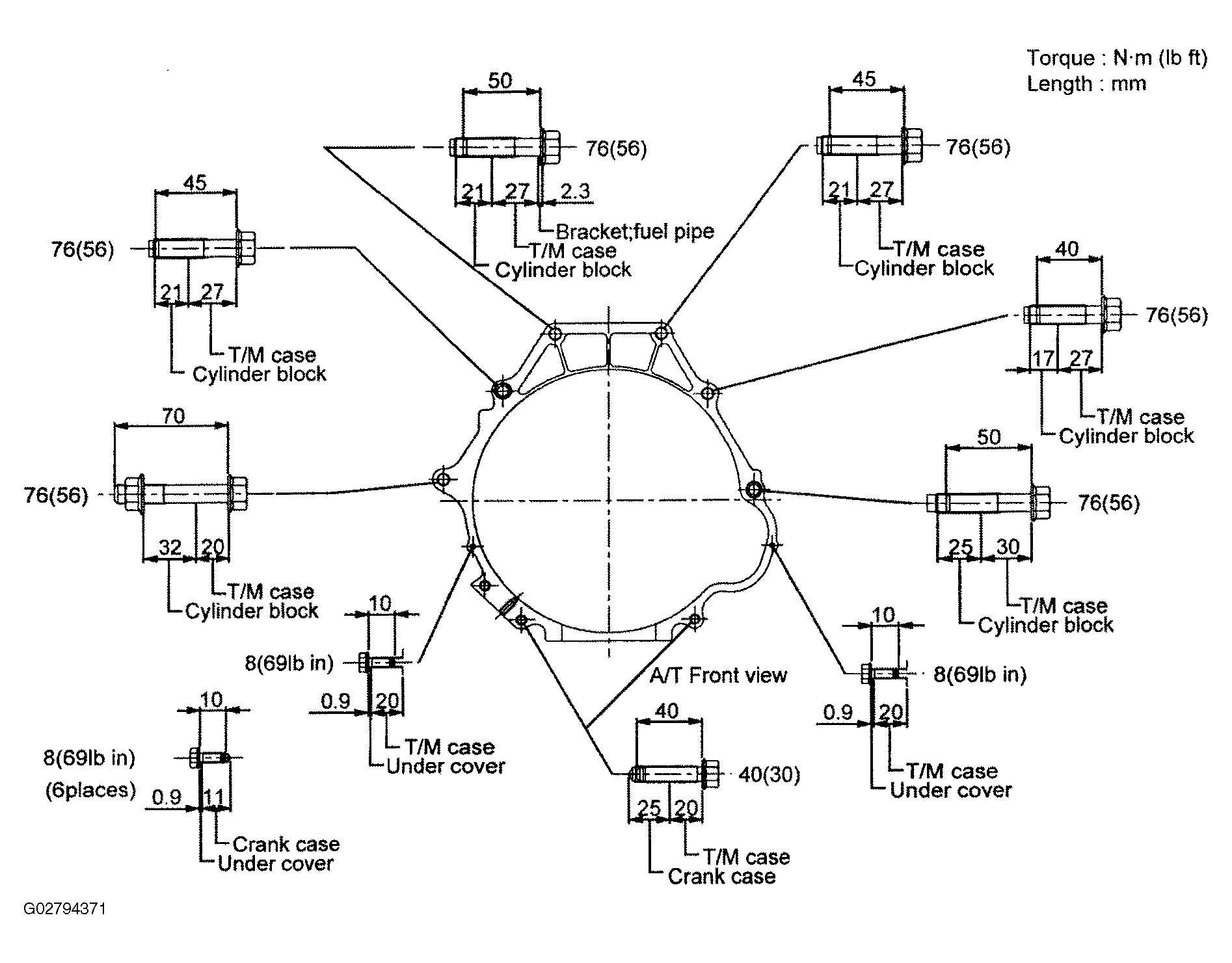

    Fig 2: Tightening Engine Transmission Bolts
    G02794371Courtesy of ISUZU MOTOR CO.
  5. Align the flex plate torque converter bolt boss with flex plate hole by turning the torque converter. Install flex plate torque converter bolts (6 pieces) by turning the crankshaft.
    1. Torque:  54 N.m (40 lb ft)
    NOTE: Do not reuse the flex plate torque converter bolt.

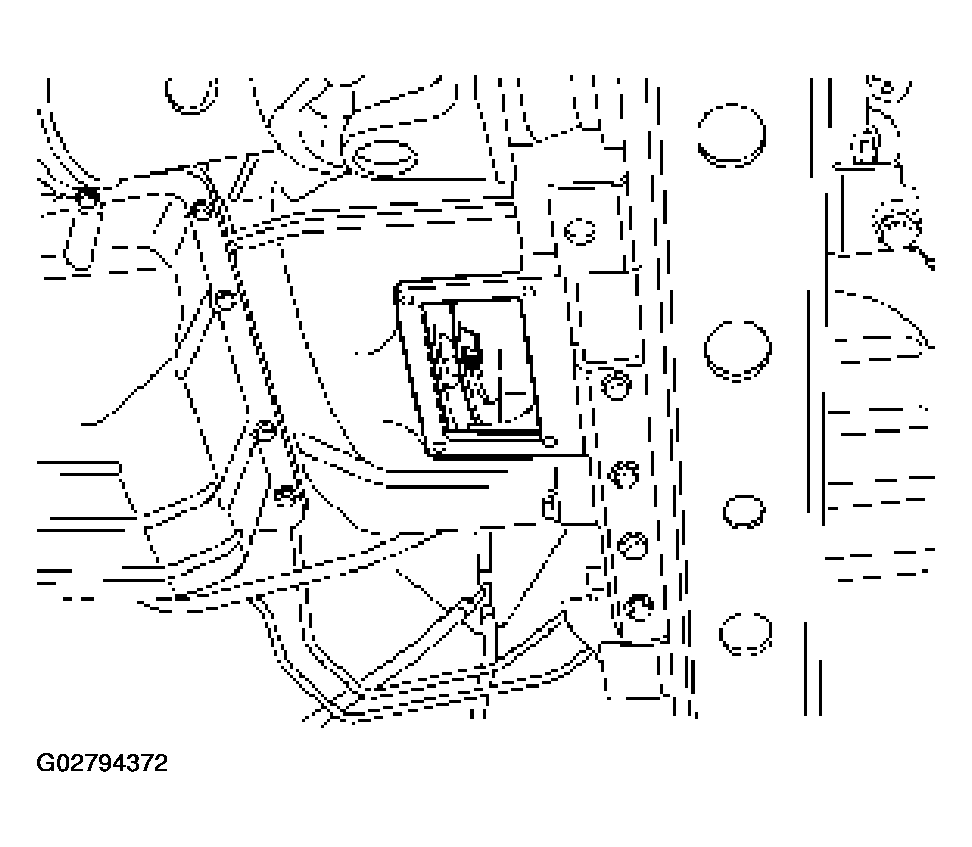

    Fig 3: Installing Flex Plate Torque Converter Bolts
    G02794372Courtesy of ISUZU MOTOR CO.
  6. Install under covers to the transmission and engine.
    1. Torque:  8 N.m (69 lb in)
  7. Install starter.
    1. Torque:  40 N.m (30 lb ft)
  8. Install filler tube and insert oil level gage.
    1. Torque:  13 N.m (113 lb in)
  9. Install select cable by connecting inner cable to select lever and installing outer cable with bracket.
    Fig 4: Installing Select Cable By Connecting Inner Cable To Select Lever
    G02794373Courtesy of ISUZU MOTOR CO.
  10. Connect transmission oil cooler pipes to A/T.
    1. Torque:  44 N.m (33 lb ft)
  11. Install oil cooler pipe clamp and bracket to the converter housing.
    Fig 5: Installing Oil Cooler Pipe Clamp & Bracket
    G02794374Courtesy of ISUZU MOTOR CO.
  12. Tighten oil cooler pipe clamp bolt at the engine mount side.
  13. Install transmission crossmember.
    1. Torque:  76 N.m (56 lb ft)
  14. Install rear mount nuts.
    1. Torque  : 50 N.m (37 lb ft)

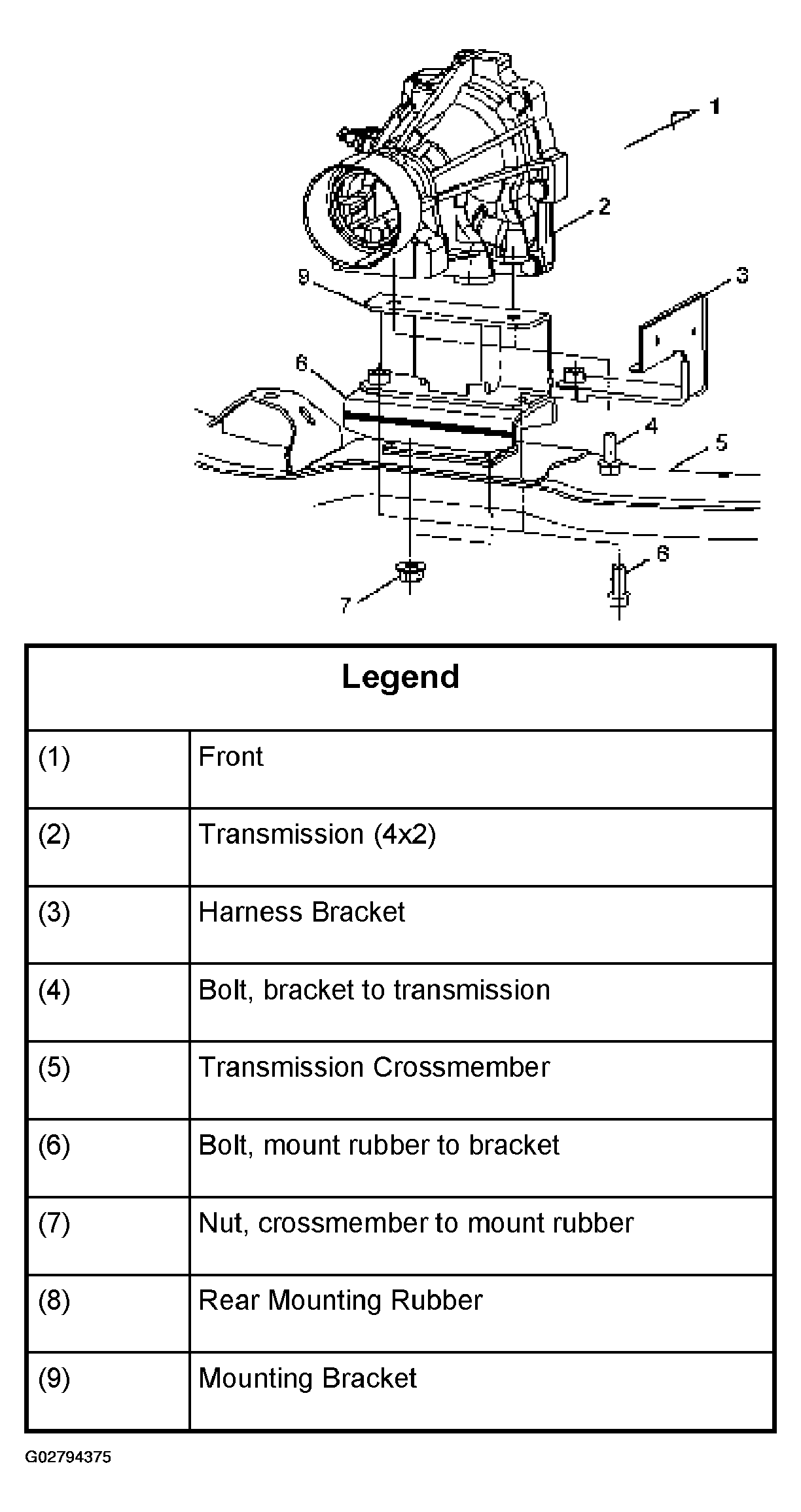

    Fig 6: Installing Rear Mount Nuts (4x2)
    G02794375Courtesy of ISUZU MOTOR CO.
    Fig 7: Installing Rear Mount Nuts (4x4)
    G02794376Courtesy of ISUZU MOTOR CO.
  15. Install transfer case assembly and tighten transmission transfer bolts as shown in Fig 8 .

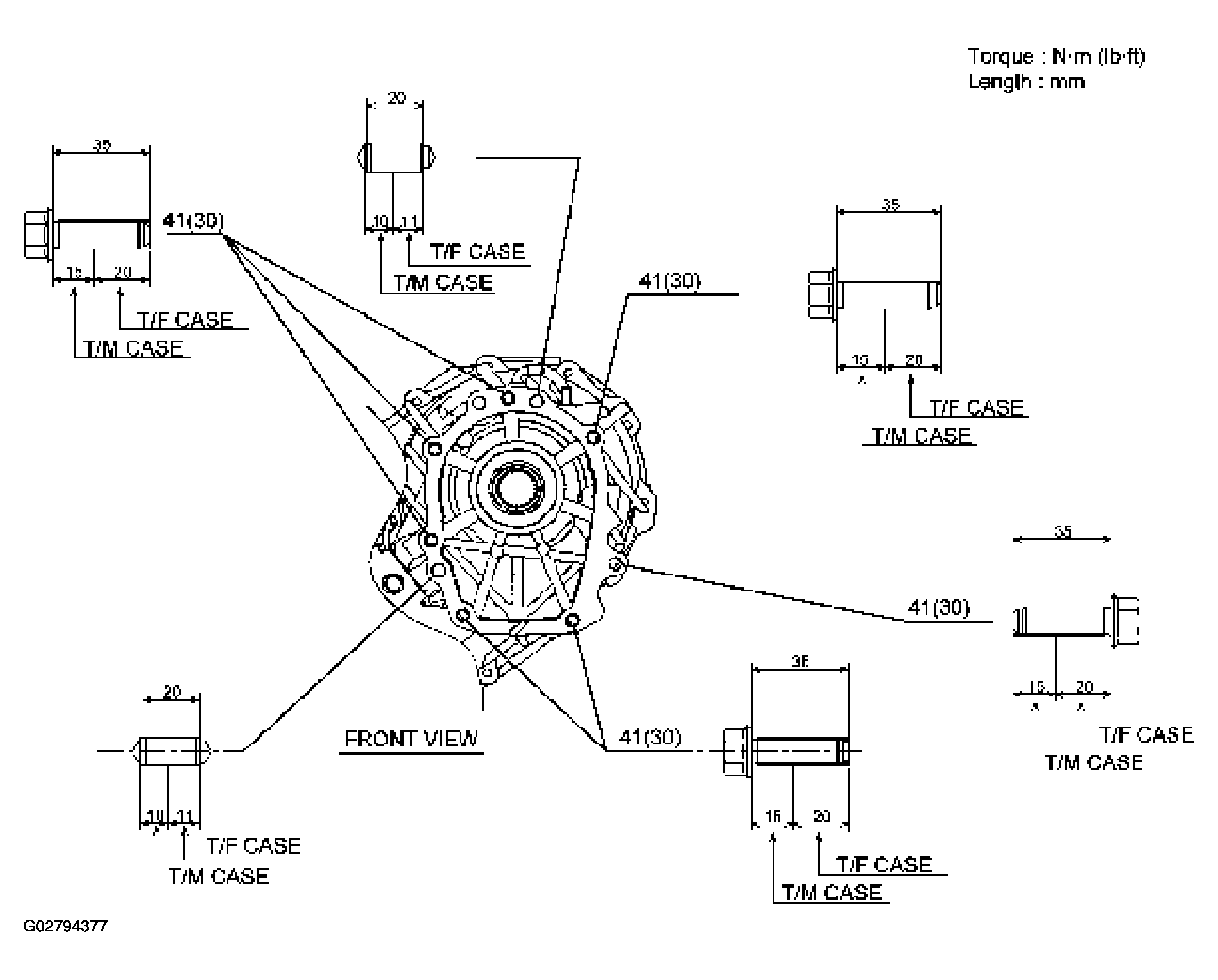

    Fig 8: Installing Transfer Case Assembly
    G02794377Courtesy of ISUZU MOTOR CO.
  16. Install harness heat protector.
    1. Torque  : 6 N.m (52 lb in)

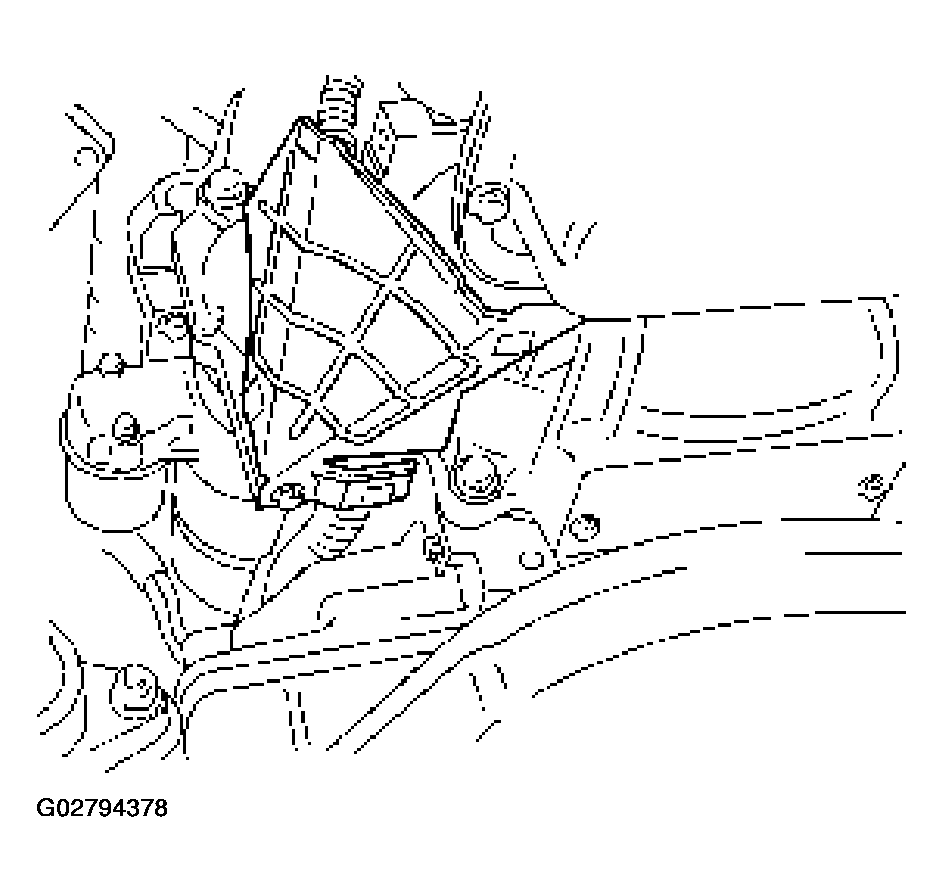

    Fig 9: Installing Harness Heat Protector
    G02794378Courtesy of ISUZU MOTOR CO.
  17. Connect transmission and ECGI harness connector and clip.

    Connector: output revolution sensor, input revolution sensor, transmission wire, neutral start switch (mode switch), H-L neutral switch (4x4), oil temperature sensor, 4WD switch (4x4), motor actuator (4x4) and car speed sensor.

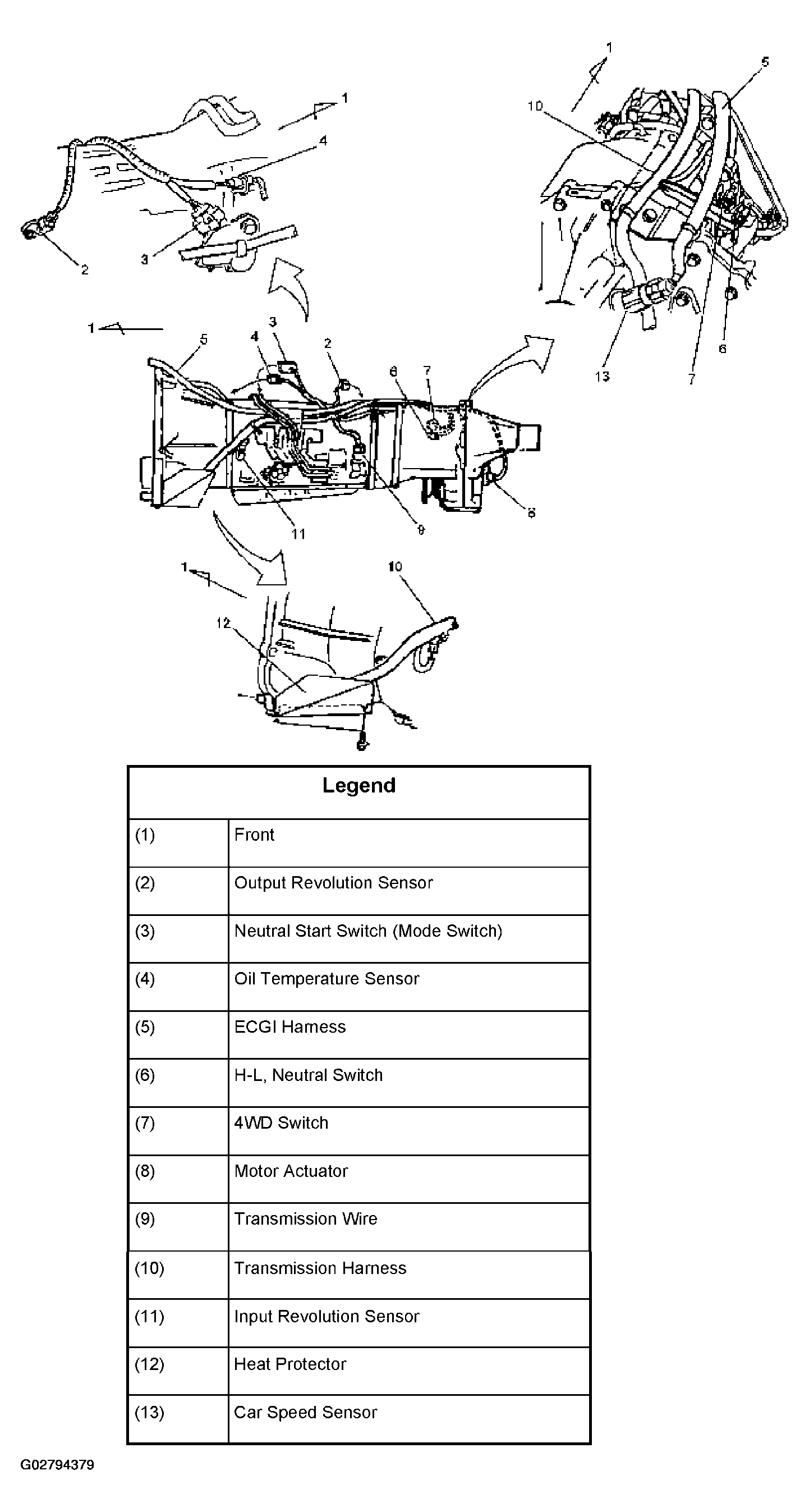

    Fig 10: Connecting Transmission & ECGI Harness Connector
    G02794379Courtesy of ISUZU MOTOR CO.
  18. Connect fuel pipe bracket to transmission side.

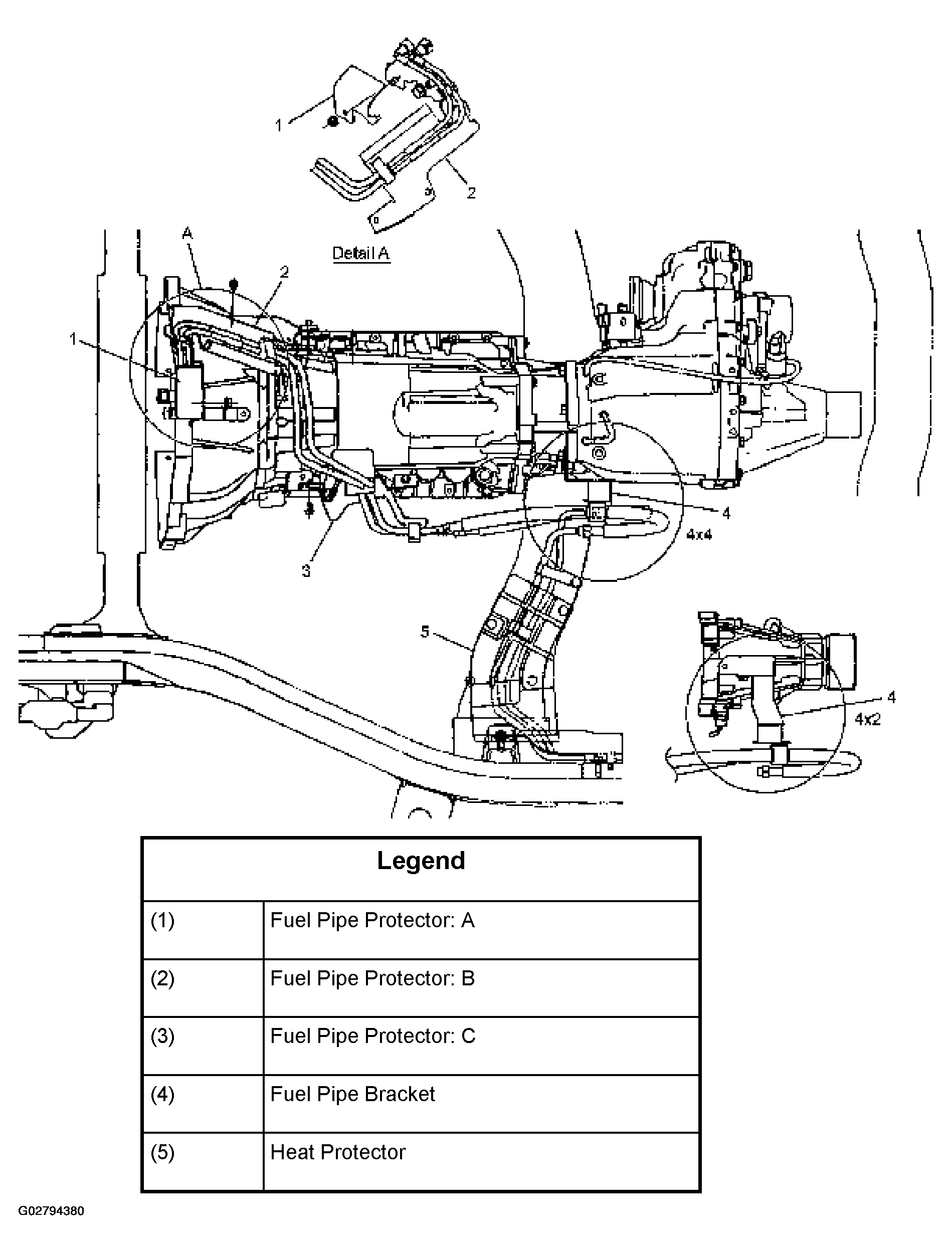

    Fig 11: Connecting Fuel Pipe Bracket To Transmission Side
    G02794380Courtesy of ISUZU MOTOR CO.
  19. Install fuel pipe heat protector and clip.
  20. Tighten front exhaust pipe nuts.
    1. Torque:  67 N.m (49 lb ft)
    Fig 12: Tightening Front Exhaust Pipe Nuts
    G02794381Courtesy of ISUZU MOTOR CO.
  21. Install front propeller shaft (4x4) and rear propeller shaft.
    1. Torque:  63 N.m (46 lb ft)
  22. Connect battery ground cable.
