Select Cable: Removal

Pull the parking brake lever.
Set selector lever in "R" position.
Remove rear console assembly, front console, selector lever knob and cover.
- Refer to SELECTOR LEVER .
Disconnect inner cable by pushing the pin.

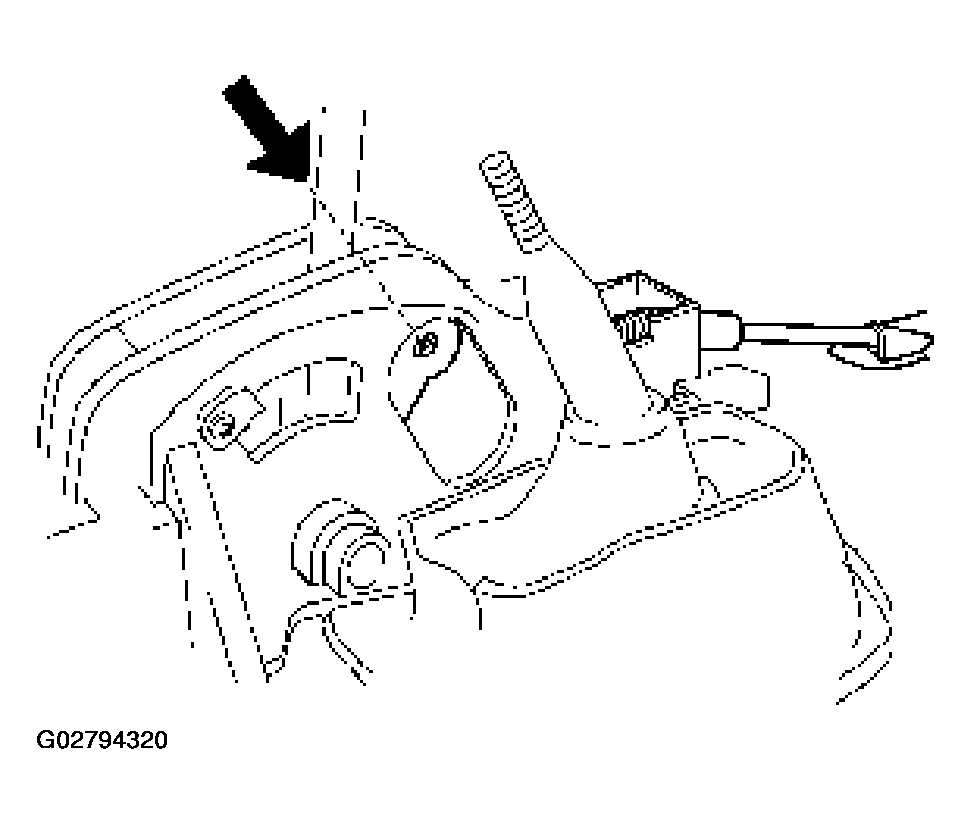

Fig 1: Disconnecting Inner Cable Pushing Pin
Courtesy of ISUZU MOTOR CO.
Press down claws and disconnect cable assembly.

Fig 2: Disconnecting Cable Assembly
Courtesy of ISUZU MOTOR CO.
Remove nuts that fasten grommet in select cable assembly.
Disconnect inner cable at transmission select lever.

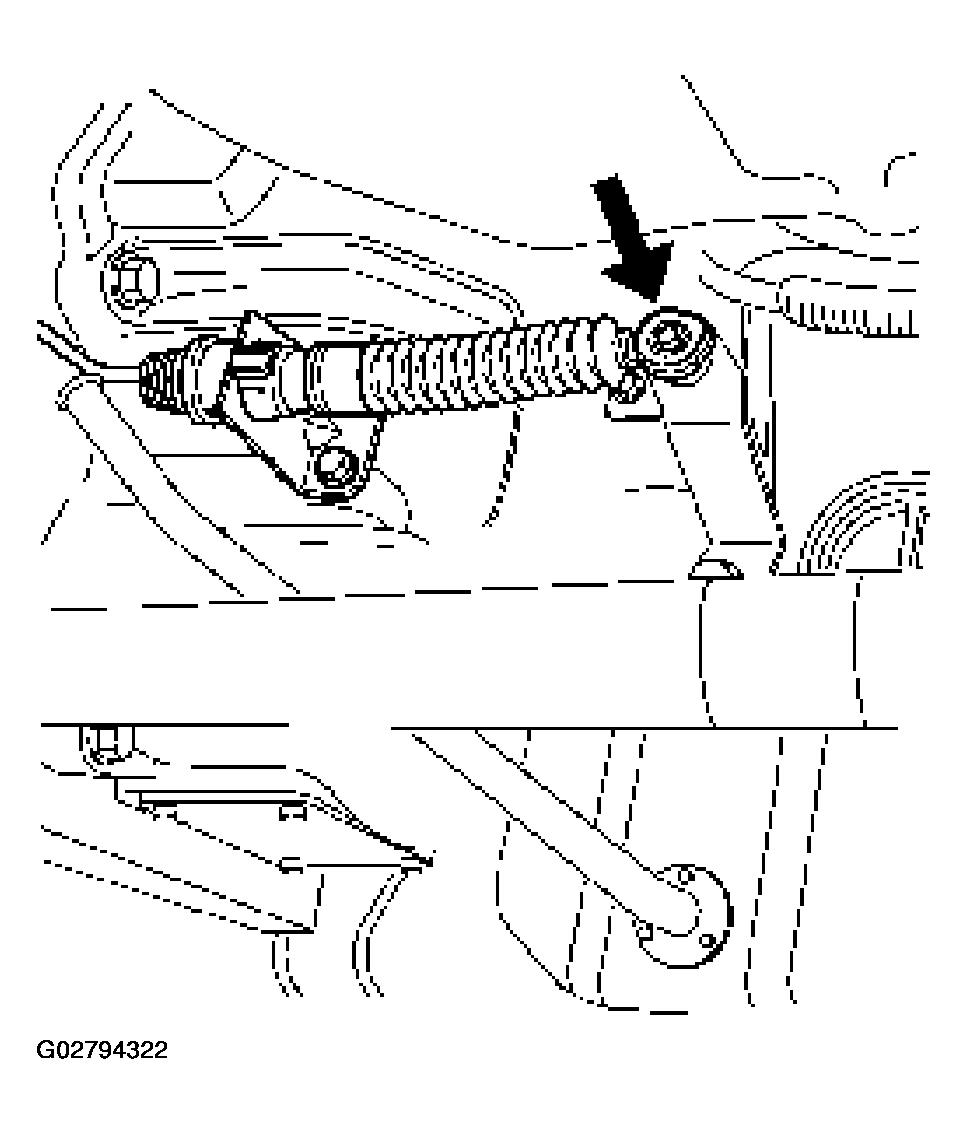

Fig 3: Disconnecting Inner Cable At Transmission Select Lever
Courtesy of ISUZU MOTOR CO.
Slide sleeve and disconnect cable assembly.

Fig 4: Sliding Sleeve & Disconnecting Cable Assembly
Courtesy of ISUZU MOTOR CO.
Pull lock.

Fig 5: Pulling Lock
Courtesy of ISUZU MOTOR CO.
Draw select cable assembly into the interior side.
