Main Data and Specifications

WARNING: This page is about a different car, the 2003 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.

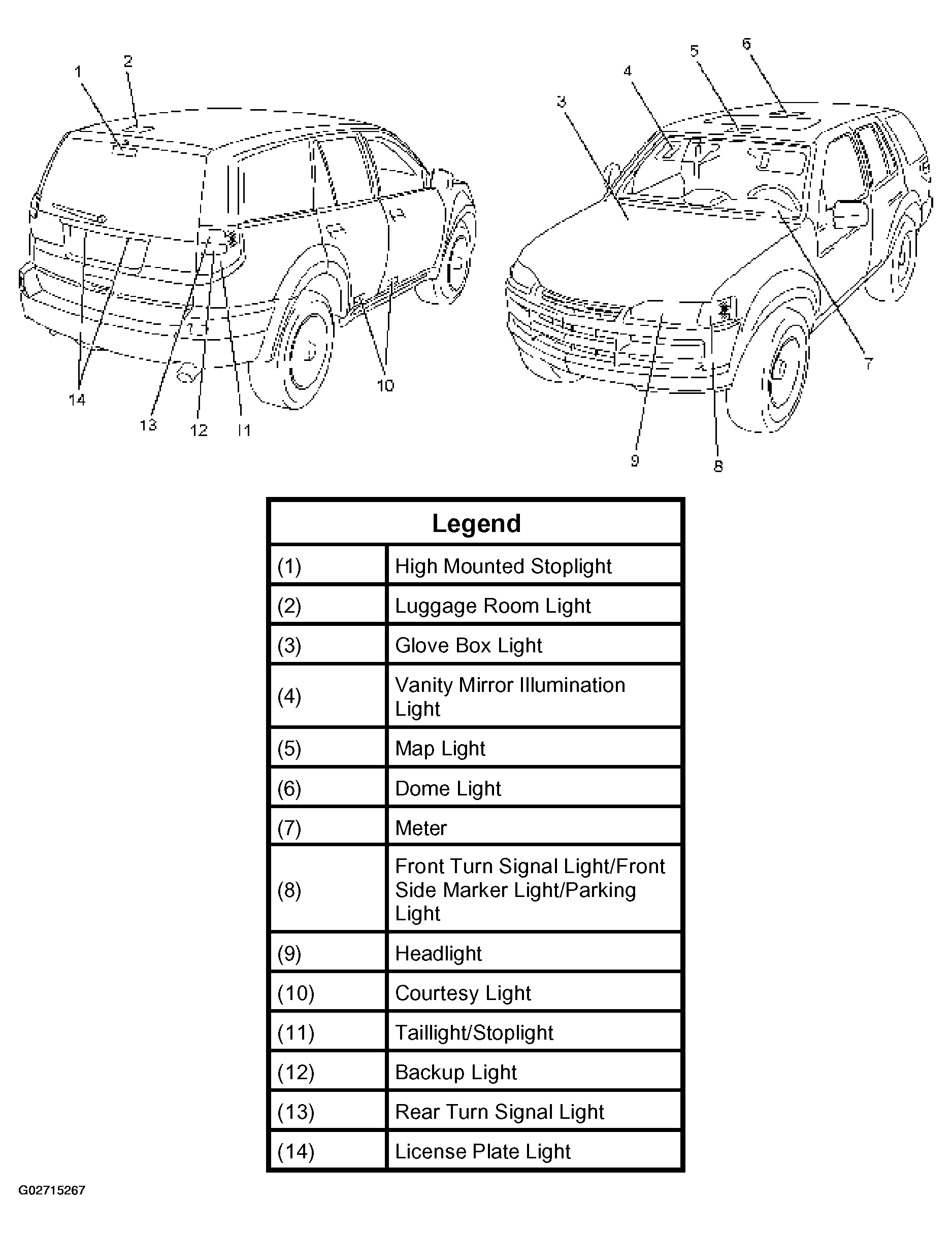

Fig 1: Light And Bulb Specifications Chart (1 Of 2)
G02715267Courtesy of ISUZU MOTOR CO.

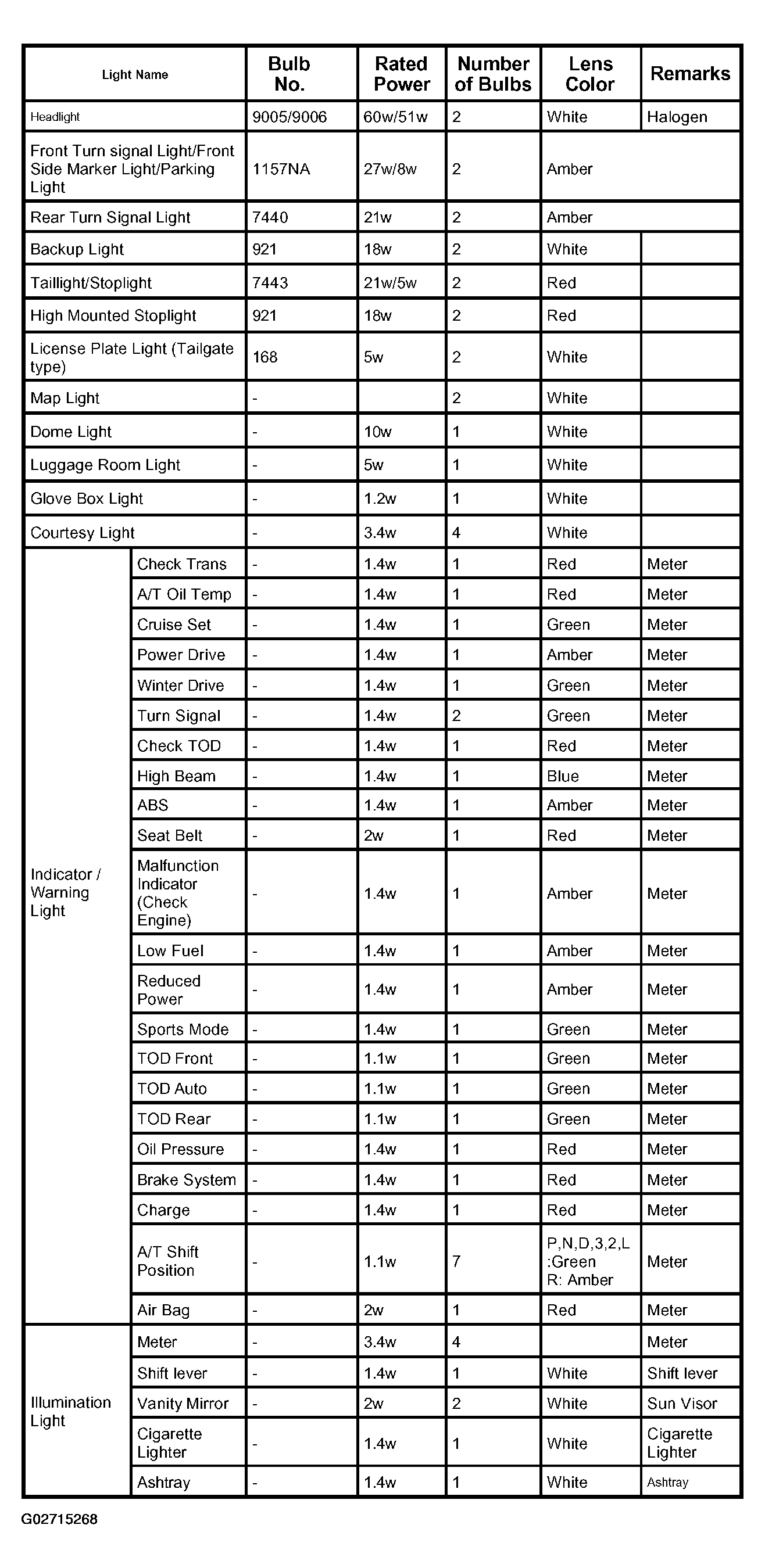

Fig 2: Light And Bulb Specifications Chart (2 Of 2)
G02715268Courtesy of ISUZU MOTOR CO.
