Torque Specification

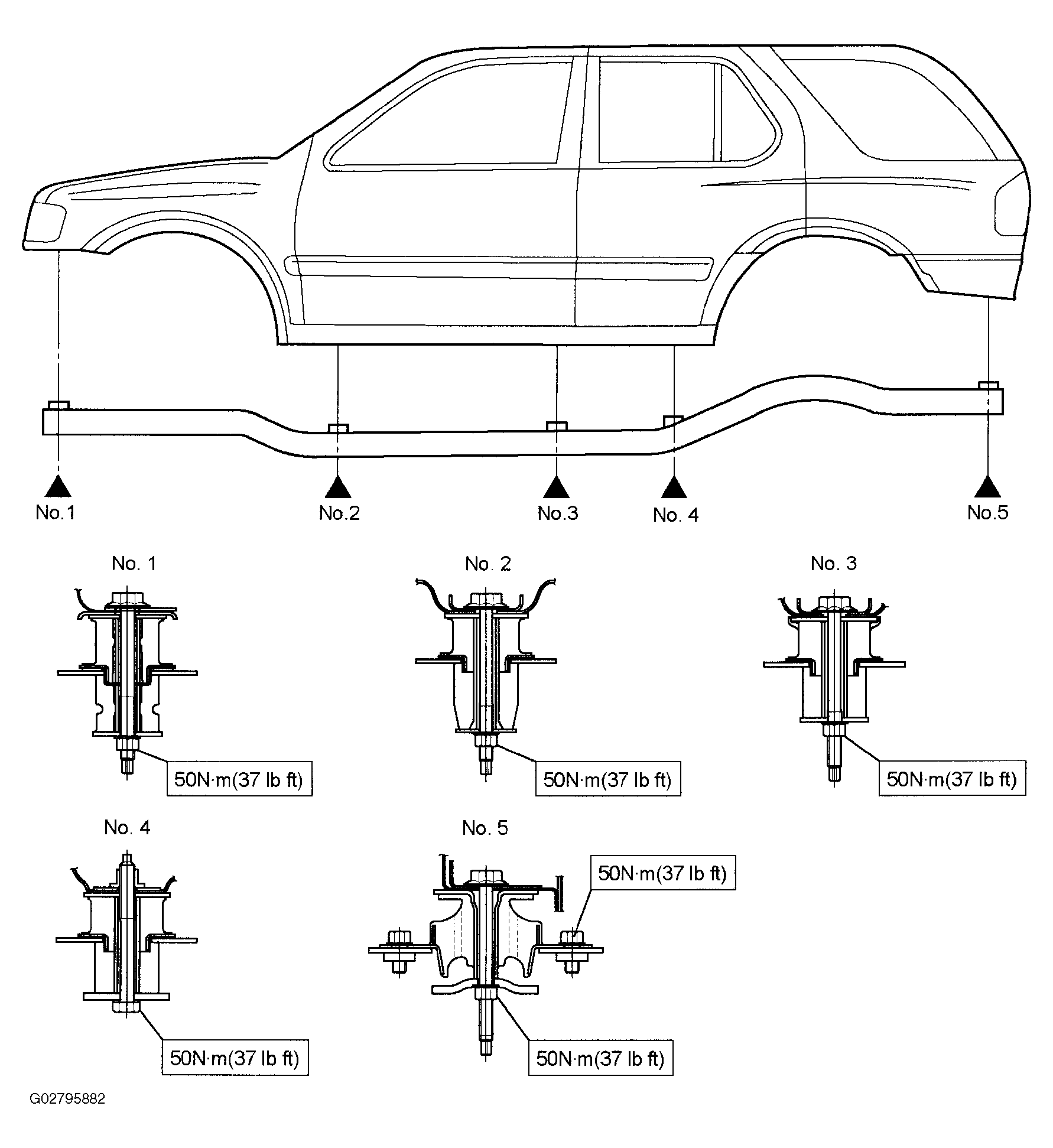

Fig 1: Torque Specification Of Body Structure (1 Of 7)

Courtesy of ISUZU MOTOR CO.

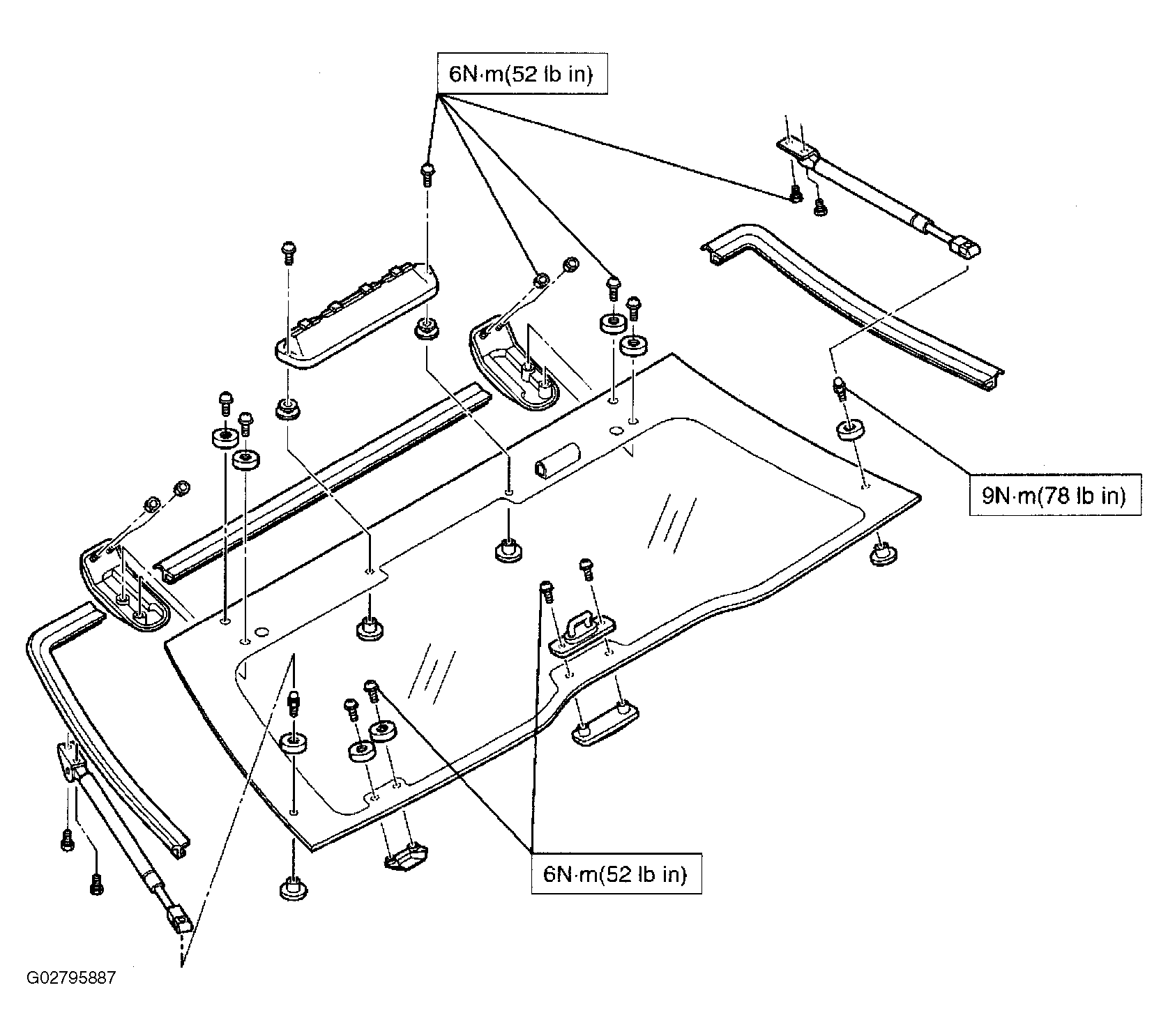

Fig 2: Torque Specification Of Body Structure (2 Of 7)

Courtesy of ISUZU MOTOR CO.

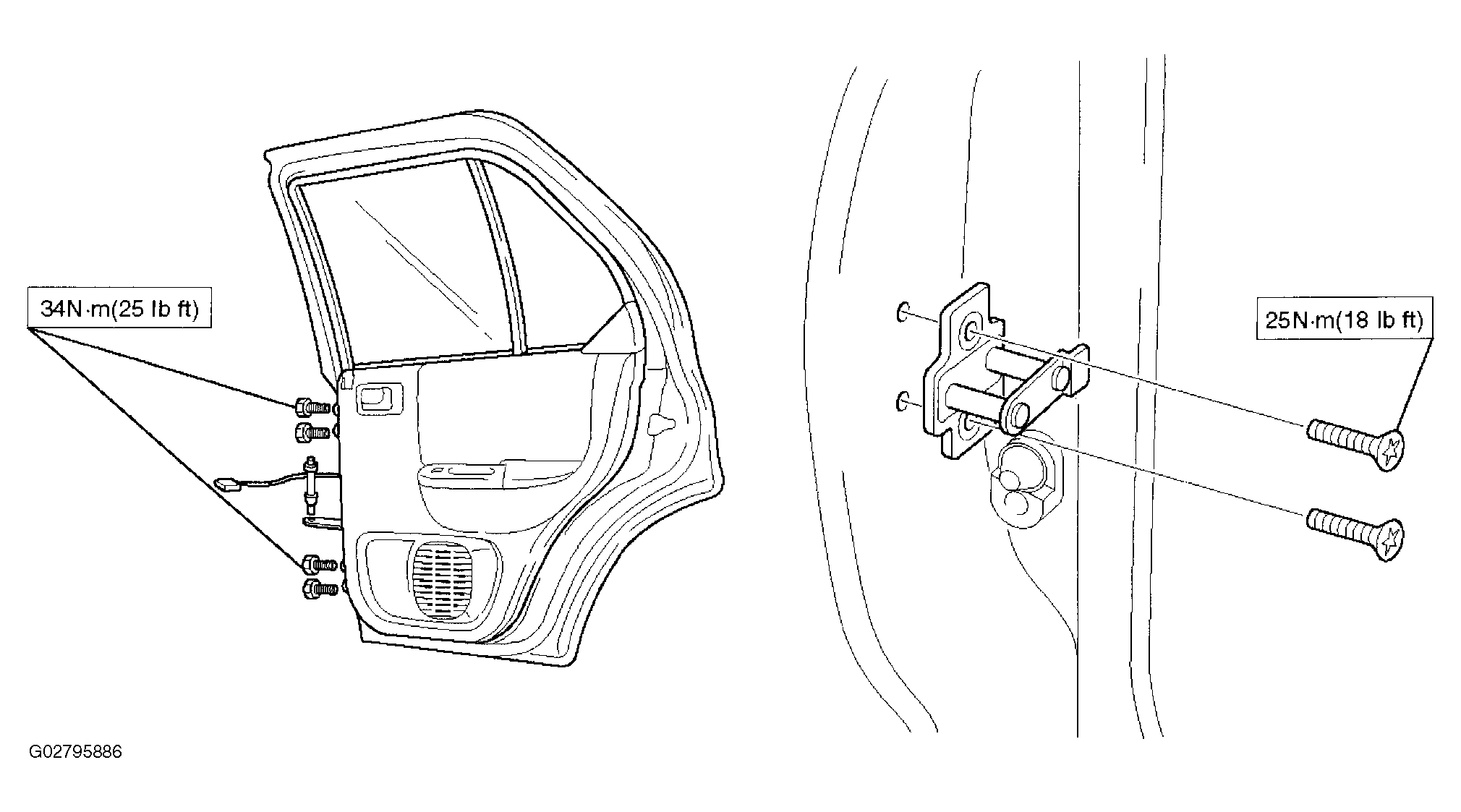

Fig 3: Torque Specification Of Body Structure (3 Of 7)

Courtesy of ISUZU MOTOR CO.

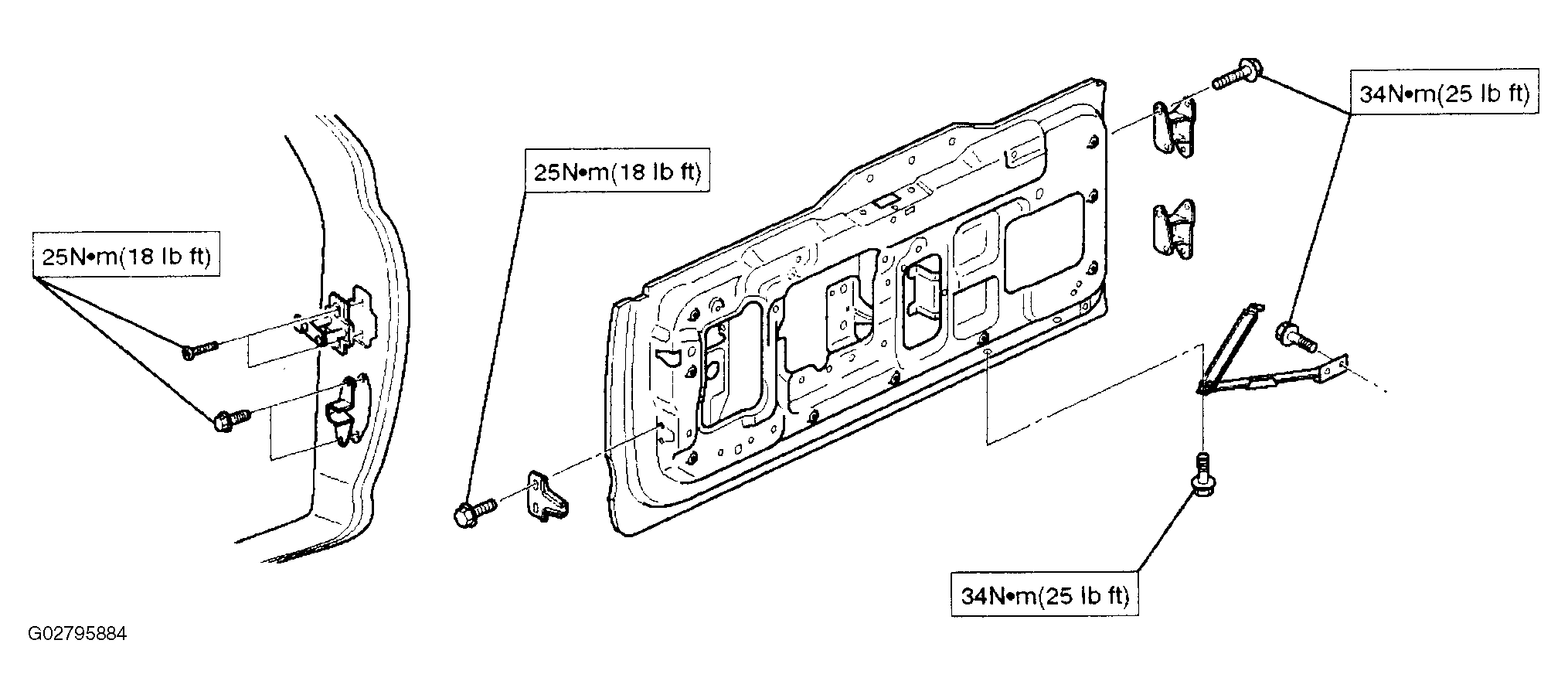

Fig 4: Torque Specification Of Body Structure (4 Of 7)

Courtesy of ISUZU MOTOR CO.

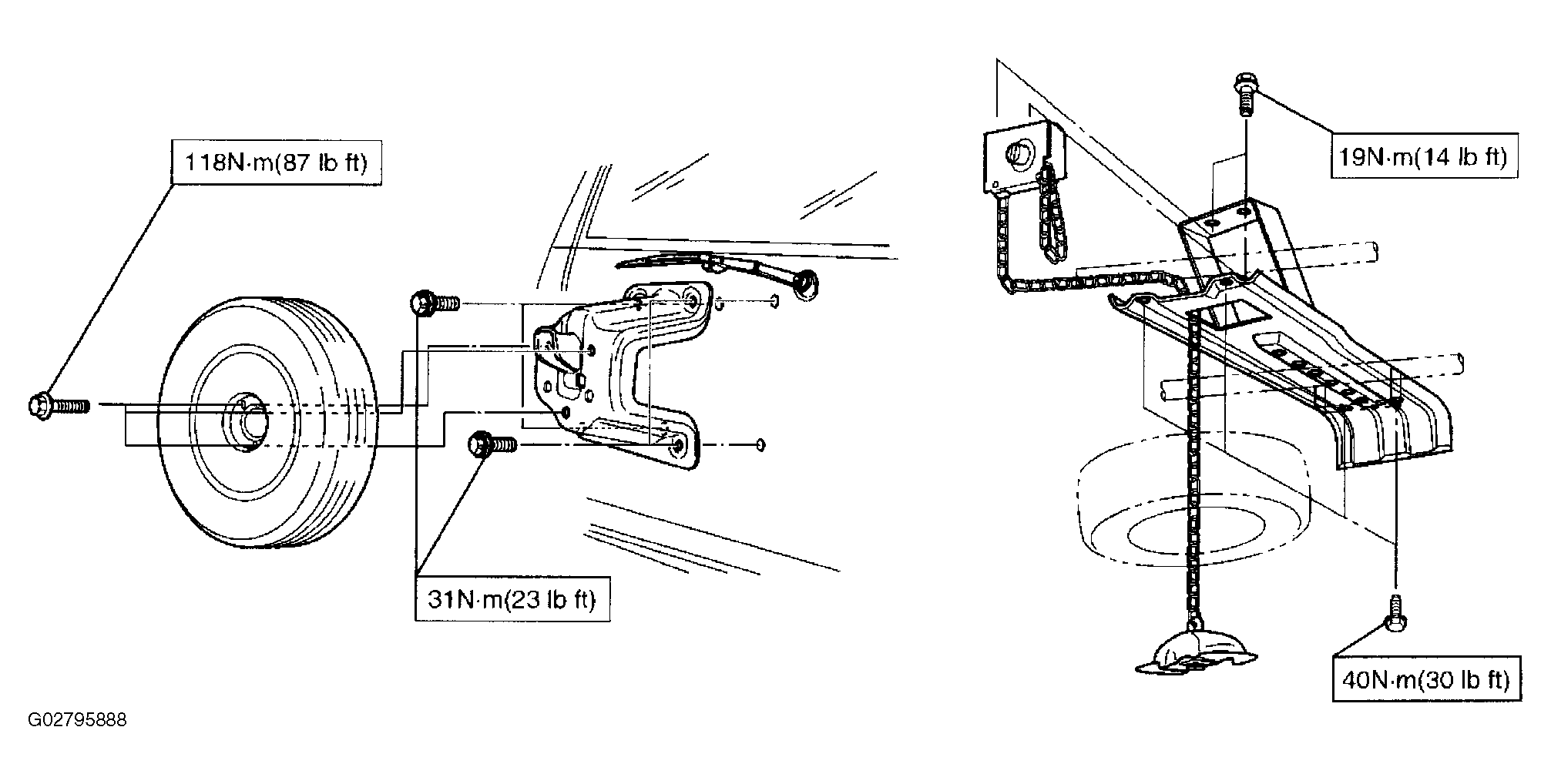

Fig 5: Torque Specification Of Body Structure (5 Of 7)

Courtesy of ISUZU MOTOR CO.

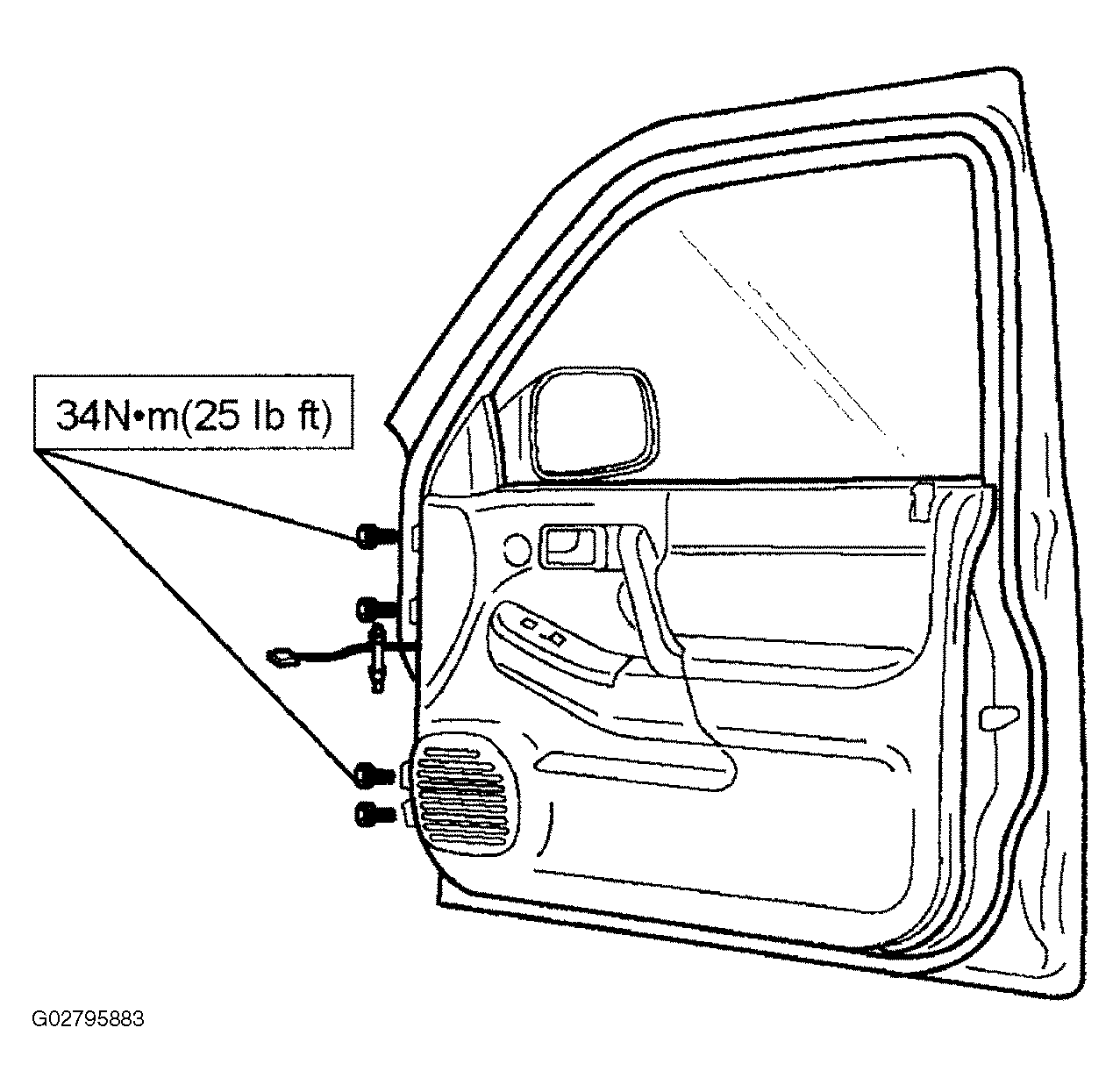

Fig 6: Torque Specification Of Body Structure (6 Of 7)

Courtesy of ISUZU MOTOR CO.

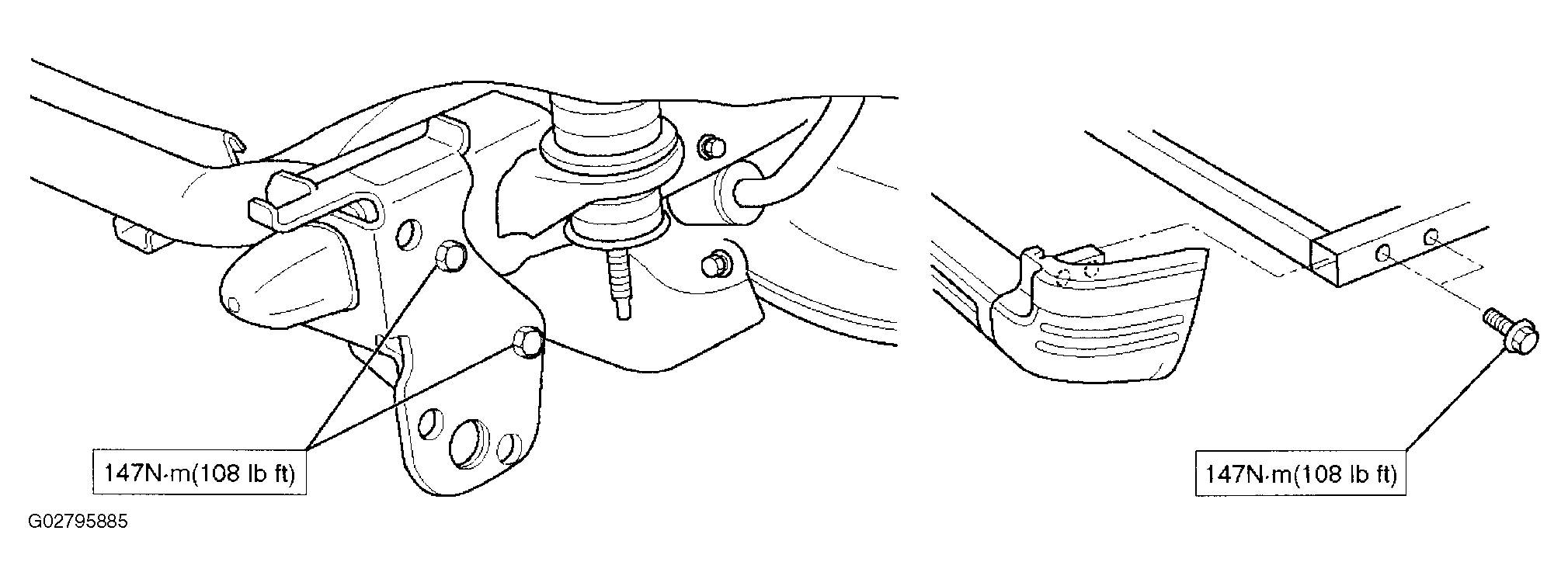

Fig 7: Torque Specification Of Body Structure (7 Of 7)

Courtesy of ISUZU MOTOR CO.
