Torque Specifications

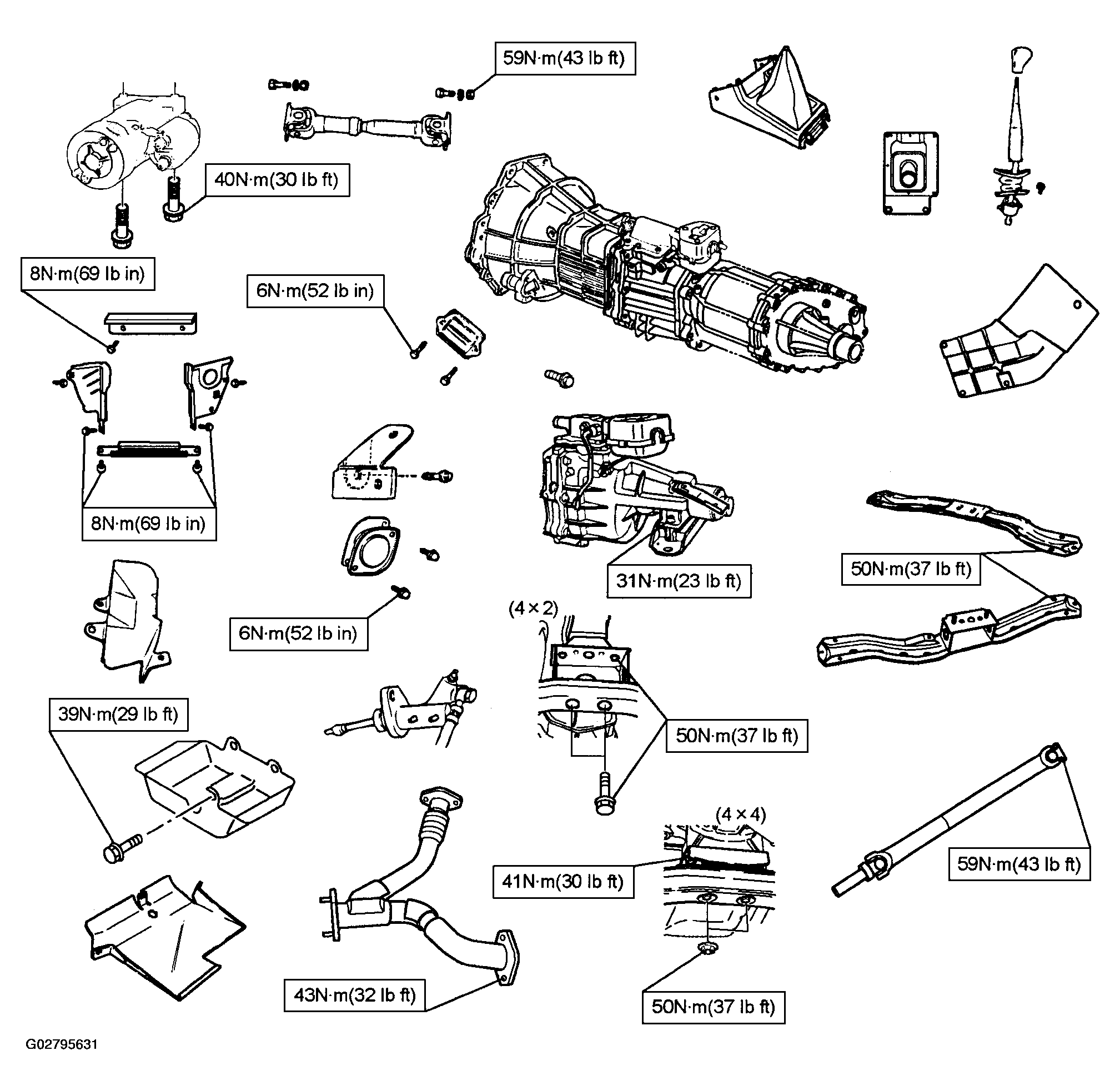

Fig 1: Torque Specifications Table (1 Of 3)

G02795631

Courtesy of ISUZU MOTOR CO.

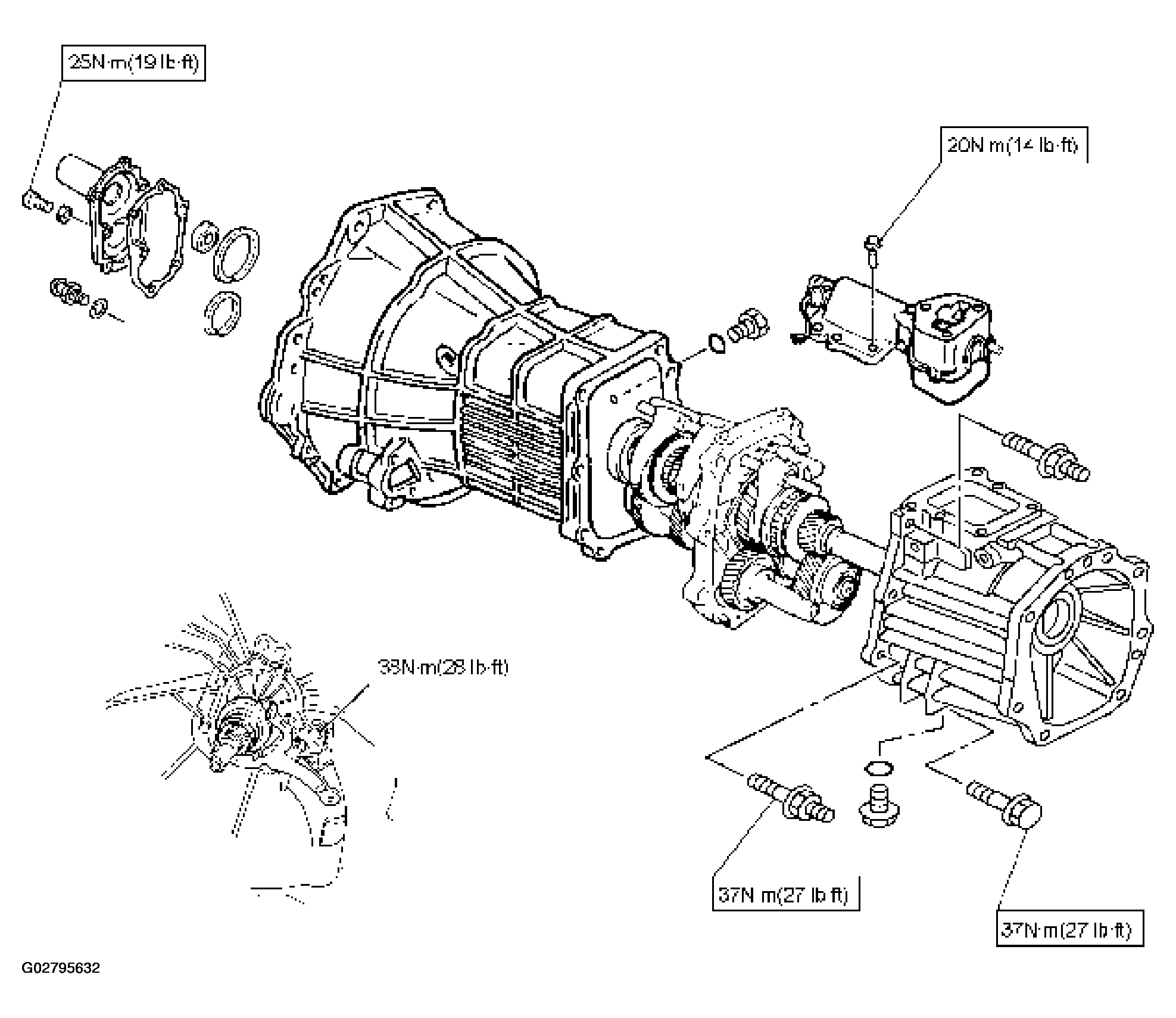

Fig 2: Torque Specifications Table (2 Of 3)

G02795632

Courtesy of ISUZU MOTOR CO.

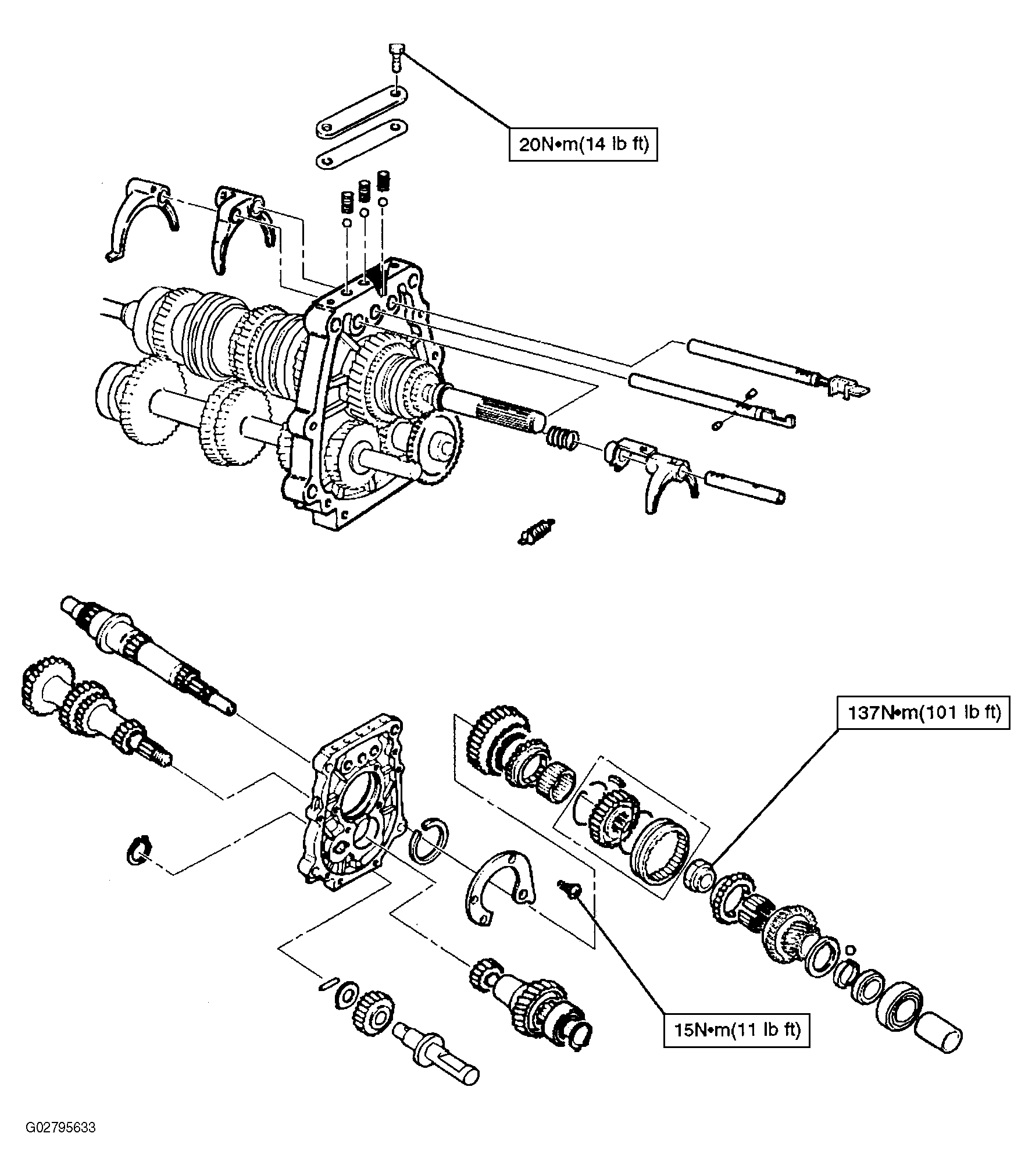

Fig 3: Torque Specifications Table (3 Of 3)

G02795633

Courtesy of ISUZU MOTOR CO.
