Upper Control Arm: Removal

  1. Raise the vehicle and support the frame with suitable safety stands.
  2. Remove wheel and tire assembly. Refer to WHEEL .
  3. Remove the brake caliper and disconnect brake pipe. Refer to DISC & DRUM .
  4. Support lower control arm with a jack.
  5. Remove speed sensor cable.
  6. Remove nut and cotter pin then use remover J-36831.
    CAUTION: Be careful not to damage the ball joint boot.

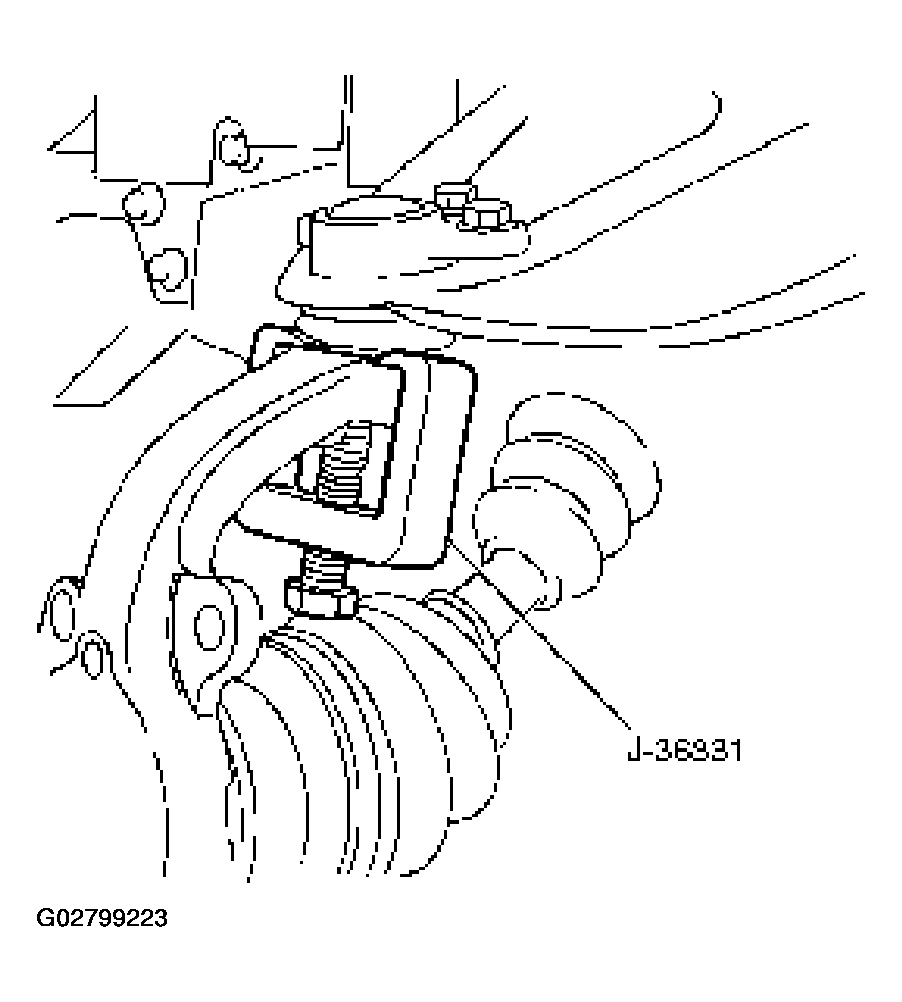

    Fig 1: Removing Nut & Cotter Pin Using Remover J-36831
    G02799223Courtesy of ISUZU MOTOR CO.
  7. Remove upper ball joint.
  8. Remove bolt and plate.
  9. Remove nut assembly.
  10. Remove camber shims and note the positions and number of shims.
  11. Remove caster shims and note the positions and number of shims.
  12. Remove upper control arm assembly.
  13. Remove nut (9).
  14. Remove plate (8).
  15. Remove bushing (7) by using remover J-29755.

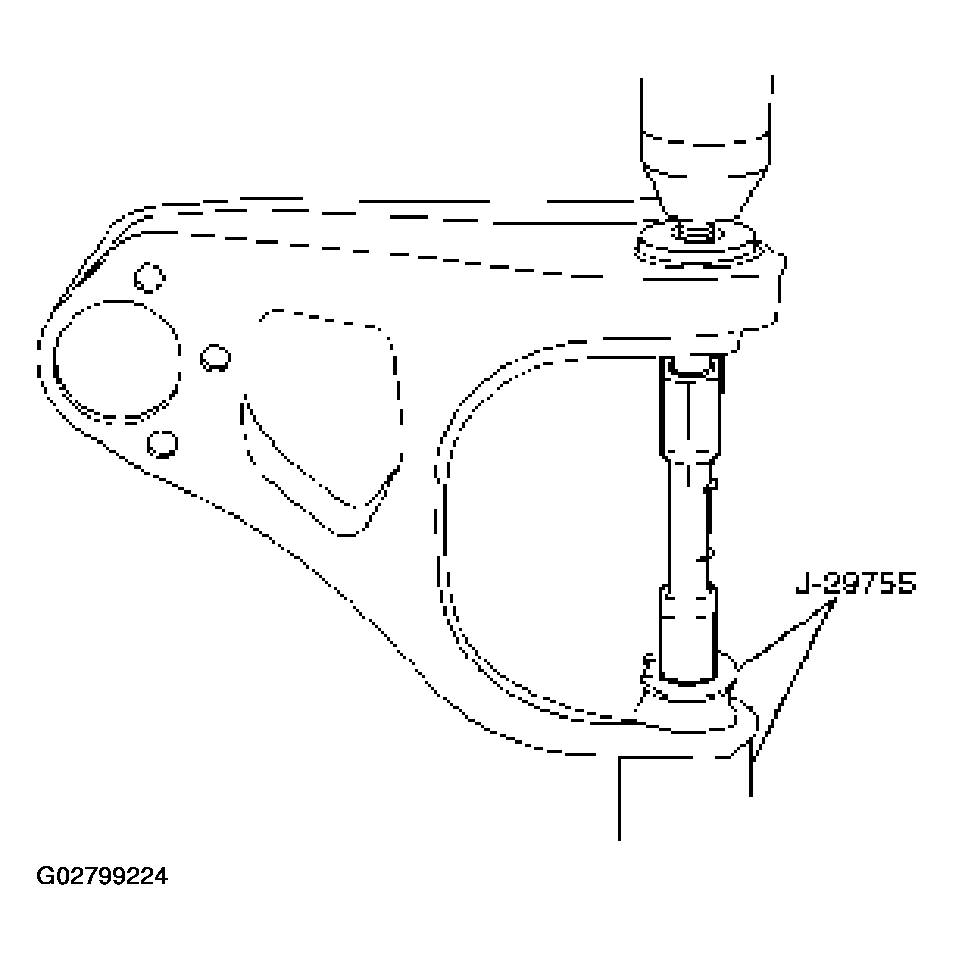

    Fig 2: Removing Bushing Using Remover J-29755 (1 Of 2)
    G02799224Courtesy of ISUZU MOTOR CO.

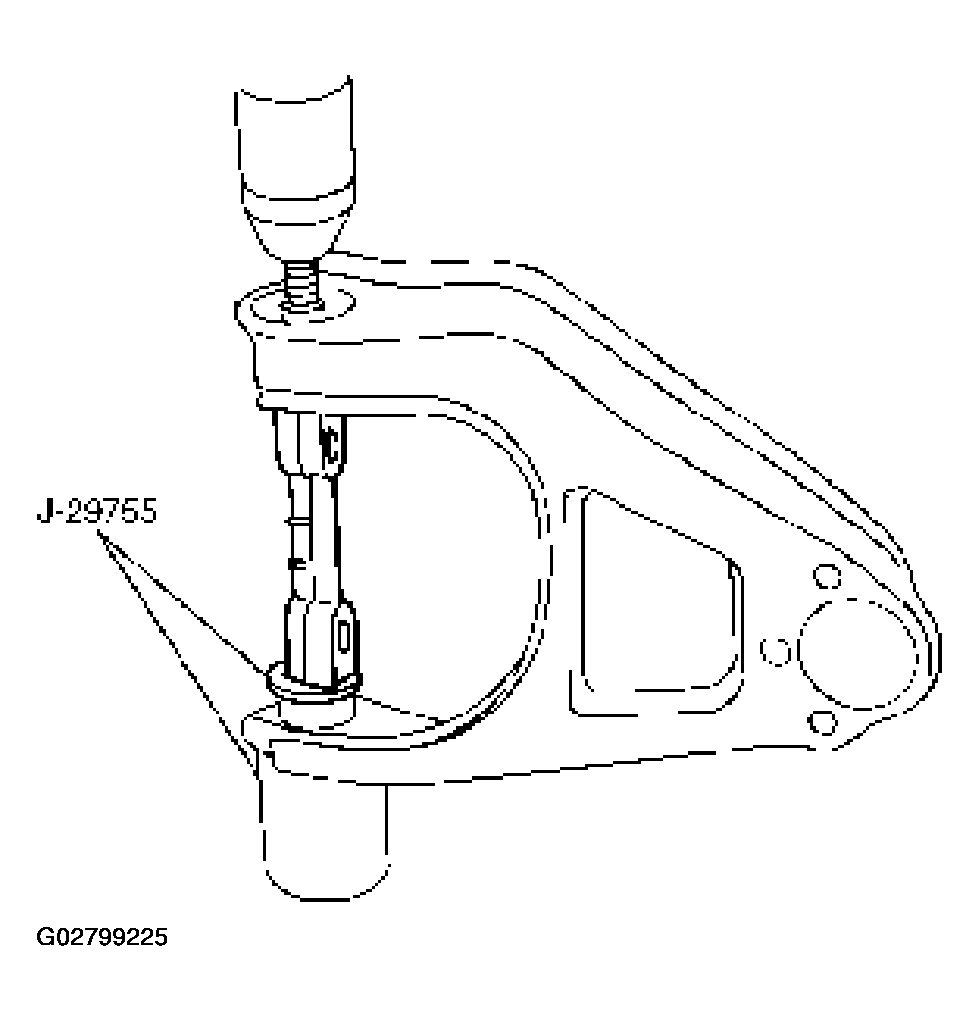

    Fig 3: Removing Bushing Using Remover J-29755 (2 Of 2)
    G02799225Courtesy of ISUZU MOTOR CO.
  16. Remove fulcrum pin (6).
