Toe-in Adjustment

  1. To adjust the toe-in angle, loosen the lock nuts (2) on the tie rod (1) and turn the tie rod. Turn both rods the same amount, to keep the steering wheel centered.
    1. Toe-in:  0 to +2 mm (0 to +0.08 in)

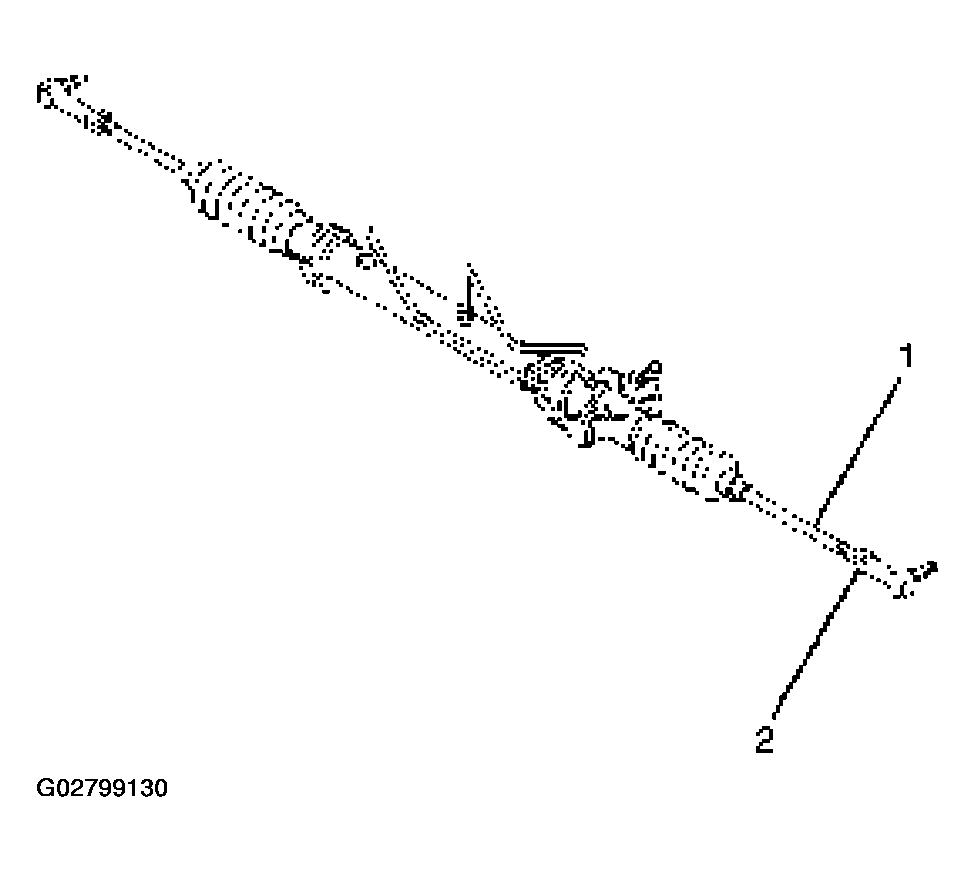

    Fig 1: Adjusting Toe-In
    G02799130Courtesy of ISUZU MOTOR CO.
  2. Tighten the lock nut to the specified torque.
    1. Torque:  98 N.m (72 lb ft)
