Section 10 (Transmission Control System (Aw30-40LS) (V63.5L))
>>
General Description
>>
Transmission Control Module (TCM)
Transmission Control Module (TCM)
WARNING:
This page is about a different variant/trim than selected.

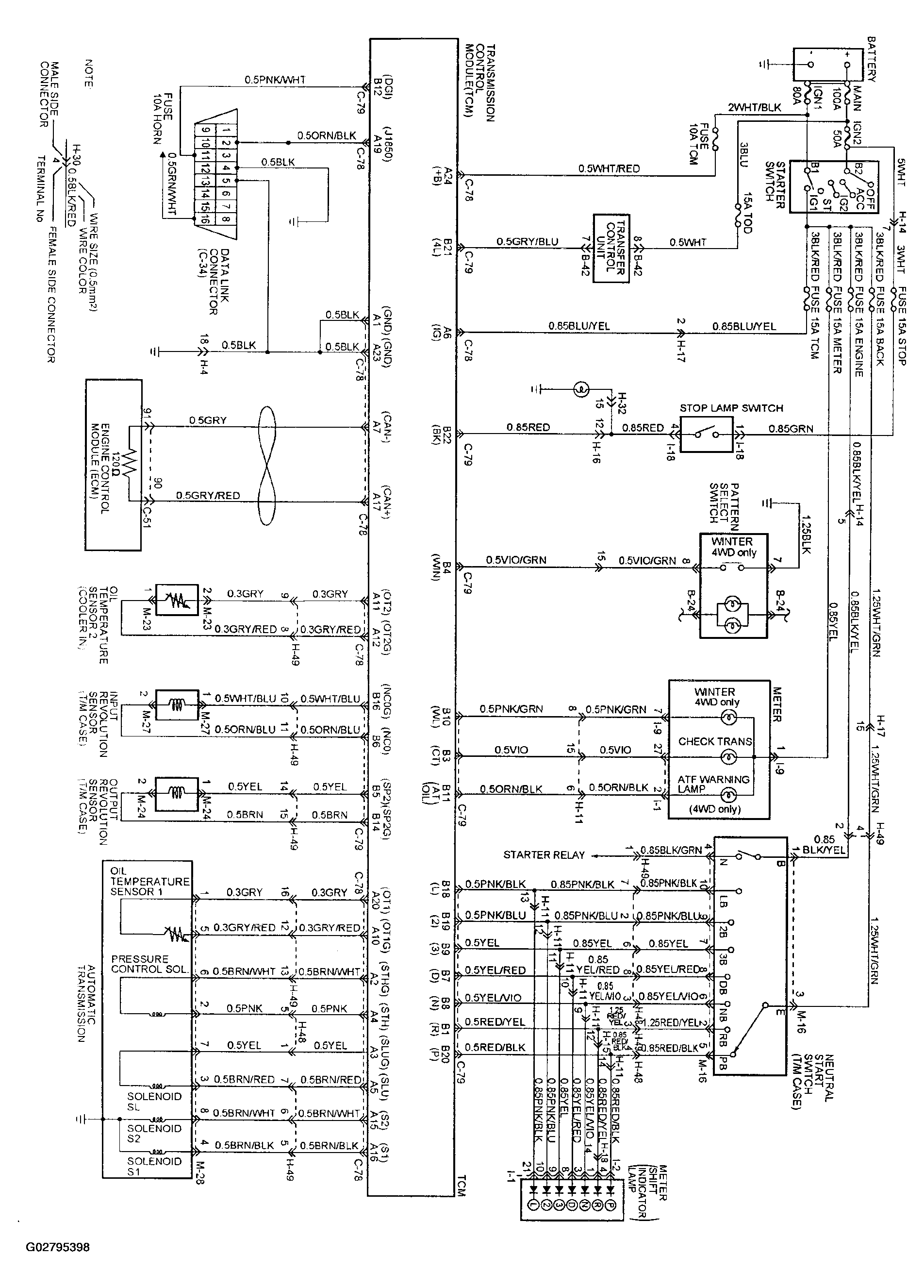

Fig 1: Identifying Transmission Control Module (TCM) Circuit
Courtesy of ISUZU MOTOR CO.
