TCM Point Table

WARNING: This page is about a different variant/trim than selected.

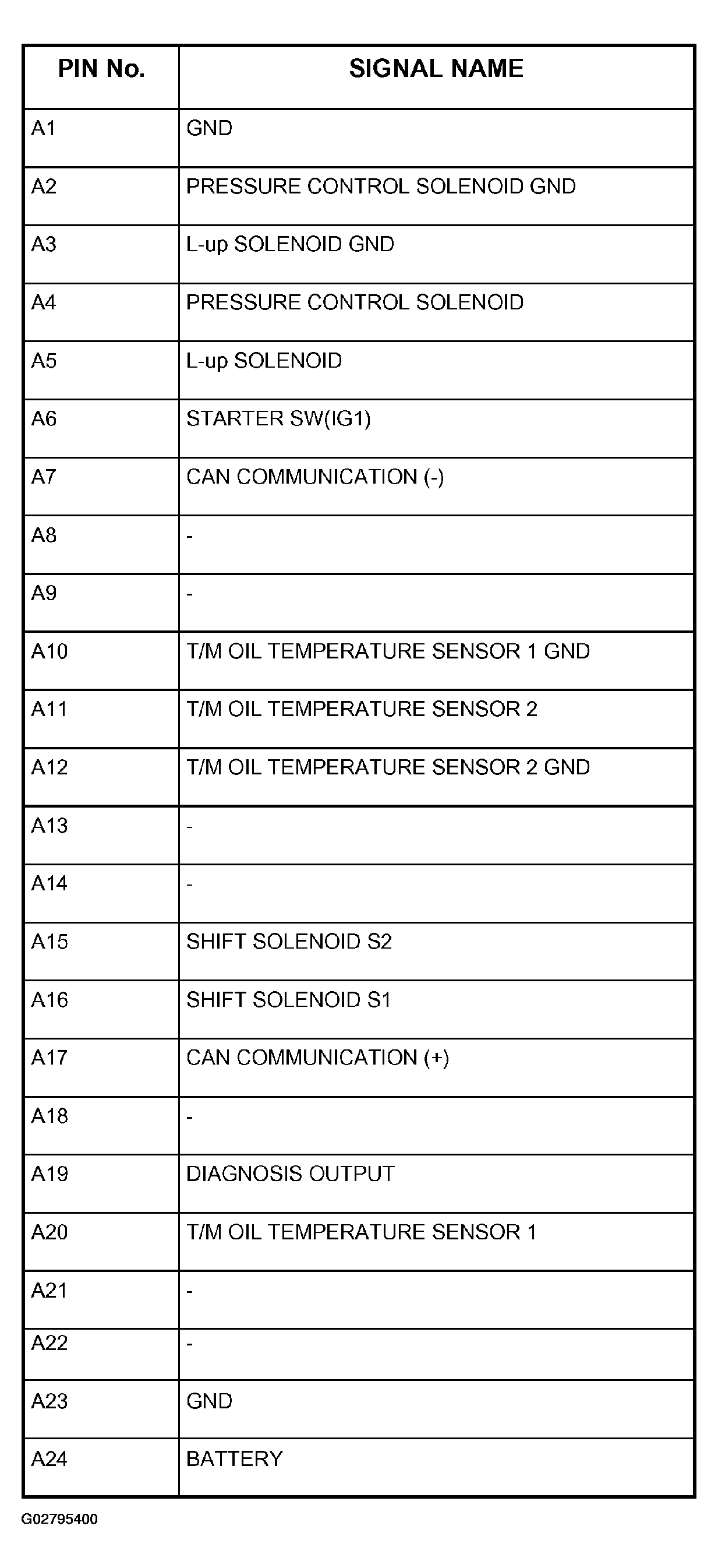

Fig 1: Identifying TCM Point Connector (1 Of 3)

Courtesy of ISUZU MOTOR CO.

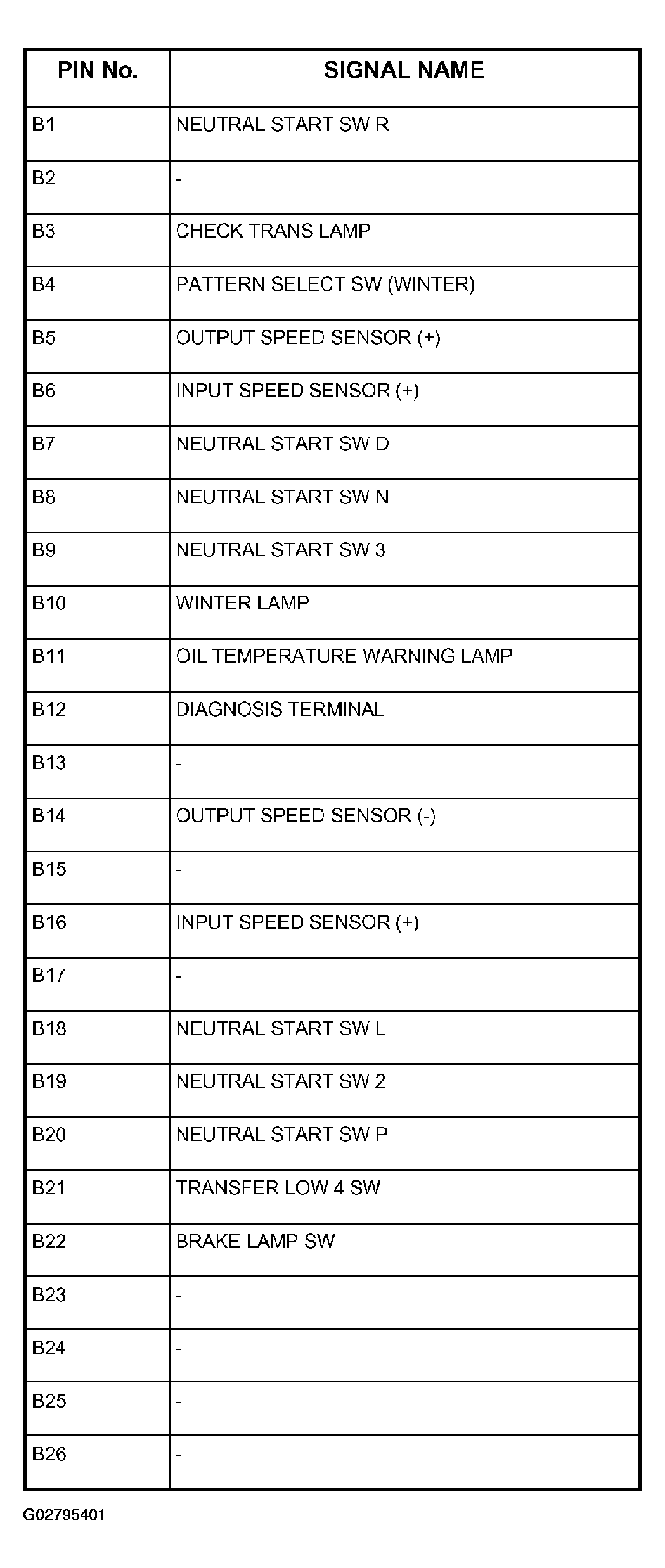

Fig 2: Identifying TCM Point Connector (2 Of 3)

Courtesy of ISUZU MOTOR CO.

Fig 3: Identifying TCM Point Connector (3 Of 3)

Courtesy of ISUZU MOTOR CO.
