Section 10 (Transmission Control System (Aw30-40LS) (V63.5L))
>>
General Description
>>
Functions of Input/Output Components
Functions of Input/Output Components
WARNING:
This page is about a different variant/trim than selected.

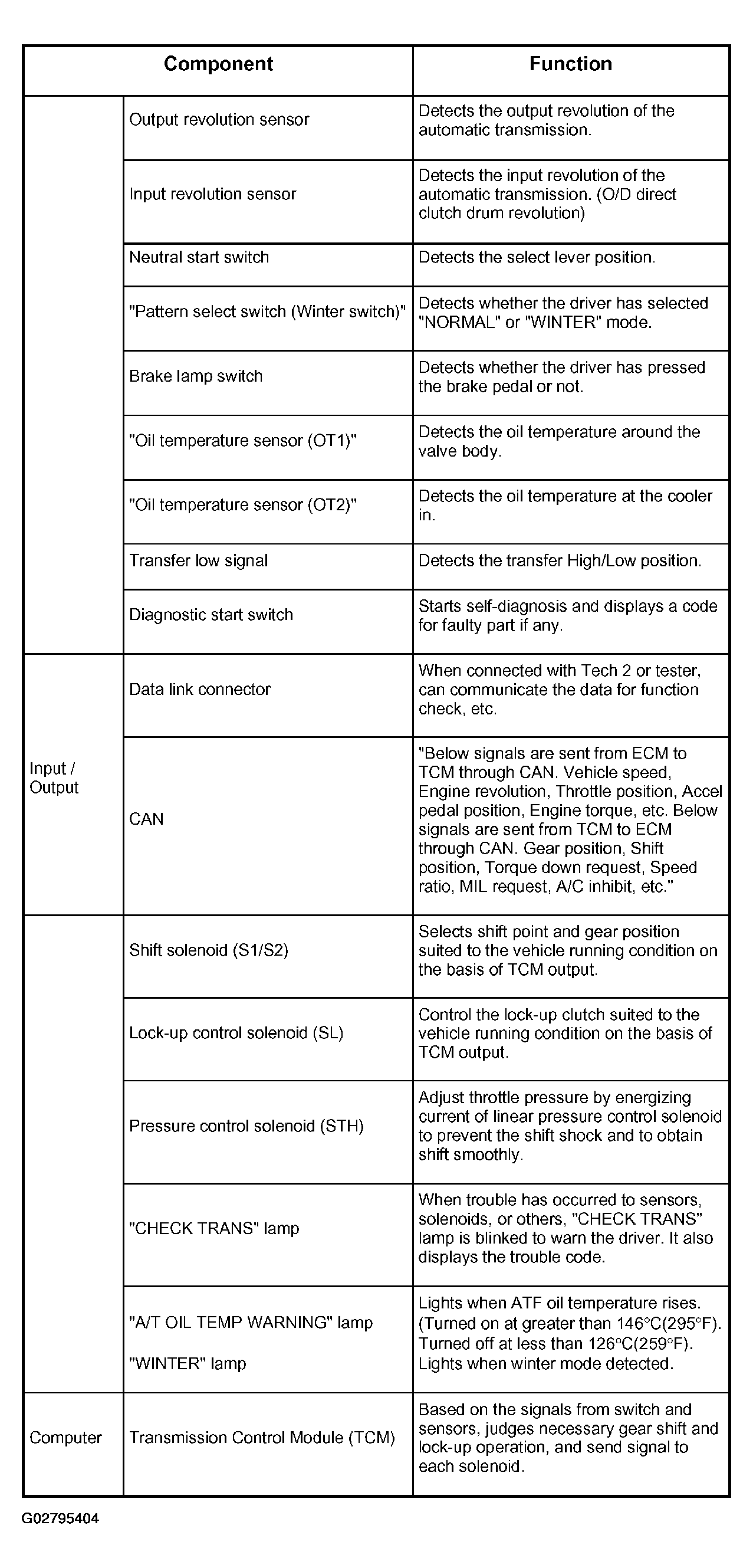

Fig 1: Component Function Chart
Courtesy of ISUZU MOTOR CO.
