Body Structure: Tailgate: Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. When setting up links, pay attention to the position and direction of the links.

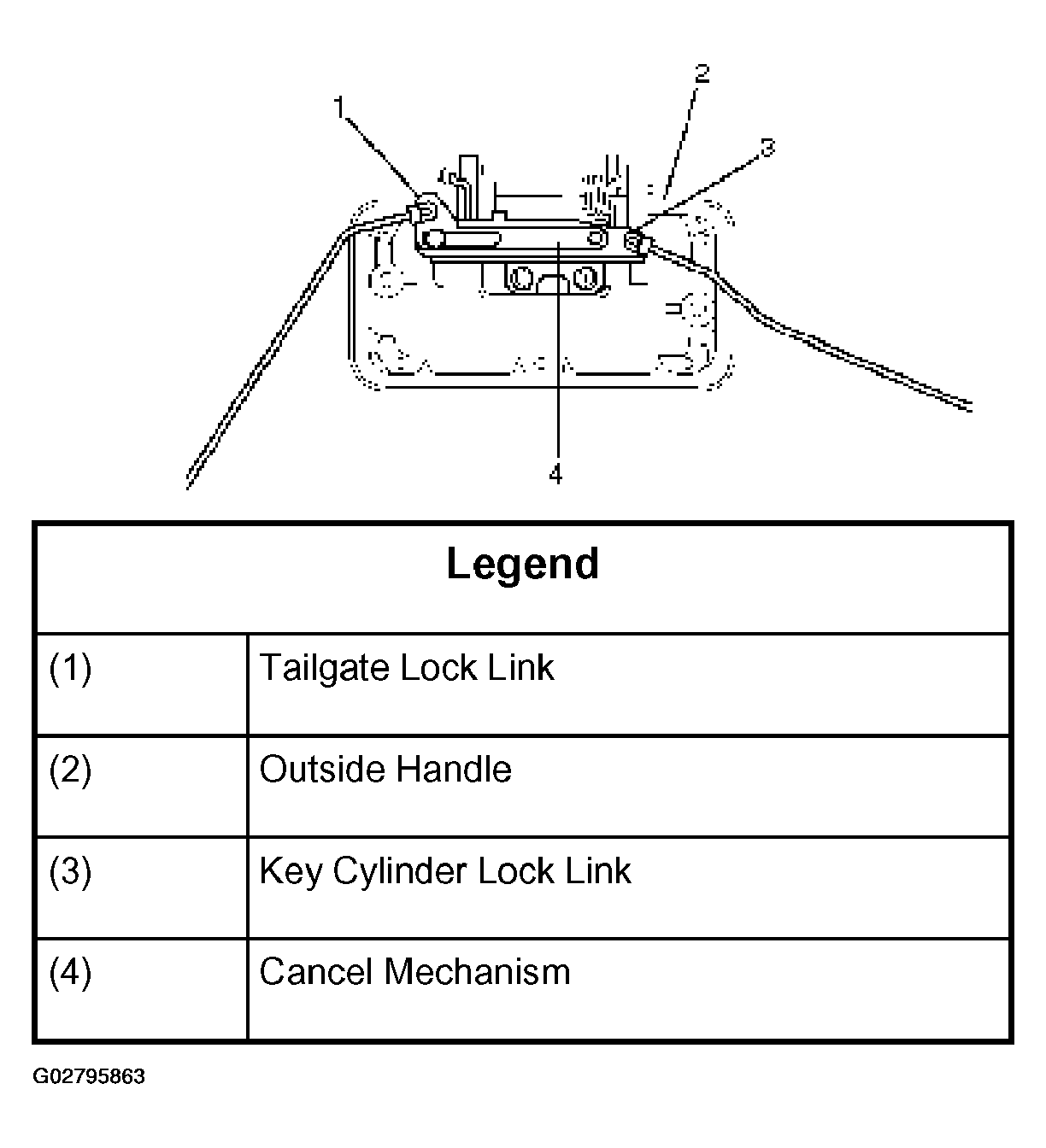

   Fig 1: Identifying Positions & Directions Of Rod Links

   Courtesy of ISUZU MOTOR CO.
2. Tighten the tailgate hinge fixing bolts to the specified torque. Torque:  34 N.m (25 lb ft)
3. Tighten the tailgate stopper link fixing bolts to the specified torque. Torque:  34 N.m (25 lb ft)
4. Tighten the dove tail fixing bolts to the specified torque. Torque:  25 N.m (19 lb ft)
