Front Fender Panel: Removal

  1. Disconnect the battery ground cable.
  2. Remove the radiator grille assembly.
  3. Remove the front turn signal light assembly.
    • Remove the fixing screw and disconnect the connector.

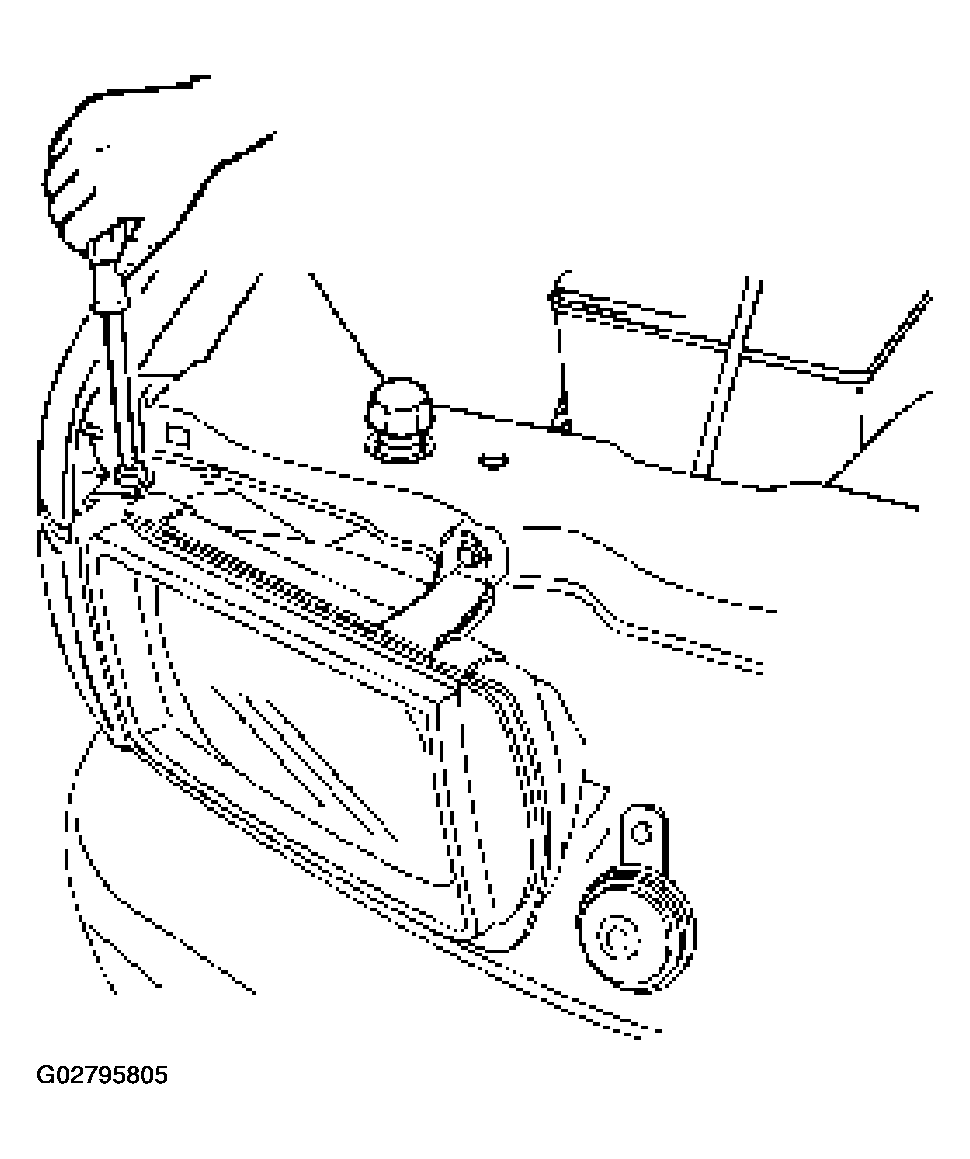

      Fig 1: Removing Front Turn Signal Light Assembly
      G02795805Courtesy of ISUZU MOTOR CO.
  4. Remove the front mud flap.
  5. Remove the inner liner.

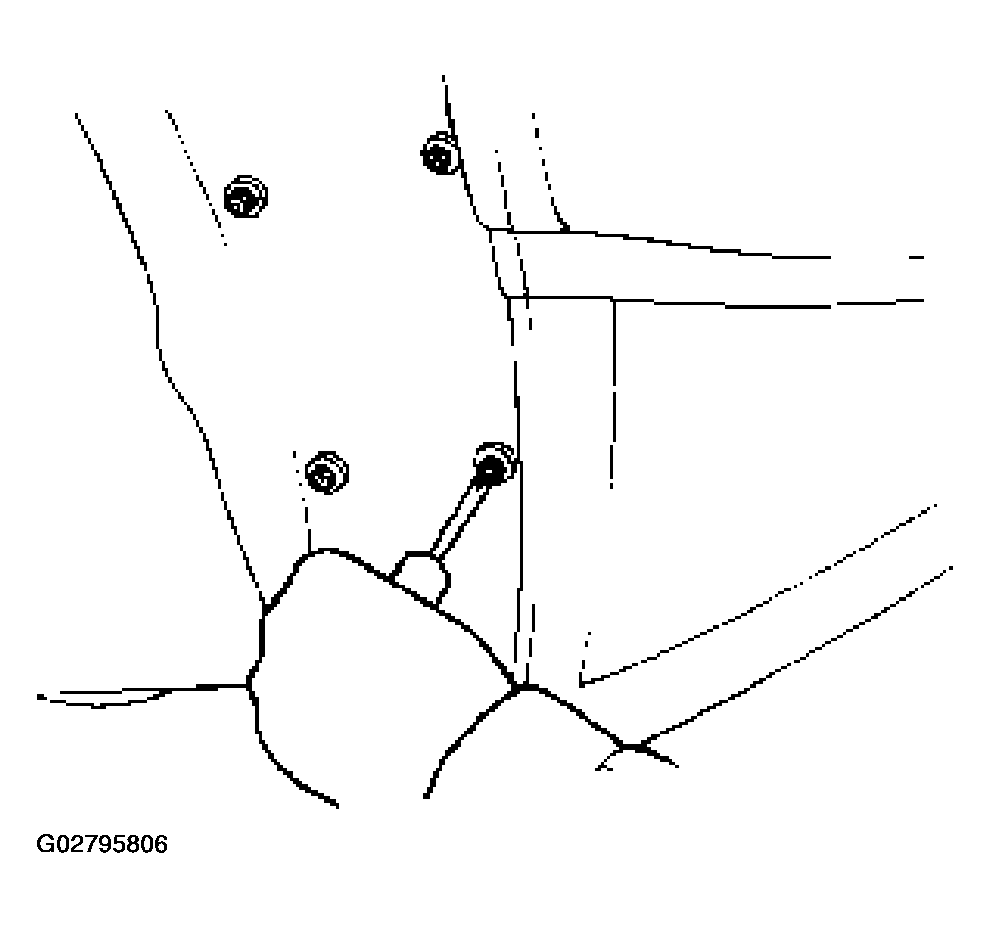

    Fig 2: Removing Inner Liner
    G02795806Courtesy of ISUZU MOTOR CO.
  6. Remove the antenna assembly.
  7. Remove the front fender panel.
    • Remove the eight fixing bolts.

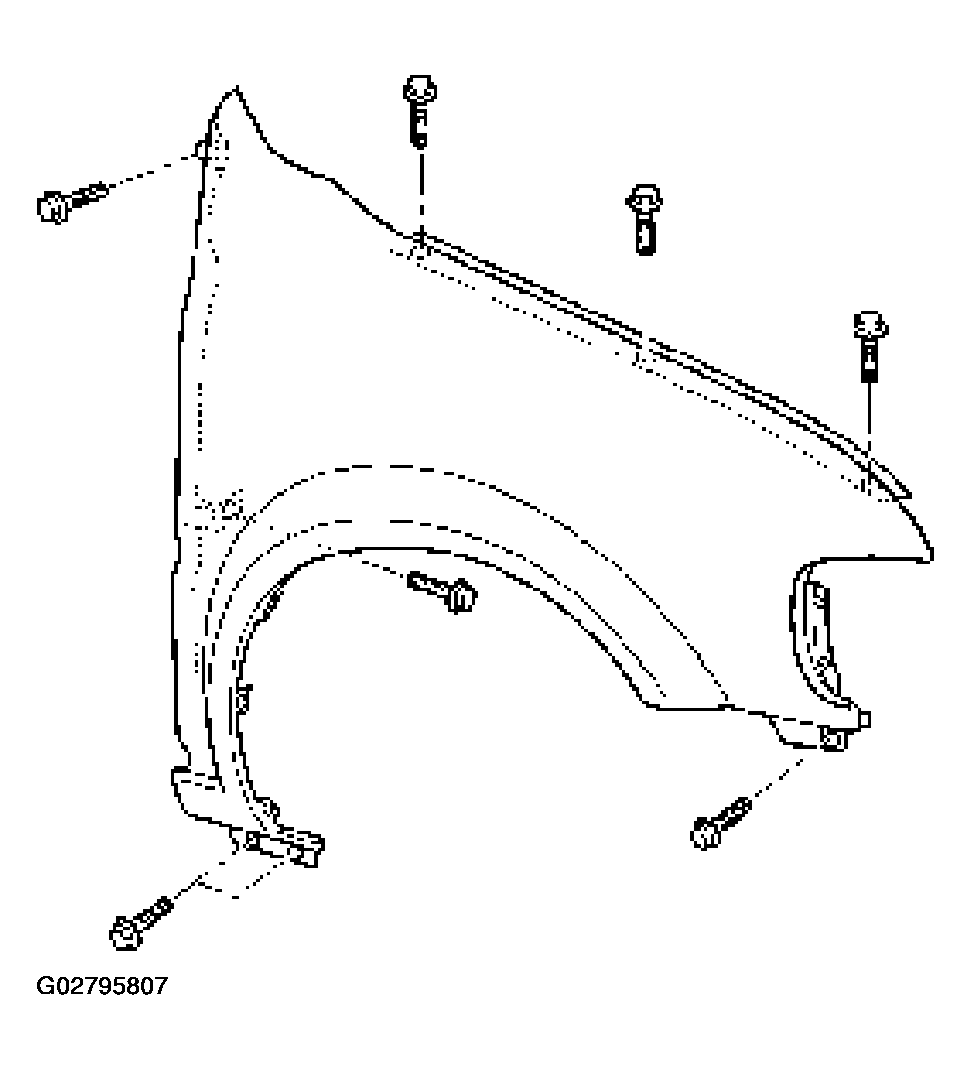

      Fig 3: Removing Front Fender Panel
      G02795807Courtesy of ISUZU MOTOR CO.
  8. Remove the front wheel arch molding (If so equipped).
