Engine Hood: Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. Tighten the engine hood hinge fixing bolts to the specified torque. Torque:  10 N.m (87 lb in)
2. Check the engine hood and fender (1).
   • Clearance:  4.5 mm (0.18 in) Height (step):  0.5 mm (0.02 in)
   • Adjust clearance with the hinges on the engine hood.
   • Adjust height (step) with the hood rests (2).

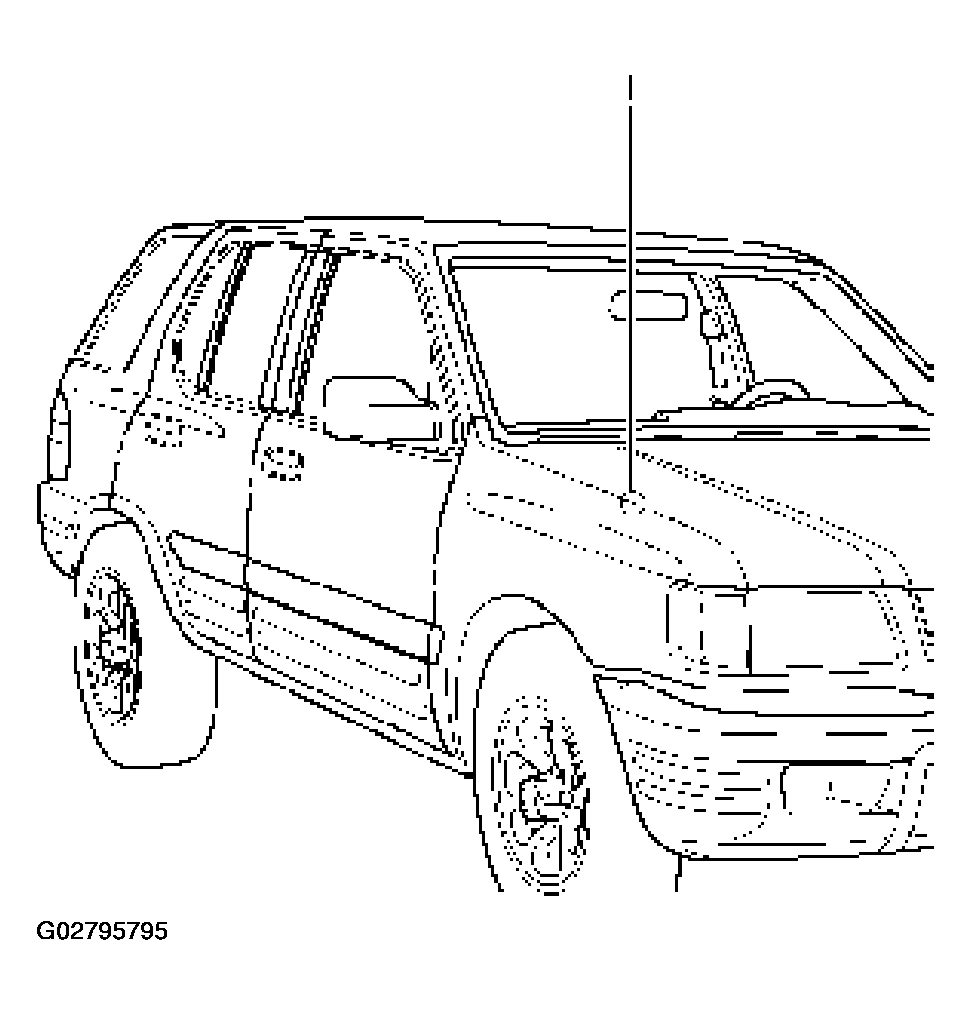

     Fig 1: Checking Engine Hood & Fender

     Courtesy of ISUZU MOTOR CO.

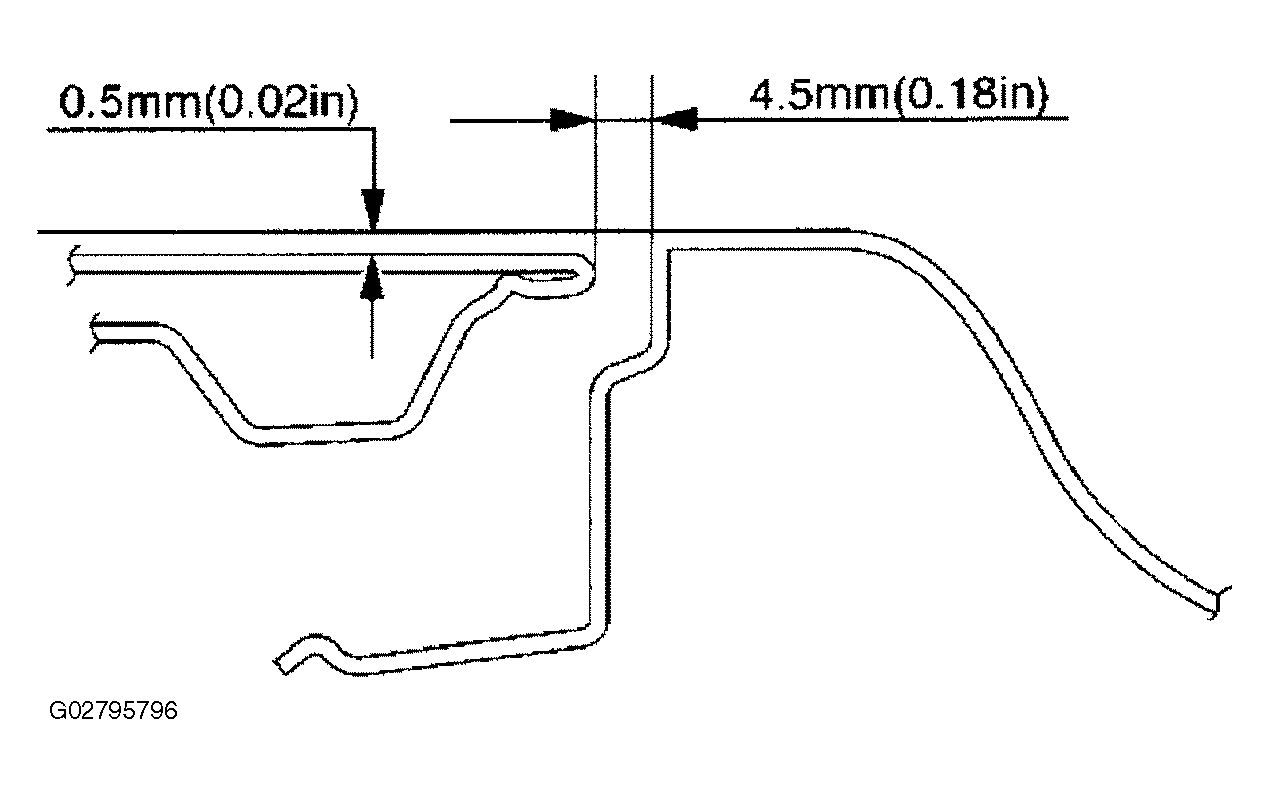

     Fig 2: Adjusting Clearance With Hinges On Engine Hood

     Courtesy of ISUZU MOTOR CO.

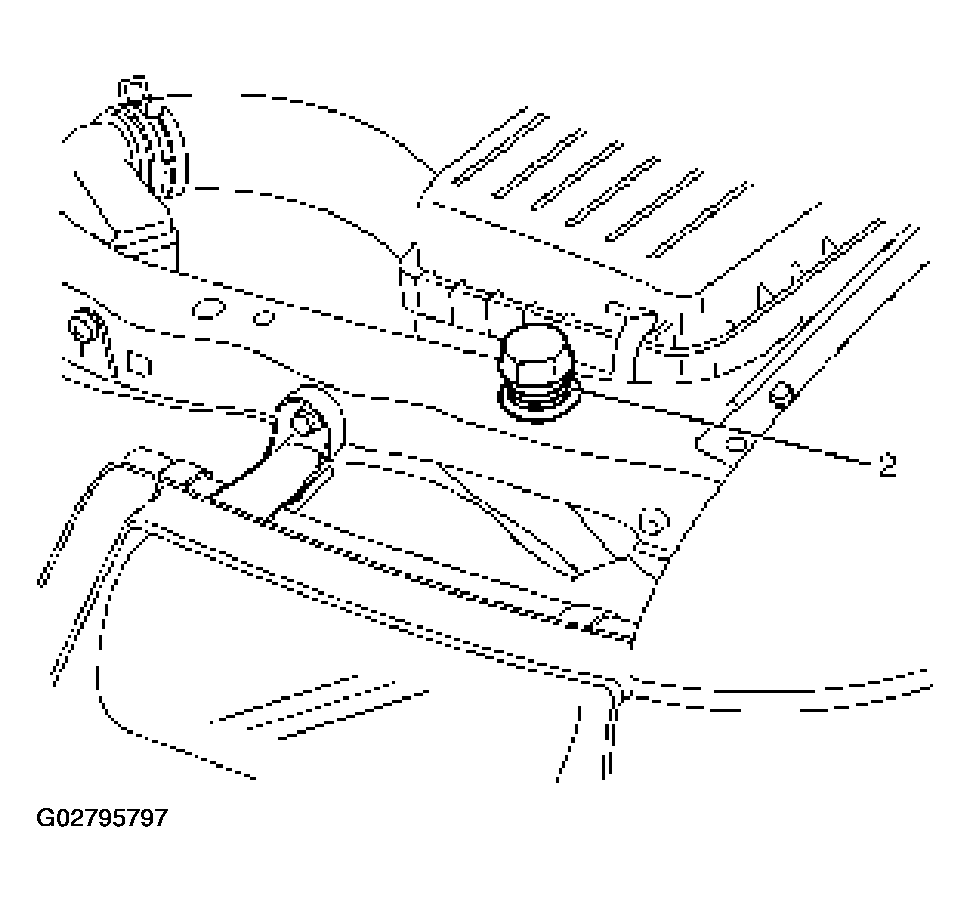

     Fig 3: Adjusting Height (Step) With Hood Rests

     Courtesy of ISUZU MOTOR CO.
