Home >> Isuzu >> 2004 >> Rodeo 3.2 W, 4WD, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security And Locks >> Replacing Transmitter >> Removal

Replacing Transmitter: Removal

  1. Remove the transmitter (3).
    • Remove the fixing screw (1).
    • Open the upper case (2) and lower case (4).
    • Pull out the transmitter (3).

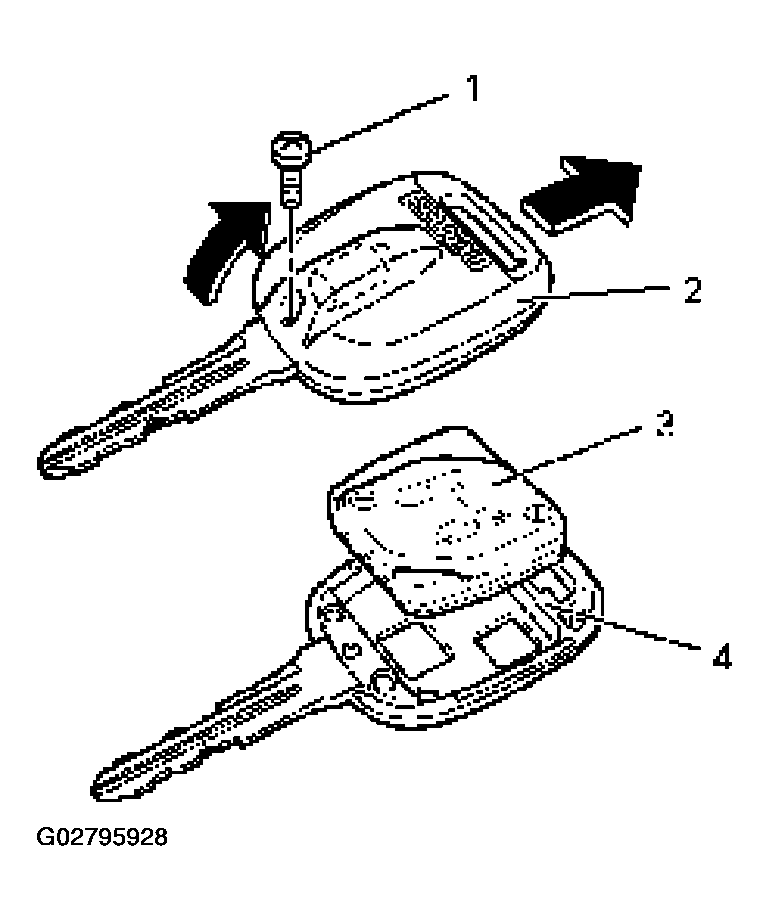

    Fig 1: Removing Fixing Screw
    G02795928Courtesy of ISUZU MOTOR CO.
