Immobilizer System Check
Immobilizer System Check

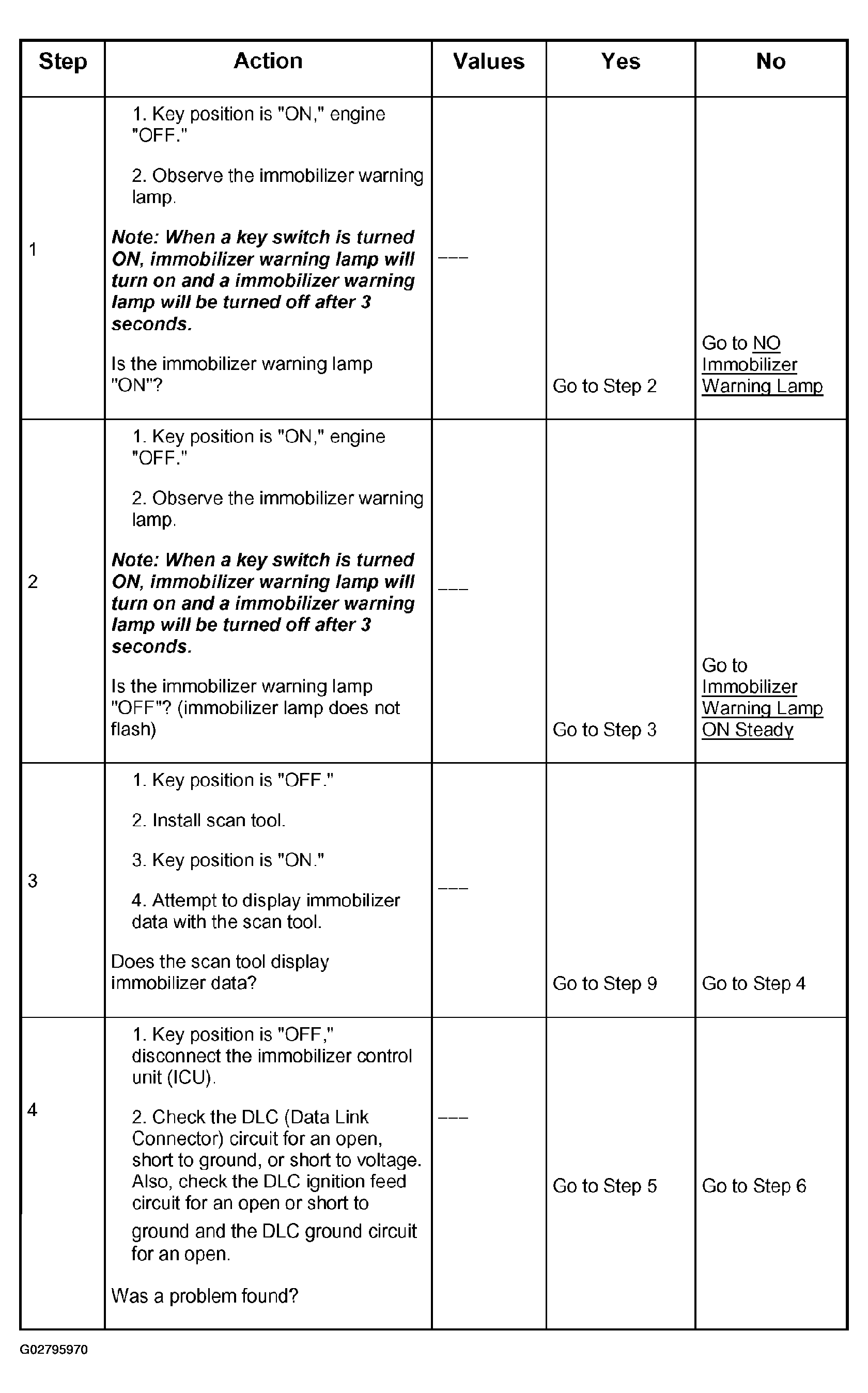

Fig 1: Checking Immobilizer System Chart (1 Of 4)
Courtesy of ISUZU MOTOR CO.

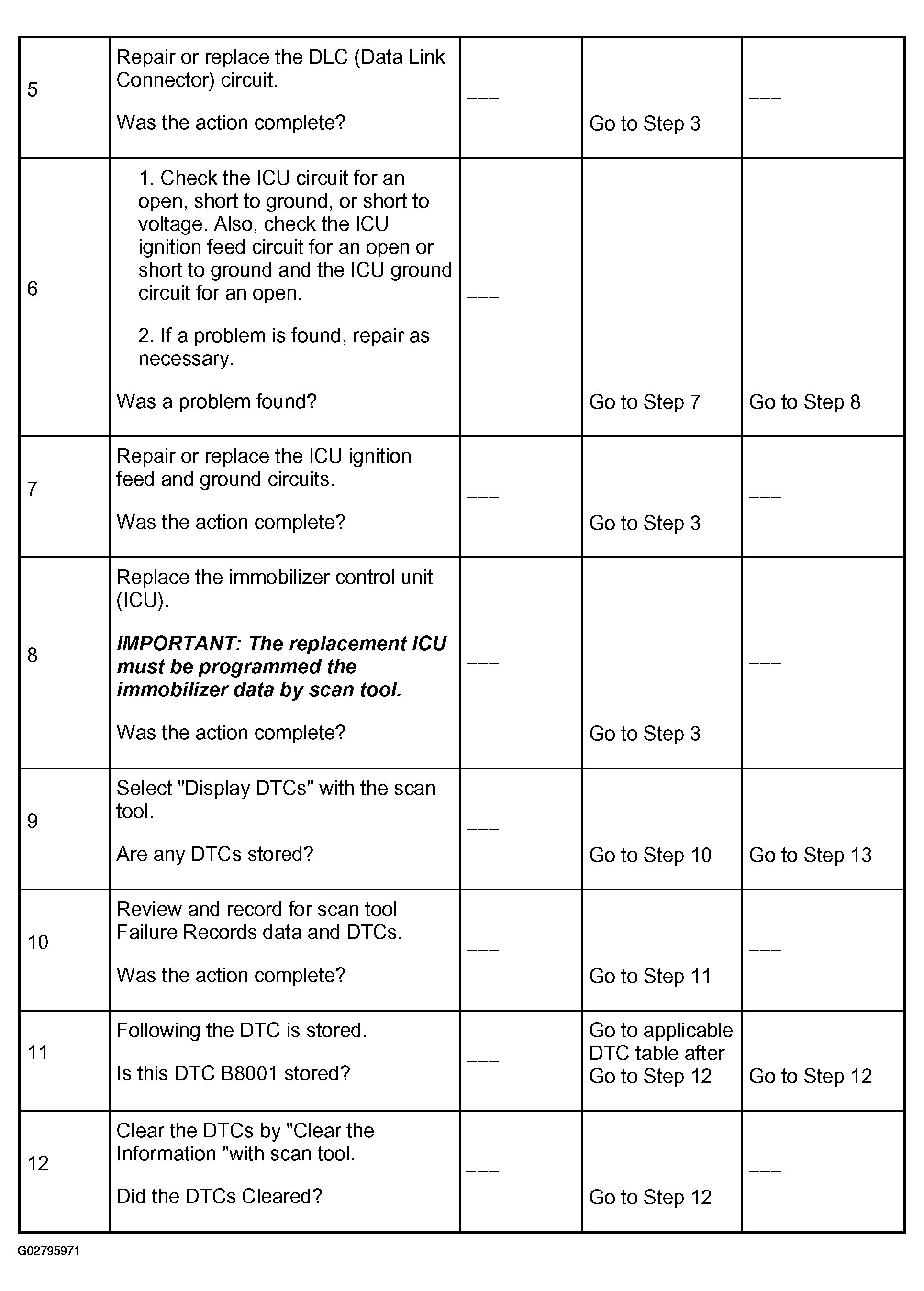

Fig 2: Checking Immobilizer System Chart (2 Of 4)
Courtesy of ISUZU MOTOR CO.

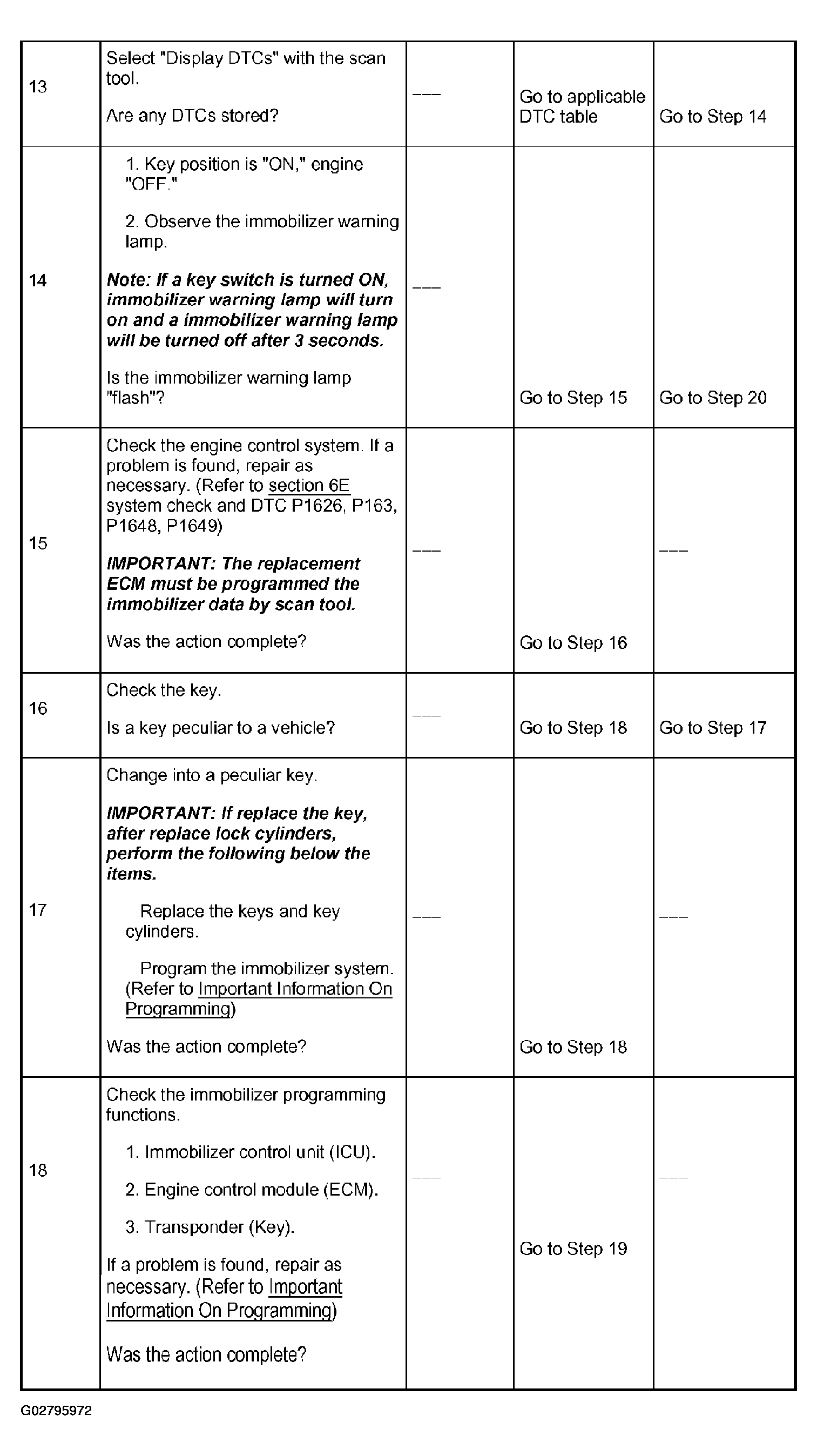

Fig 3: Checking Immobilizer System Chart (3 Of 4)
Courtesy of ISUZU MOTOR CO.

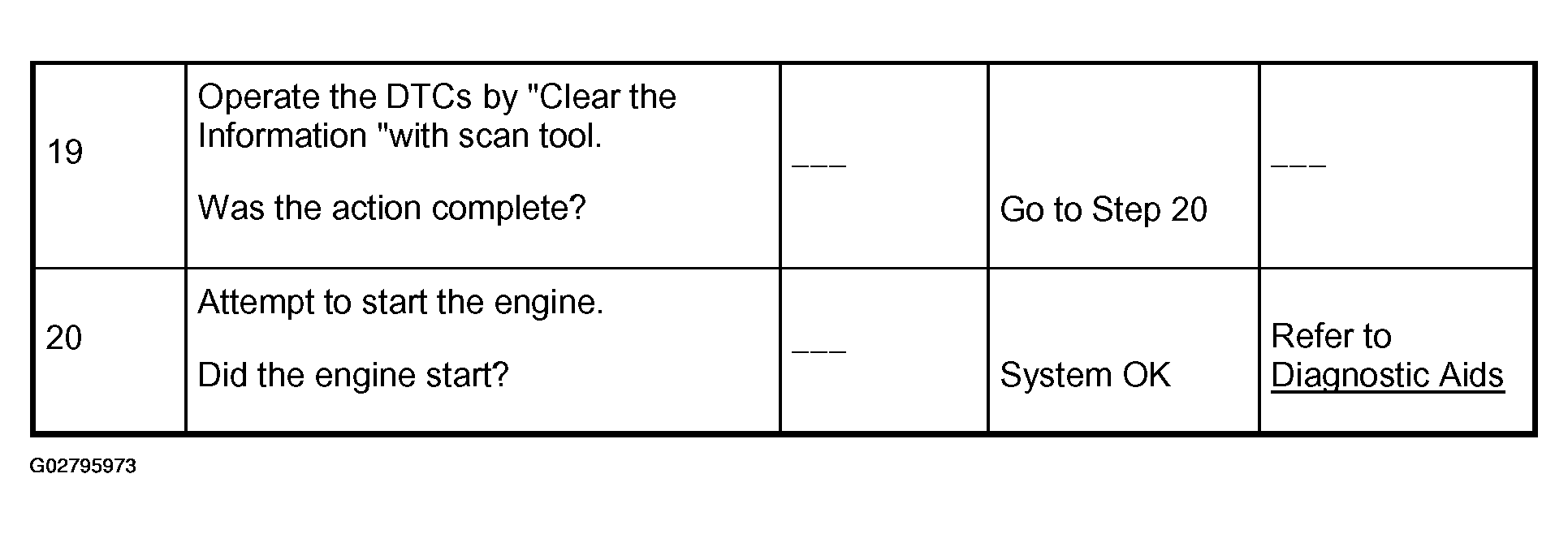

Fig 4: Checking Immobilizer System Chart (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
