B8009 NO Transponder Key Programmed

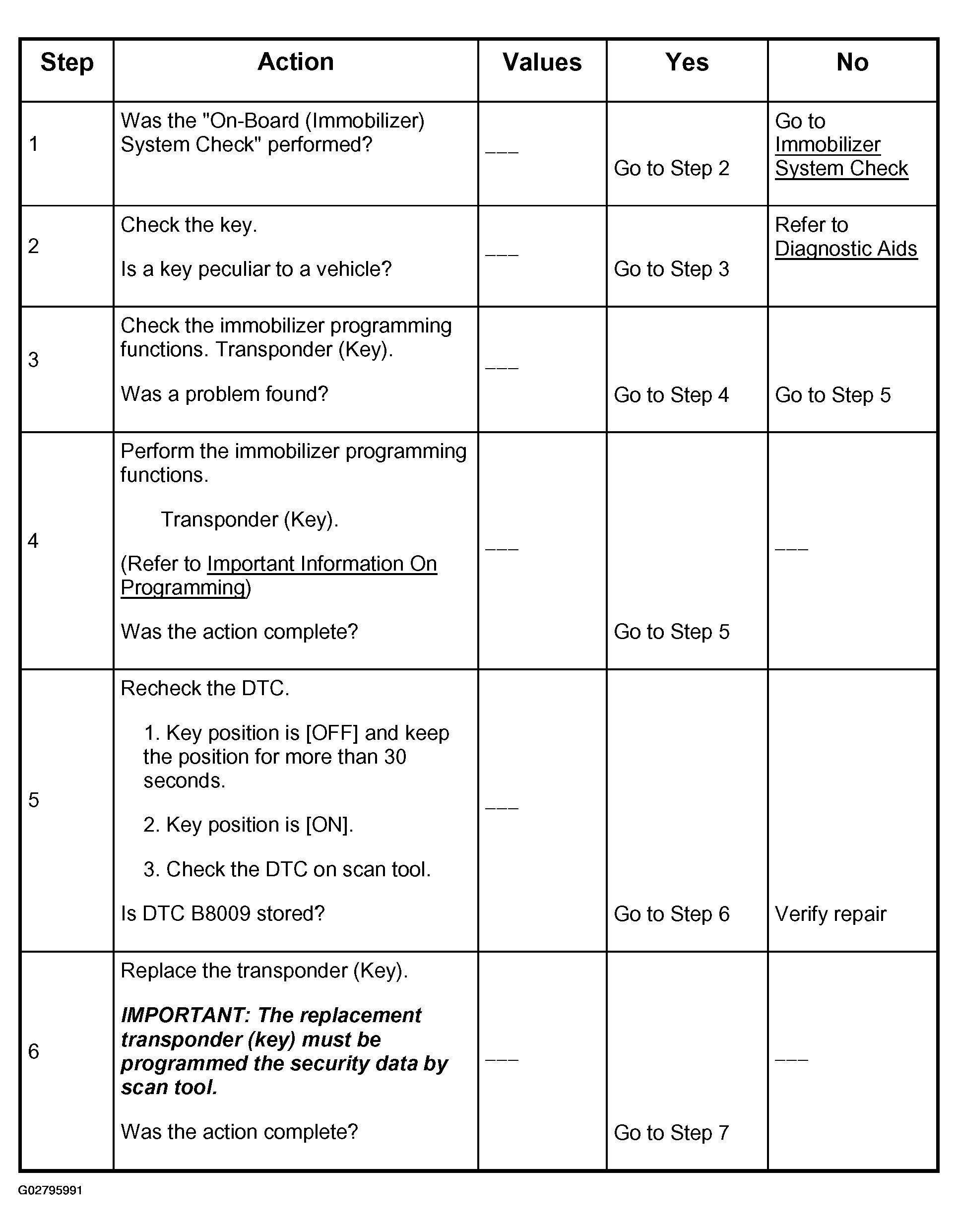

Fig 1: B8009 No Transponder Key Programmed Chart (1 Of 2)
G02795991Courtesy of ISUZU MOTOR CO.

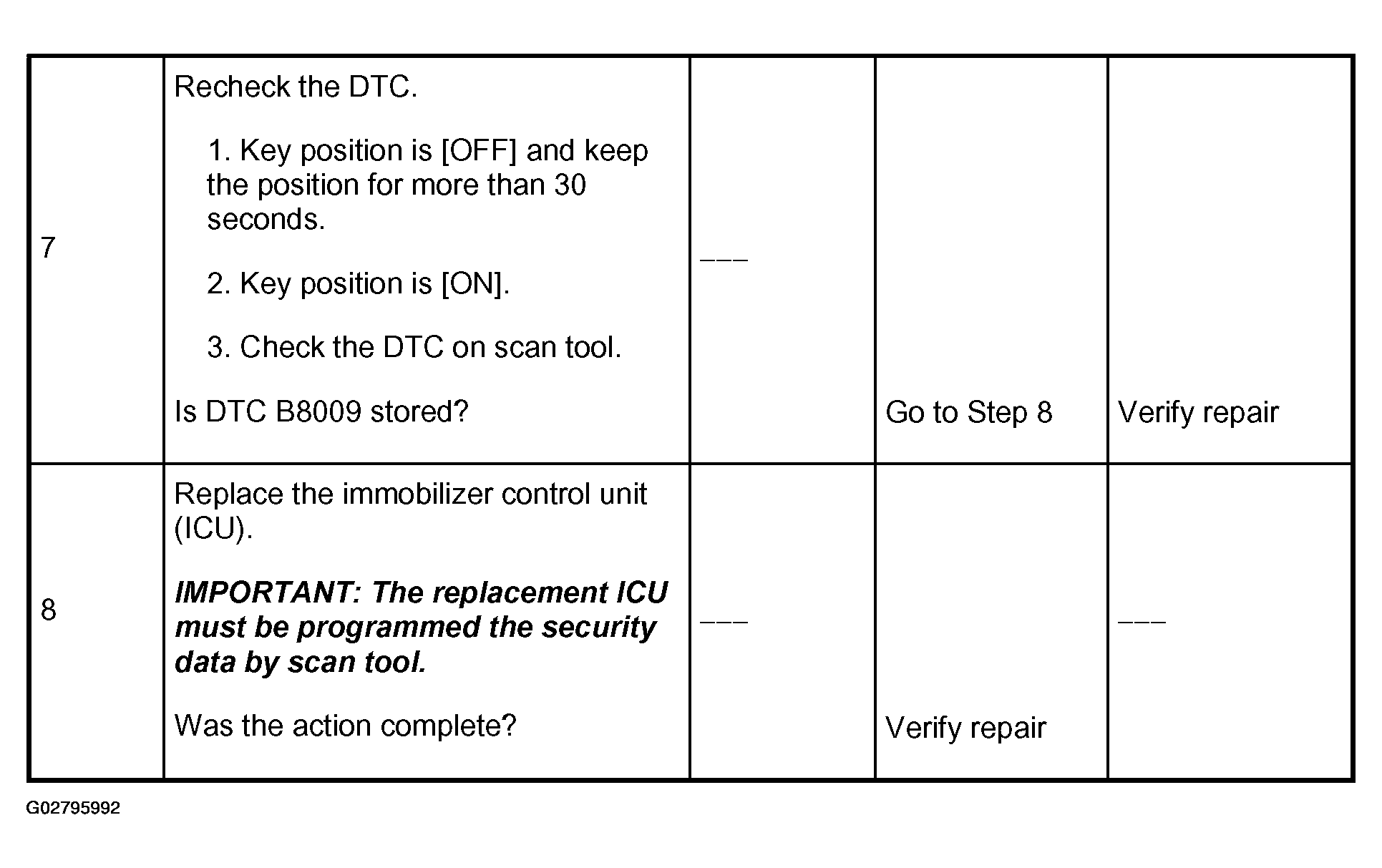

Fig 2: B8009 No Transponder Key Programmed Chart (2 Of 2)
G02795992Courtesy of ISUZU MOTOR CO.
