B8003 Transponder Key Problem
B8003 Transponder Key Problem

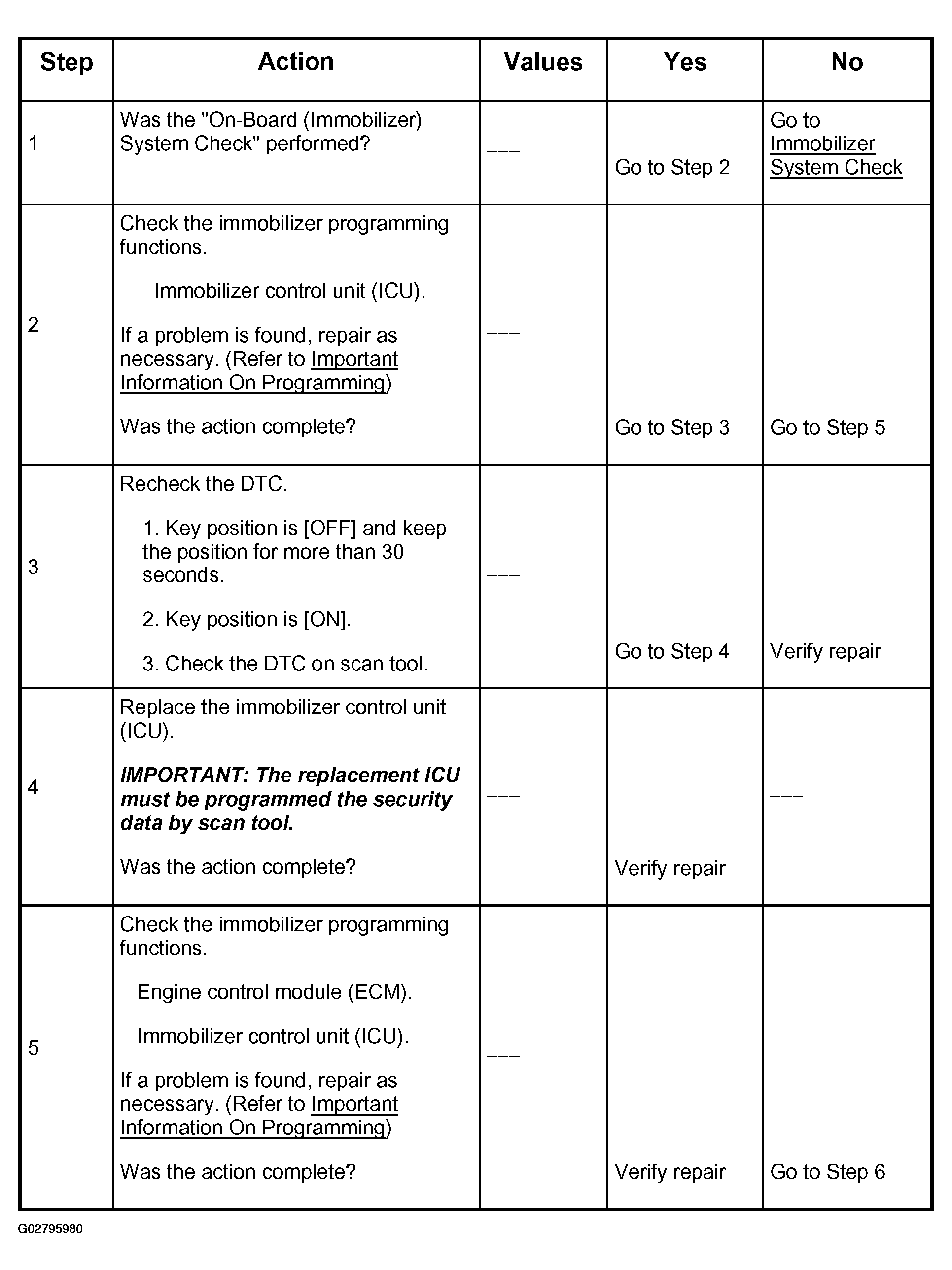

Fig 1: B8003 Transponder Key Problem Chart (1 Of 3)
Courtesy of ISUZU MOTOR CO.

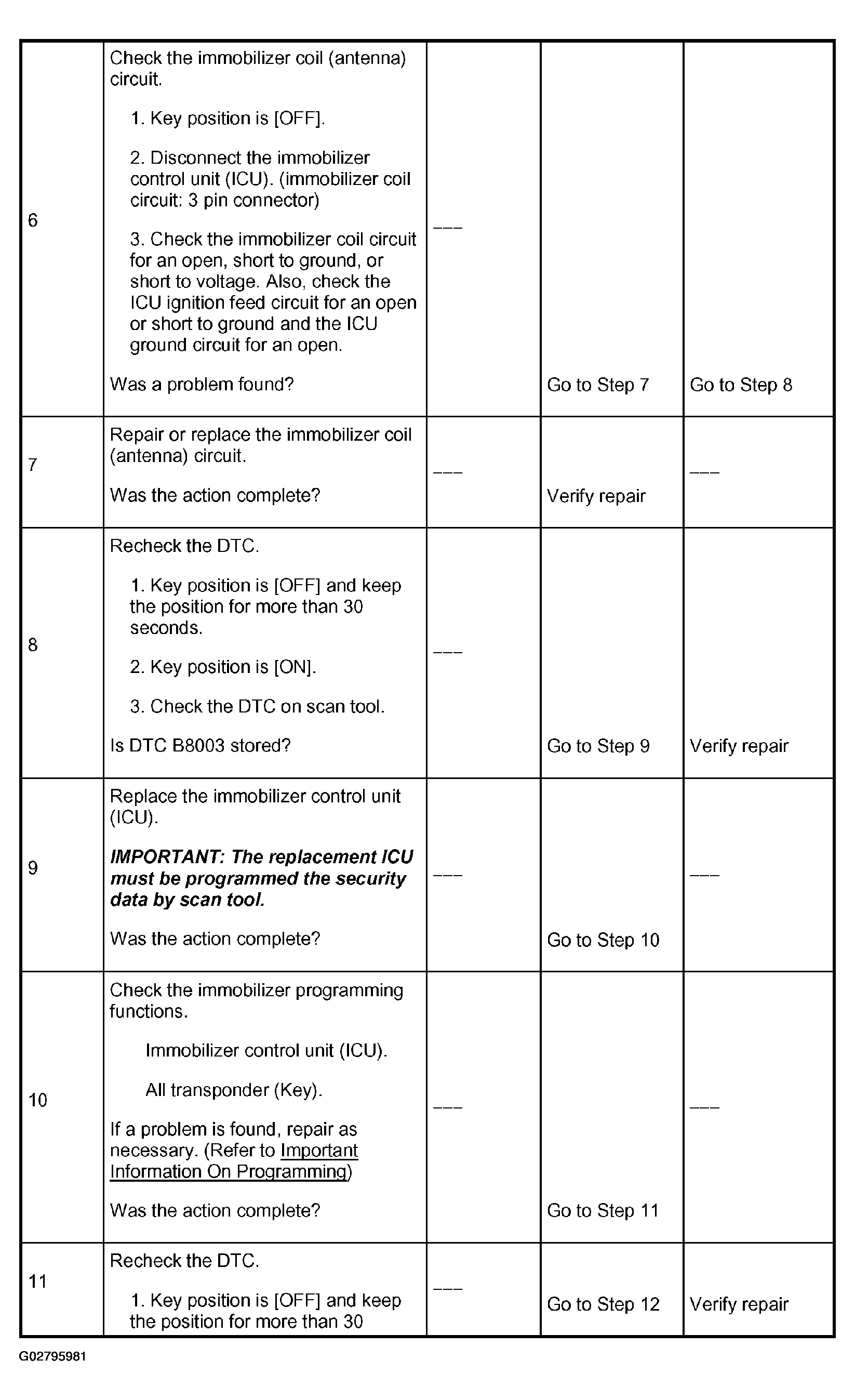

Fig 2: B8003 Transponder Key Problem Chart (2 Of 3)
Courtesy of ISUZU MOTOR CO.

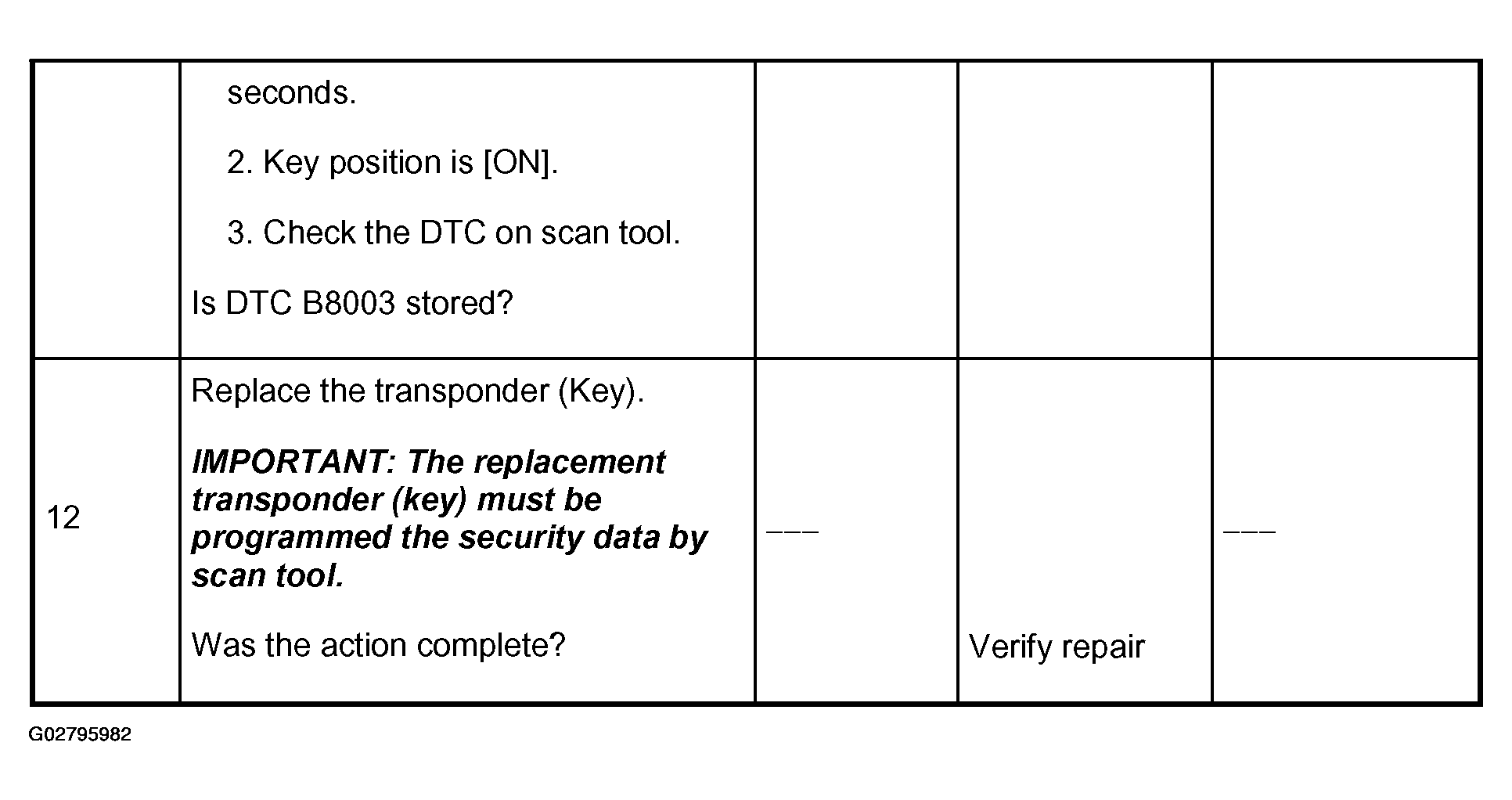

Fig 3: B8003 Transponder Key Problem Chart (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
