Cruise Control Main Switch: Removal

  1. Disconnect the battery ground cable.
  2. Remove the meter cluster assembly (1).
    • REFER TO THE INSTRUMENT PANEL ASSEMBLY .
  3. Remove the cruise control main switch (3).
    • Disconnect the switch connector.
    • To remove the cruise main switch, illumination controller and transfer switch assembly (2), push the lock from the back side of the meter cluster assembly.
    • Remove the cruise main switch from the back side of the switch assembly (2).

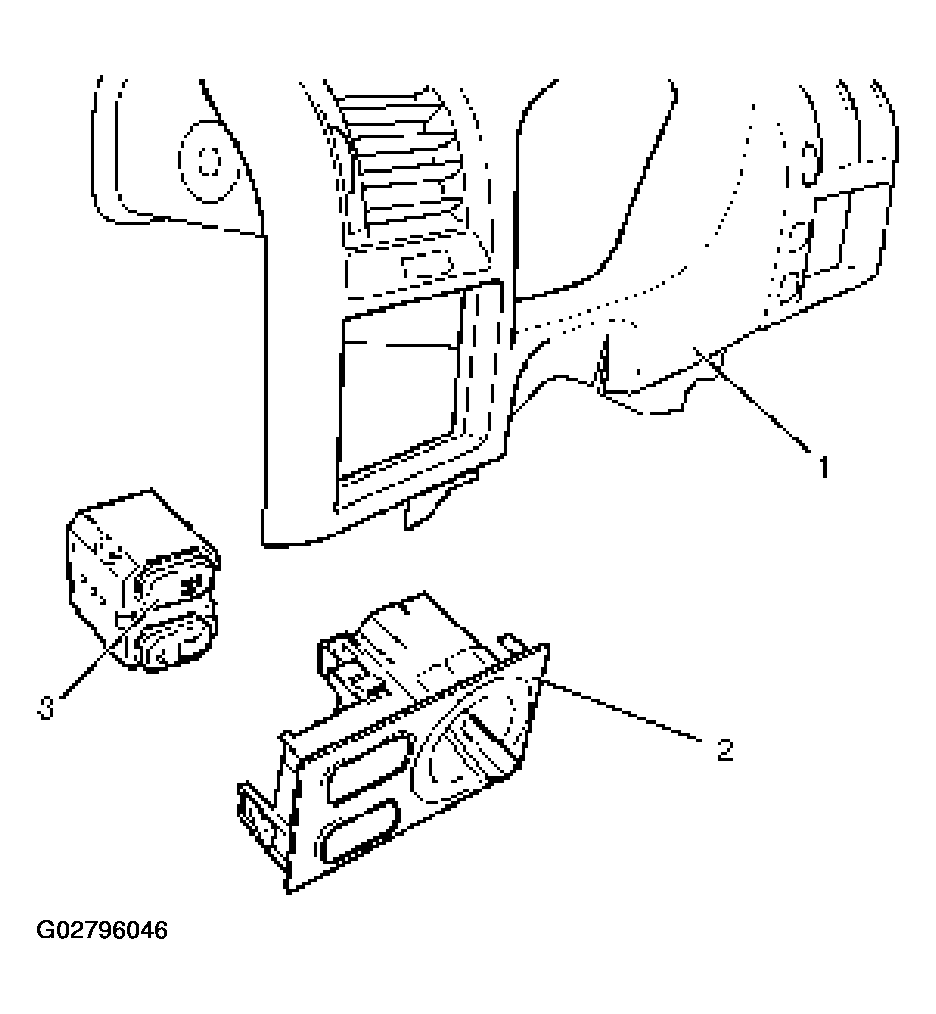

      Fig 1: Removing Cruise Control Main Switch
      G02796046Courtesy of ISUZU MOTOR CO.
