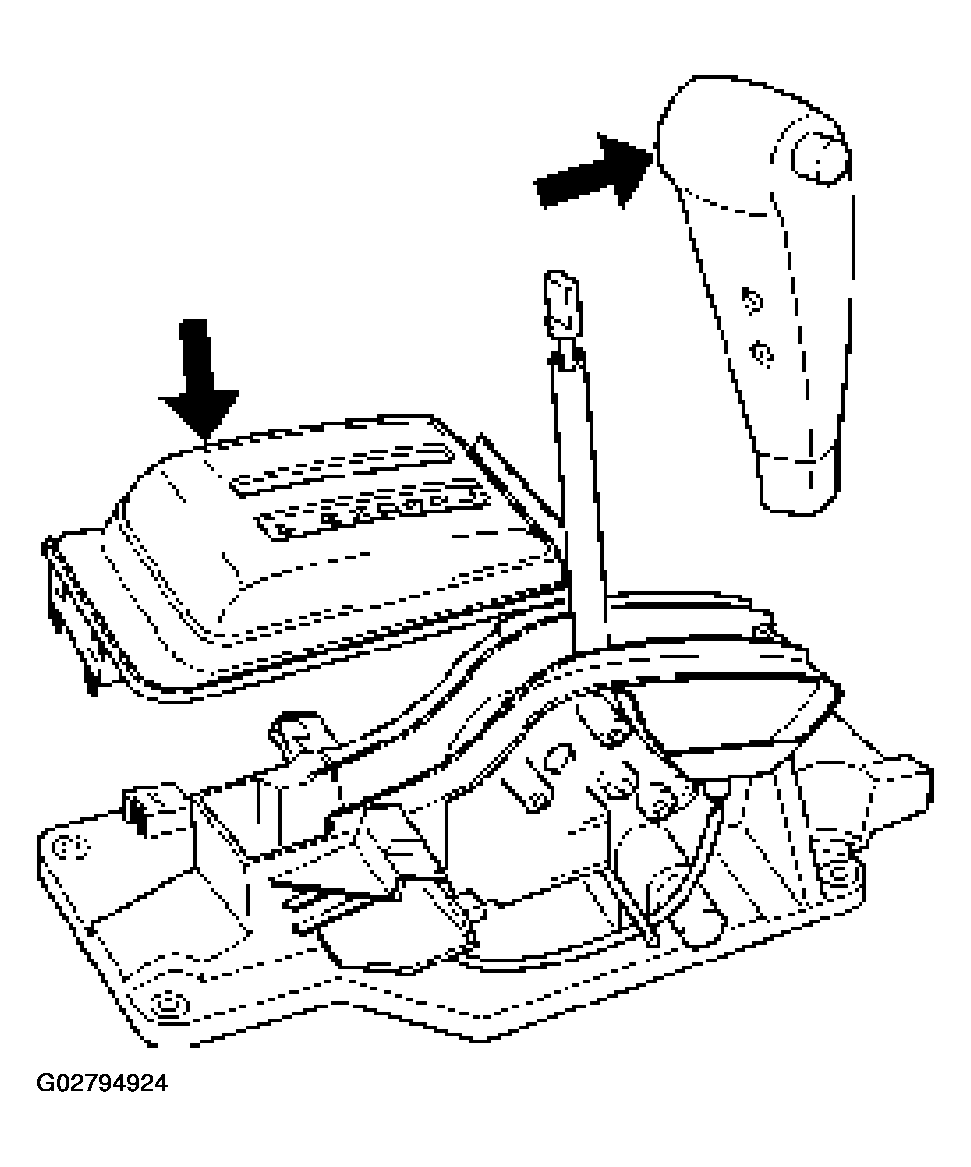

Selector Lever: Installation
- Install selector lever subassembly.
- Connect harness connector.
- Connect shift lock cable.
- Refer to SHIFT LOCK CABLE .
- Connect select cable.
- Refer to SELECT CABLE .
- Install selector lever knob and cover.
- Install front console and rear console assembly. Refer to CONSOLES .
- Connect negative (-) battery cable.
- After installation, make sure that the selector lever operates normally, and that each selector position is properly indicated. (The red mark shows through the window.)
