Isuzu
>>
2004
>>
Axiom XS, 4WD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Unit Inspection Procedure
>>
Chart C-1-1: FL Sensor Output Inspection Procedure
Chart C-1-1: FL Sensor Output Inspection Procedure

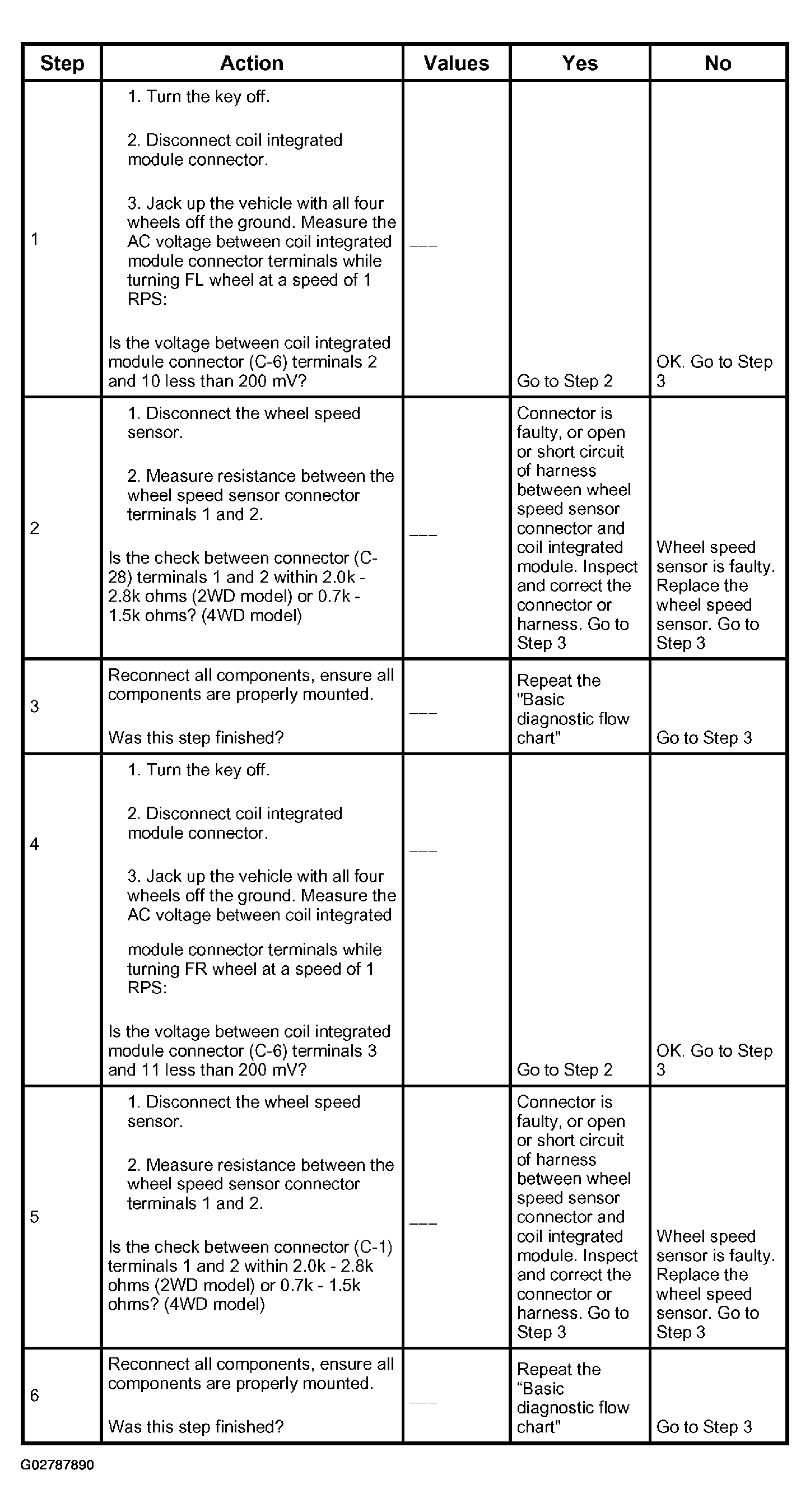

Fig 1: Unit Inspection Procedure Chart - FL Sensor Output Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
