Diagnostic Trouble Codes

Choose and trace an appropriate flowchart by the numbers listed below to find fault and repair.

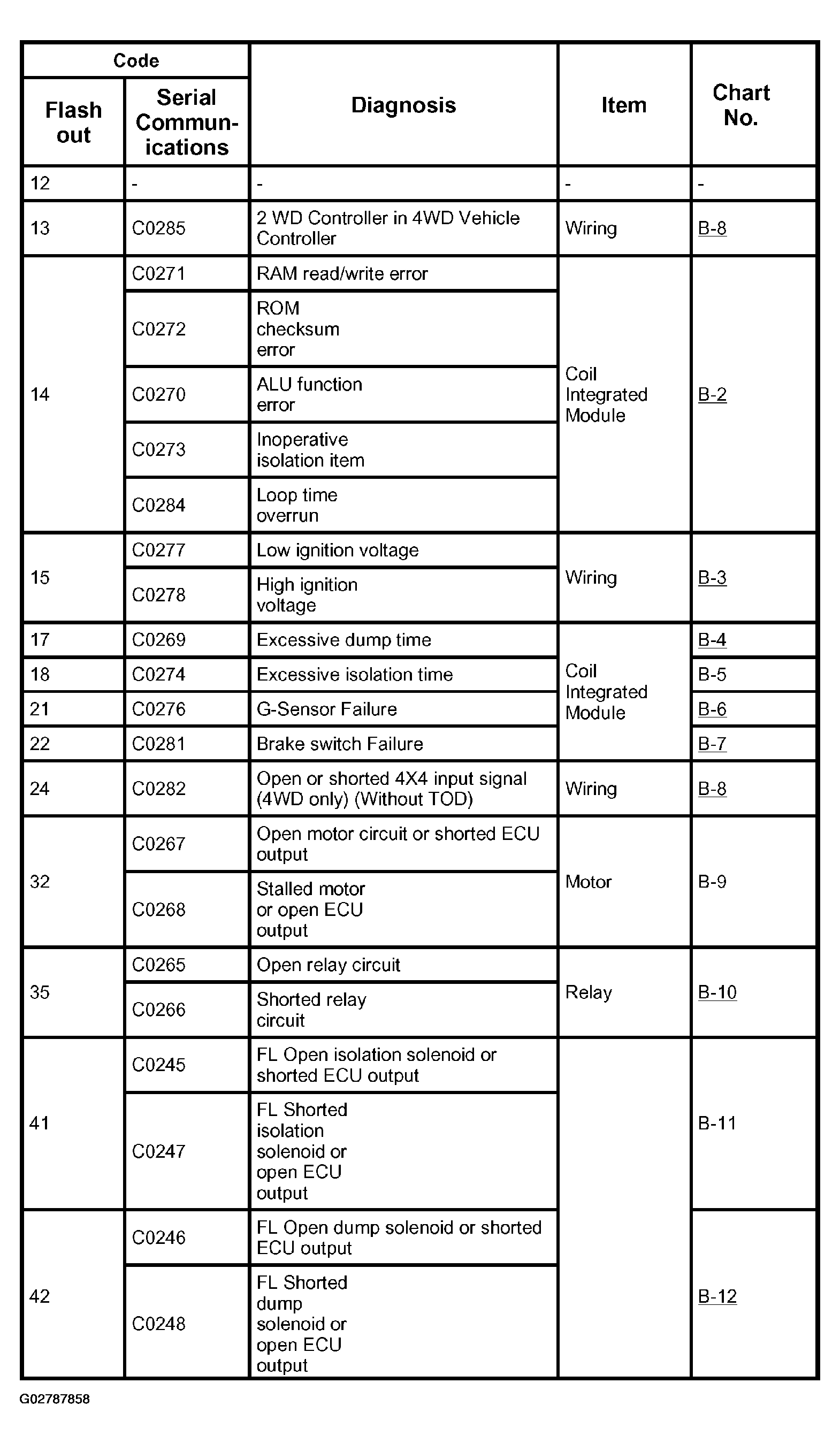

Fig 1: Diagnostic Trouble Code Chart (1 Of 2)
G02787858Courtesy of ISUZU MOTOR CO.

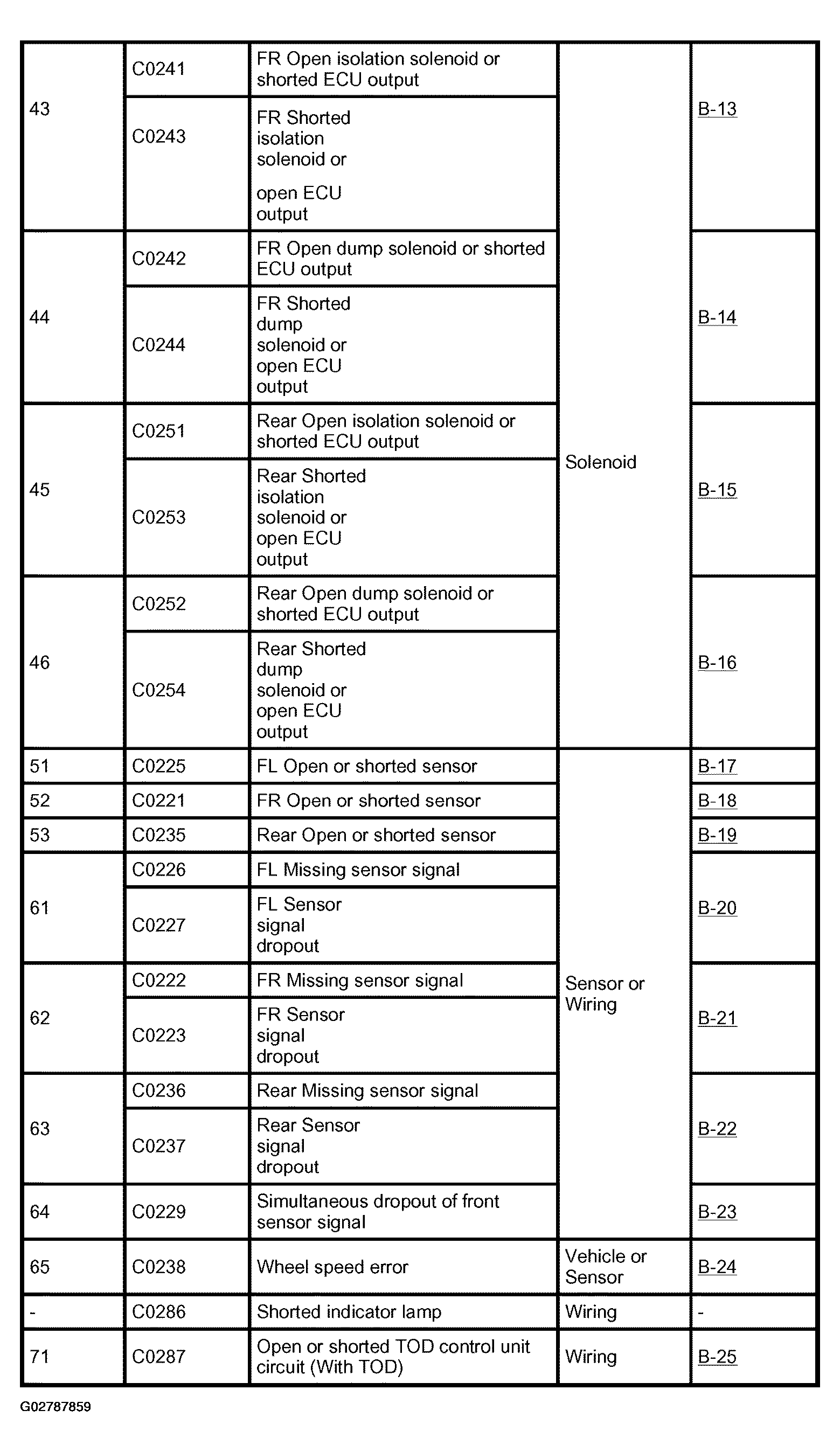

Fig 2: Diagnostic Trouble Code Chart (2 Of 2)
G02787859Courtesy of ISUZU MOTOR CO.
