Tech 2 Service Bleed

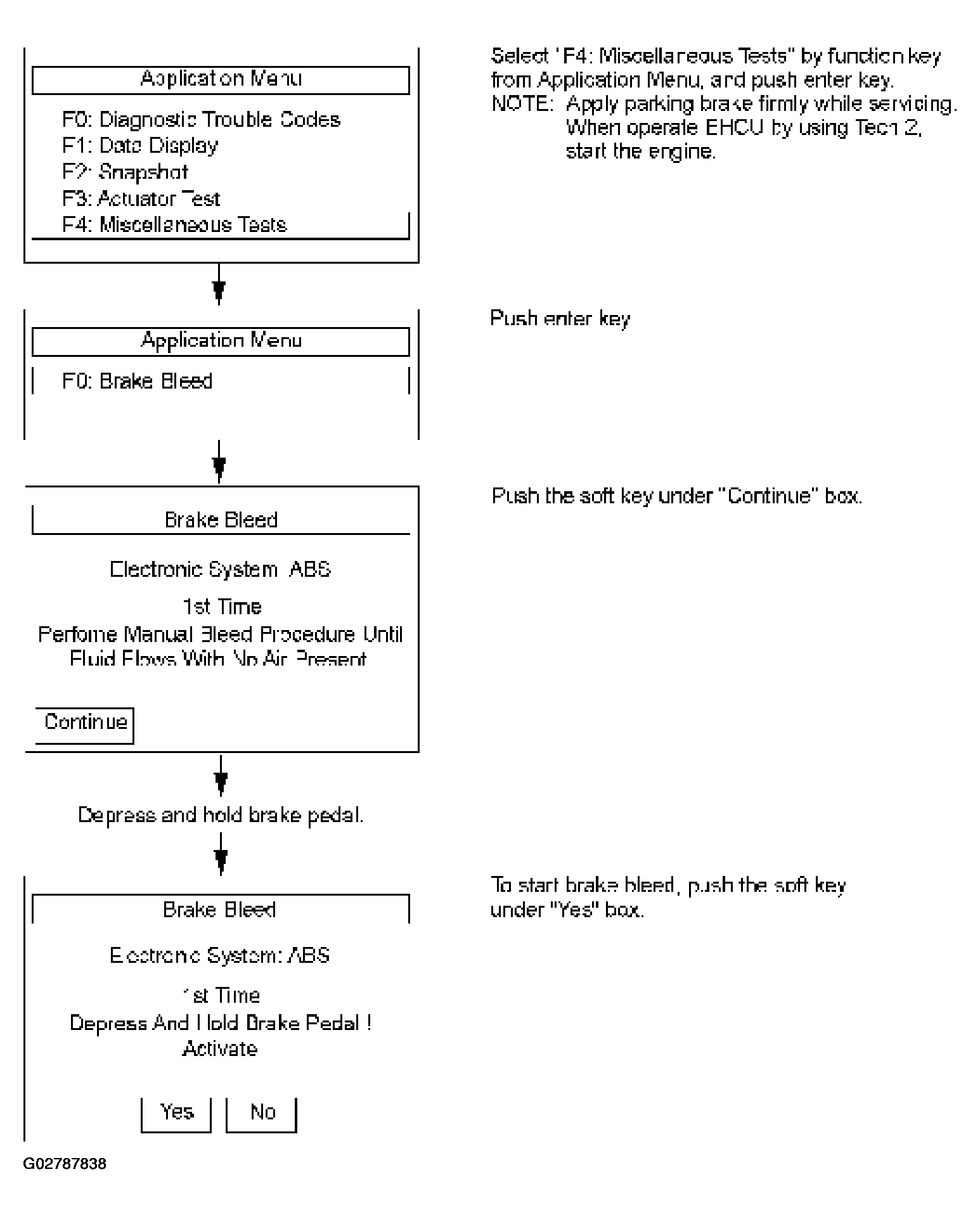

Fig 1: Tech 2 Service Bleed Flow Chart (1 Of 2)
Courtesy of ISUZU MOTOR CO.

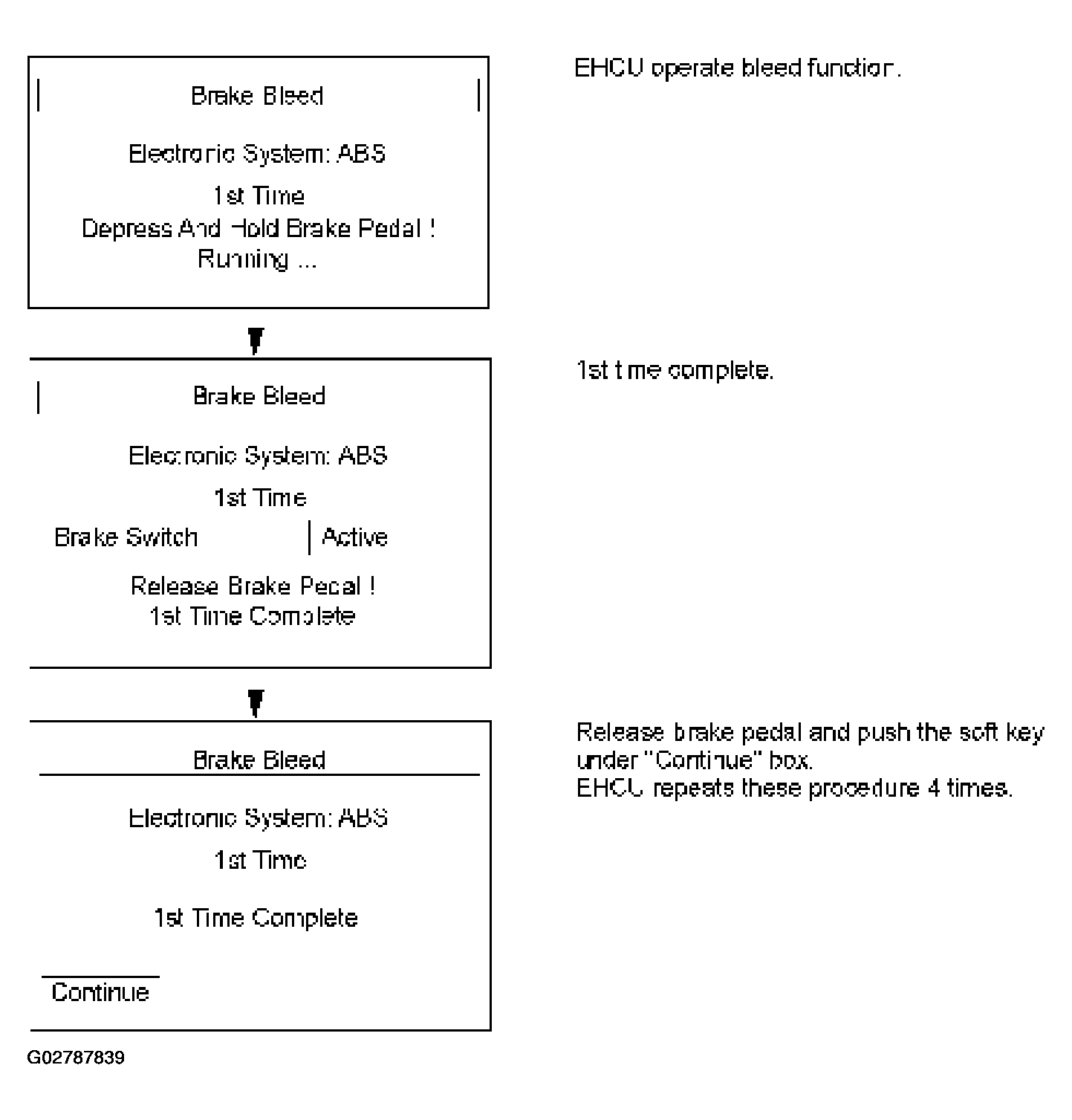

Fig 2: Tech 2 Service Bleed Flow Chart (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
