Data List
The data displayed by DATA LIST are as follows:

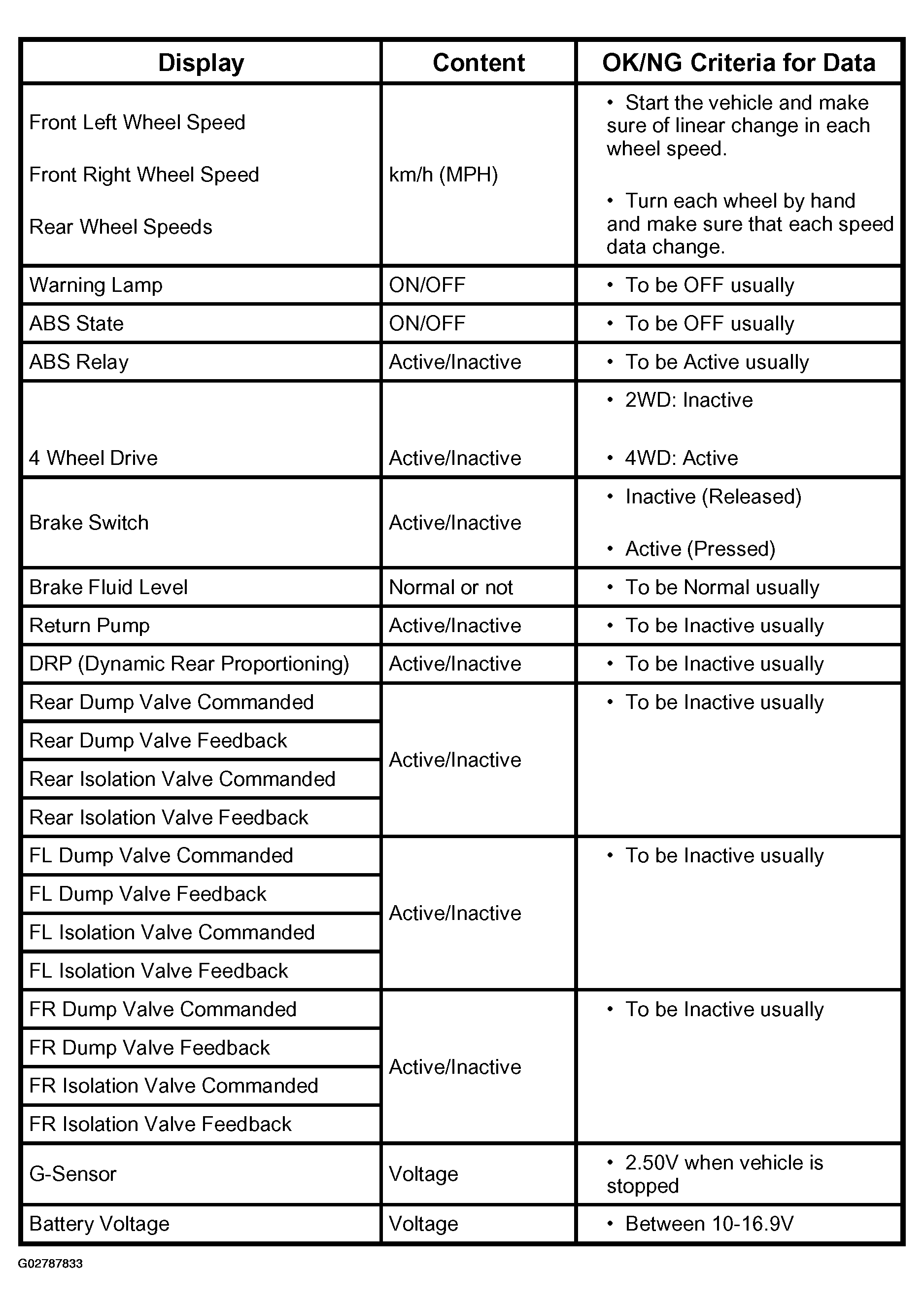

Fig 1: Data List
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
