Circuit Diagram
Circuit Diagram

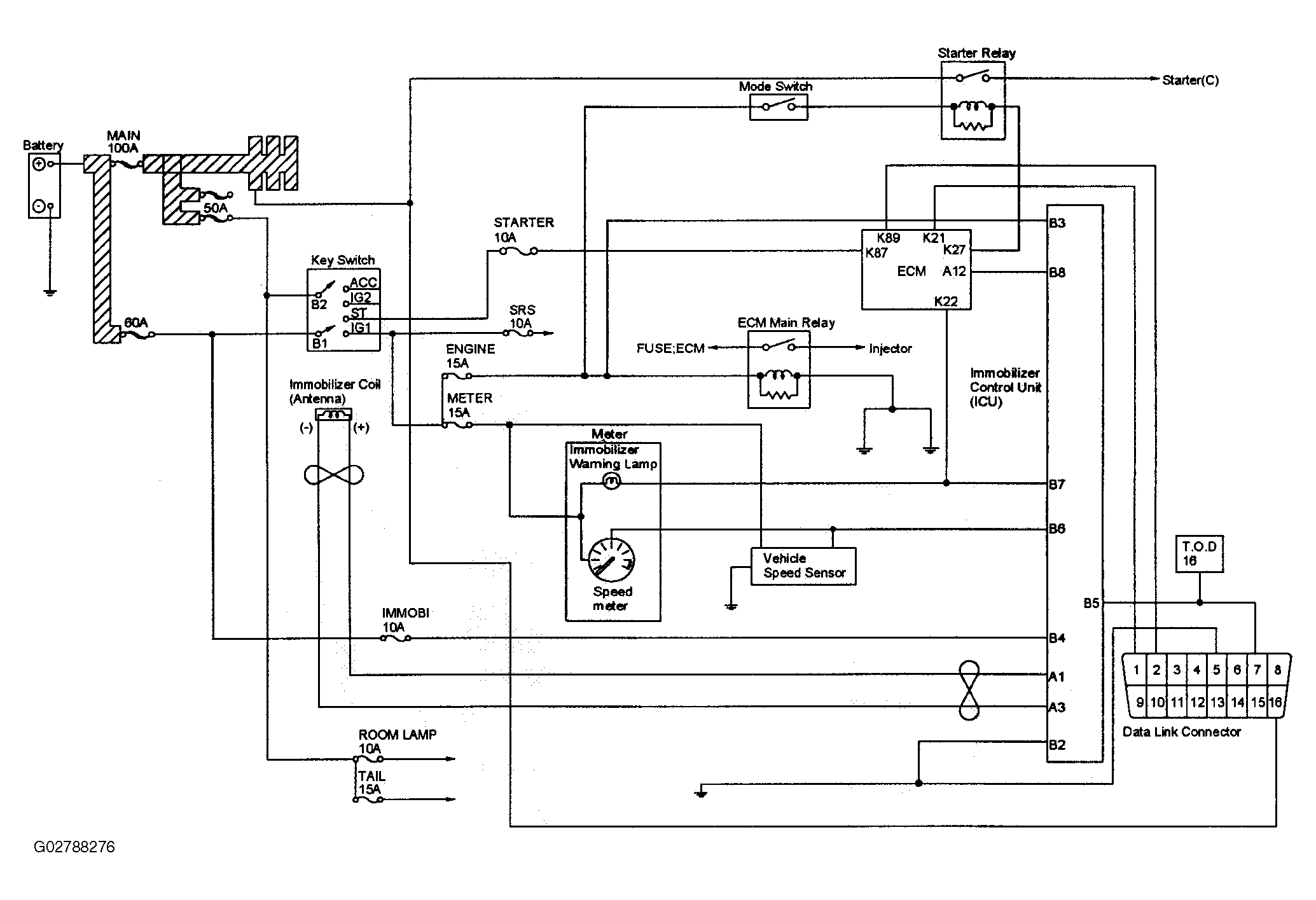

Fig 1: Circuit Diagram - Immobilizer System
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
