Coil Assembly

• Check the resistance of the coil with a tester. If defects are observed, replace the coil assembly.

Standard:  1.7.0.3. (at ordinary temperature)

Allowable limit:  1.0.5.0.

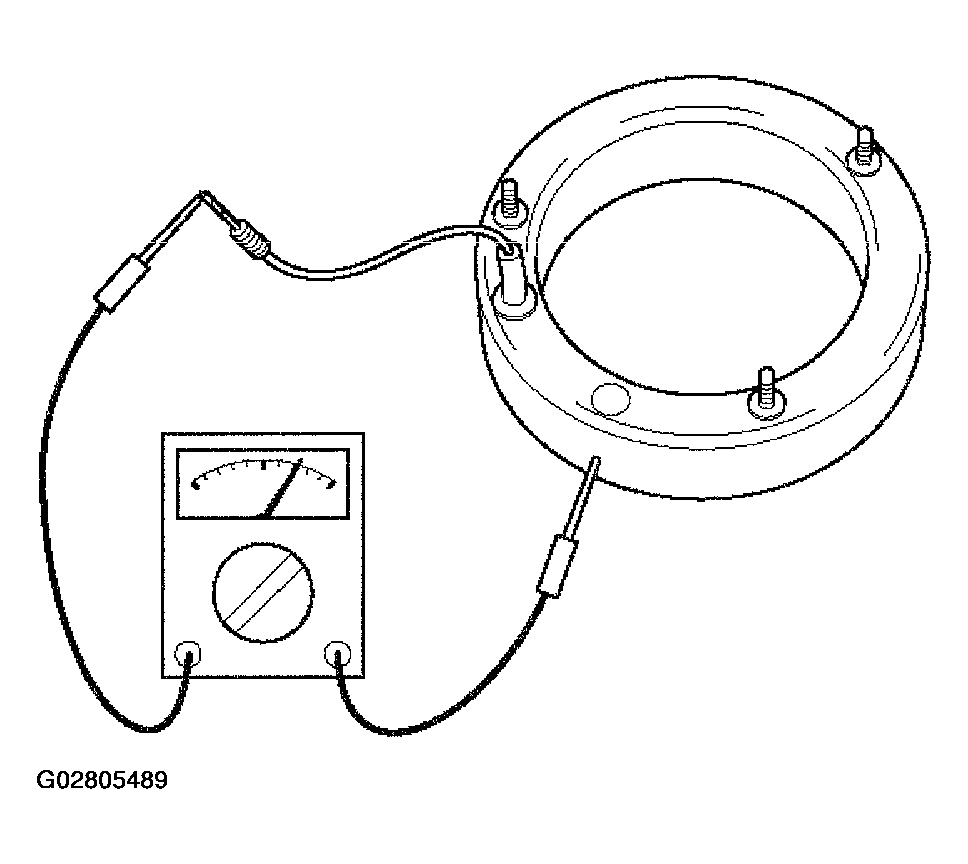

Fig 1: Checking Resistance Of Coil With A Tester

Courtesy of ISUZU MOTOR CO.
