DTC P1860: (FLASHING CODE 34) Torque Converter Clutch (TCC) Pulse Width Modulation Solenoid Fault: Notes

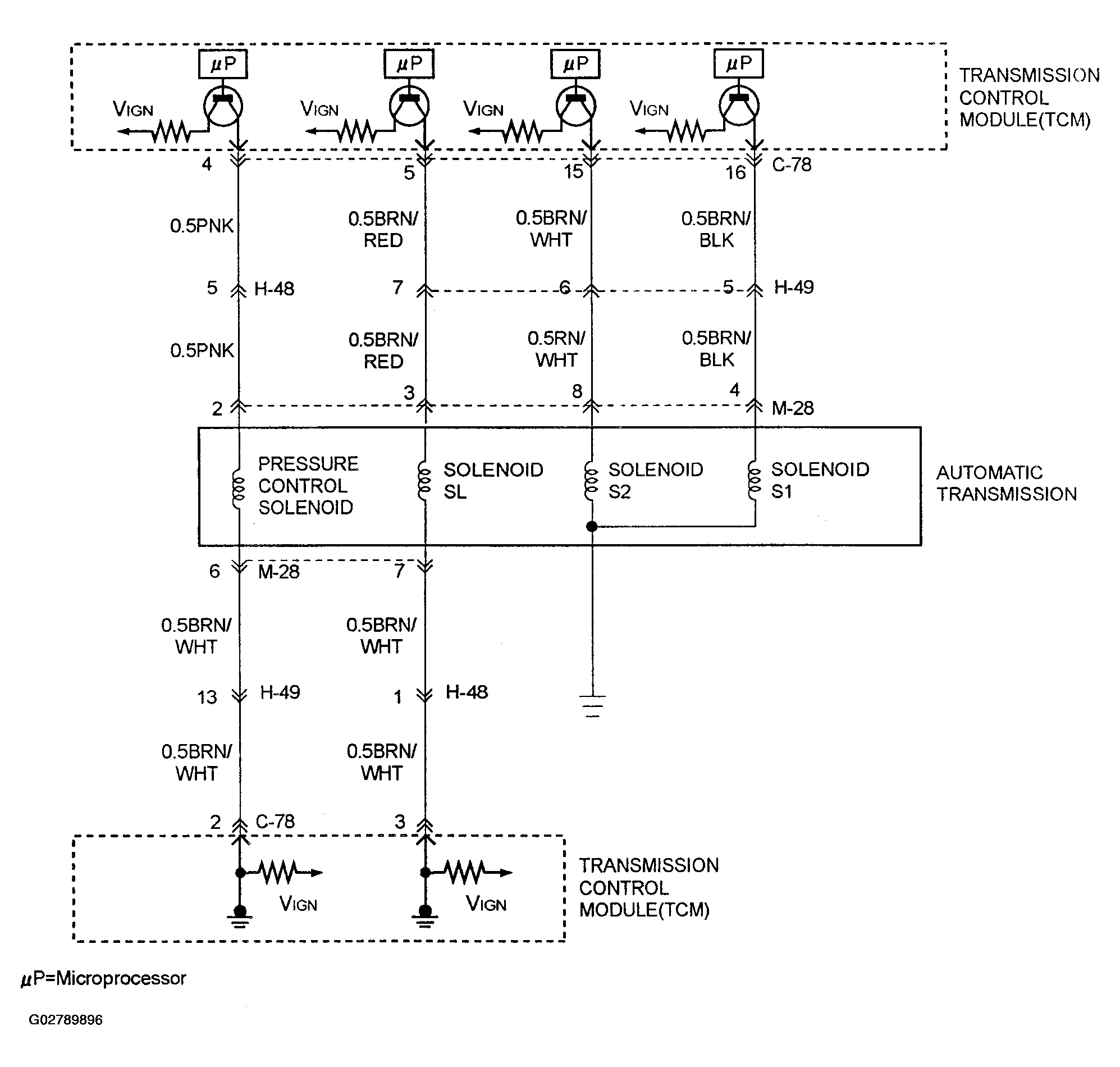

Fig 1: DTC P1860: (Flashing Code 34) Torque Converter Clutch (TCC) Pulse Width Modulation Solenoid Fault) Wiring Diagram
G02789896Courtesy of ISUZU MOTOR CO.
